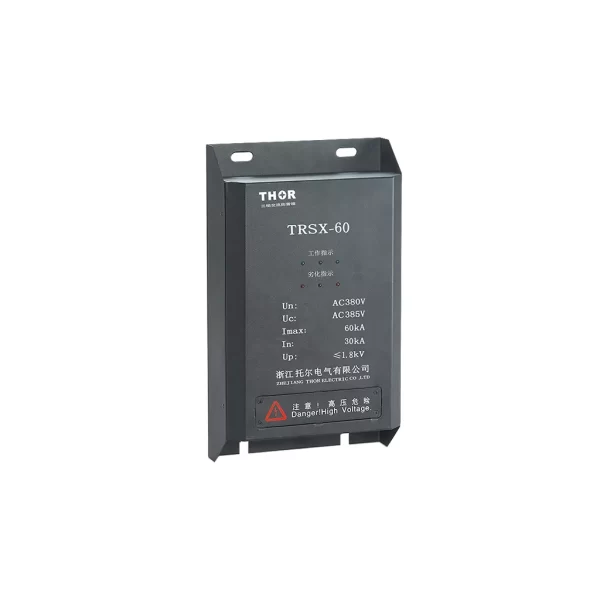

TRSX-60

TRSX-60 60kA AC Surge Protection Box 380V Type 2 L-PE N-PE

Main Features

Nominal discharge current (8/20μs) In: 30kA
Maximum discharge current (8/20μs) Imax: 60kA
Voltage Protection Level (Up): ≤2.0kV
Nominal Voltage (Un): 380V AC
Max Operating Voltage (Uc): 385V AC
Response Time: <25ns
Mode of Protection: L-PE, N-PE
Compliance: EN 61643-11:2012, IEC 61643-11:2011/T2

The TRSX-60 Type 2 AC Surge Protection Box provides enhanced surge discharge capacity for industrial power distribution systems.
With a maximum discharge current of 60kA, it offers a higher level of protection for environments exposed to frequent lightning activity.

Its robust metal enclosure and integrated Type 2 SPD modules make it suitable for continuous operation in demanding electrical environments.

Key Applications

- Industrial plants and factories
- Large commercial facilities
- Power distribution cabinets
- Electrical systems in lightning-prone areas

Parameter/Type	TRSX-60
Protected mode	L-PE, N-PE
Nominal voltage (Un)	380V AC
Maximum operating voltage (Uc)	385V AC
Nominal discharge current (8/20µs) (In)	30kA
Maximum discharge current (8/20µs) (Imax)	60kA
Voltage protection level (Up)	≤2.0kV
Response time (ta)	<25ns
The nominal cross-sectional area of the copper conductor for operation connection	Single or multiple stranded copper wire: 6mm²– 25mm²
Fault indication	red indication field
Degree of protection	IP20
Range of operating temperatures (min/max)	-40℃～+70℃
Humidity range	5%～95%
Mounting	Wall mounted installation
According to standard	EN 61643-11:2012, IEC 61643-11:2011/T2
Remarks	Other Uc can be customized.(420VAC, 385VAC, 320VAC, etc.)

White AC surge protection box size diagram

White three-phase AC surge protection box size diagram

White single-phase AC surge protection box size diagram
