Introduction
Ethernet and Power over Ethernet (PoE) networks are the backbone of our commercial, industrial, and security infrastructures in today’s hyperconnected world. In a modern logistics center, VoIP phones are on each desk, wireless access points are installed in the warehouse, office PCs are connected to the perimeter fence, and even industrial controllers control conveyor belts.
The foundation of contemporary efficiency and security is the complex web of connectivity. However, electrical surges—an unseen but potent adversary—constantly threaten this vital infrastructure. Operations can be instantly crippled by a single, microsecond-long surge. As a result, the question now becomes not whether your facility will experience a surge, but rather when and to what extent you will be prepared.
The importance of Ethernet surge protection for network dependability and business continuity is examined in this guide. The important question, “is ethernet surge protection necessary for your specific application?” will have a clear, fact-based response from us.
What is Ethernet and PoE surge protection?
From an electrical engineering standpoint, Ethernet surge protection is the advanced practice of intercepting and safely diverting harmful transient overvoltages away from sensitive network equipment before they can cause damage.

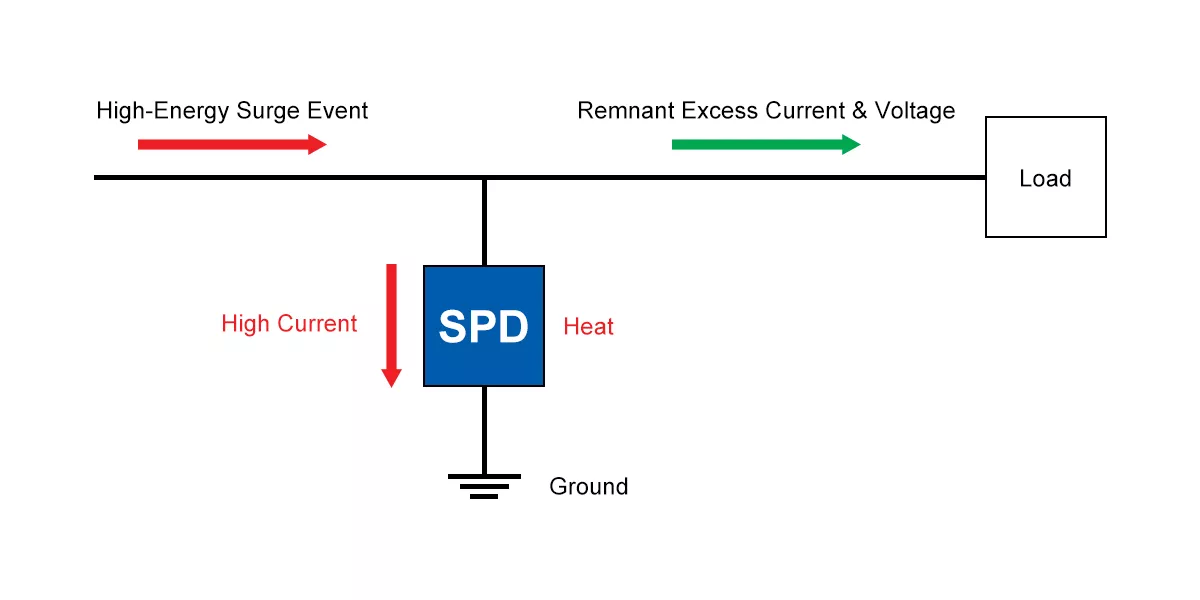

Figure 1 – SPD working principle
The goal is to manage the unwanted energy, providing it a safe path to a proper earth ground. The tool for this job is an Ethernet surge protection device (SPD). It is vital to understand that an industrial SPD is in a completely different class than a generic plug-in surge protector strip you might buy for a home office.
While a consumer protector often relies on a single, sacrificial component like a Metal Oxide Varistor (MOV) that degrades with each surge, a true industrial Ethernet surge protection device is a robust, multi-stage unit designed to handle high-energy events repeatedly and reliably. It provides dedicated ethernet power surge protection by incorporating a sophisticated circuit designed for long-term performance in harsh environments.
| Feature | Industrial Ethernet SPD (Your Product) | Consumer-Grade Surge Protector Strip |
| Core Technology | Multi-stage hybrid circuit (GDTs + TVS Diodes) | Single-stage, often just a simple MOV (Metal Oxide Varistor) |
| Lifespan | Designed for repeated, high-energy events; long service life | Sacrificial; MOV degrades with every surge, offering a finite and unknown lifespan |
| Protection Modes | Both Common Mode and Differential Mode protection | Typically only Common Mode, leaving data pairs vulnerable |
| Grounding | Dedicated ground lug for a low-impedance connection to earth ground | Relies on the building’s AC wiring for ground, which can be insufficient |
| Standards & Compliance | Designed and tested to standards like UL 497B or IEC 61643-21 | Typically only standard UL listing for AC power safety |
| Ideal Application | Protecting critical infrastructure, industrial controls, outdoor PoE devices | Protecting non-critical home office electronics from minor power grid fluctuations |
Table 1 – Comparison table: industrial SPD vs. consumer surge protector
To effectively protect a network, one must first understand the sources of the damaging surges, which can be broadly categorized as external and internal.
● Lightning Strikes: This is the most powerful and destructive source. A direct strike is catastrophic, but even a strike hundreds of meters away can induce immense voltage (thousands of volts and amps) onto long runs of copper cabling, turning them into conduits for destructive energy.
● Utility Power Faults & Switching: The electrical grid itself is a dynamic system. Events like a tree falling on a power line, or routine grid switching by the utility company to manage load, can create powerful, low-frequency transients that propagate through a facility’s entire electrical system and find their way onto network lines.
● Electrical Switching Transients: Within a facility, the starting and stopping of large electrical loads—such as elevators, HVAC systems, welders, pumps, and variable frequency drives (VFDs)—can generate a constant barrage of high-frequency surges on the local electrical network, which can easily cross over to data lines.
● Electrostatic Discharge (ESD): In dry or high-static environments, a person simply walking across a floor can build up a significant static charge. Touching a network cable or connected device can cause a discharge powerful enough to destroy the sensitive semiconductor components within network ports.
● Ground Loops: A more subtle but equally damaging source occurs when interconnected equipment is referenced to different ground points (e.g., in two separate buildings). If these ground points have a difference in electrical potential, a damaging current can flow constantly through the shield of the Ethernet cable, degrading performance and eventually causing equipment failure.
Why ethernet networks are vulnerable to surges
Ethernet networks possess inherent physical characteristics that make them uniquely vulnerable to surge damage. The very design that makes them efficient for communication can also turn them into unwitting conduits for destructive energy. Long runs of copper ethernet cable, for instance, are highly effective antennas. Governed by the principles of electromagnetic induction, a long wire passing through a changing magnetic field—such as that created by a nearby lightning strike—will have a current induced upon it.
The vulnerability is dramatically amplified by the widespread adoption of Power over Ethernet (PoE). The need for effective power over ethernet surge protection has become paramount as more devices are installed in electrically exposed locations. An IP security camera mounted on a metal pole on a building’s roof is, in effect, a small lightning rod. It is exposed to the elements and provides a direct path for a surge to enter the building’s network. That surge can travel down the cable to destroy the network switch, or a surge originating from the building’s power system can travel up the cable to destroy the camera.
Figure 2 – Complex power over ethernet configuration
The inherent vulnerability poses a significant business risk across numerous critical sectors. In industrial automation, where protocols like EtherNet/IP are standard, network downtime can halt a production line, costing thousands of dollars per minute. In security and surveillance, the loss of video feeds from a surge creates a massive liability and blind spot. In telecommunications and building management, surges can knock out vital communication links, HVAC controls, and access control systems, disrupting operations and compromising safety.
Is Ethernet surge protection necessary?
For any individual managing critical infrastructure, the answer to this question is a definitive and resounding yes. The better question to ask is, “What is the cost of doing nothing?” We have worked with clients who learned this lesson the hard way, replacing an entire rack of network switches after a single thunderstorm or spending days troubleshooting a “phantom” issue on a production line that was ultimately traced back to surge-degraded Ethernet ports. The cost of failure is not simply the price of the hardware; it is a cascade of direct and indirect expenses:
● Direct Hardware Costs: The obvious expense of replacing fried cameras, switches, PLCs, access points, and computer network cards.
● Labor and Troubleshooting Costs: The often-hidden cost of paying technicians or engineers to diagnose the problem, locate all the failed components (which can be spread across a large facility), and perform the replacements and re-configurations.
● Downtime and Operational Costs: For most businesses, this is the most significant cost by far. This includes lost production, lost sales revenue, idle-worker salaries, and potential contractual penalties for missing deadlines.
● Data Loss and Recovery Costs: The cost and effort required to restore corrupted data from backups, assuming reliable backups were even maintained.
So, is ethernet surge protection necessary for every single connection? A risk-based approach provides a clear answer. Protection is absolutely necessary for any Ethernet cable that runs outdoors, between buildings, underground, or is connected to any exposed equipment. It is also ess ential for long cable runs (e.g., over 30 meters or 100 feet) inside electrically noisy industrial environments and for any connection to mission-critical or high-value equipment.
Protection is highly recommended for vital connections within a single building, as internal surges are common. The only scenario where it might be considered optional is for short, simple patch cables connecting a standard office PC to a nearby wall jack.

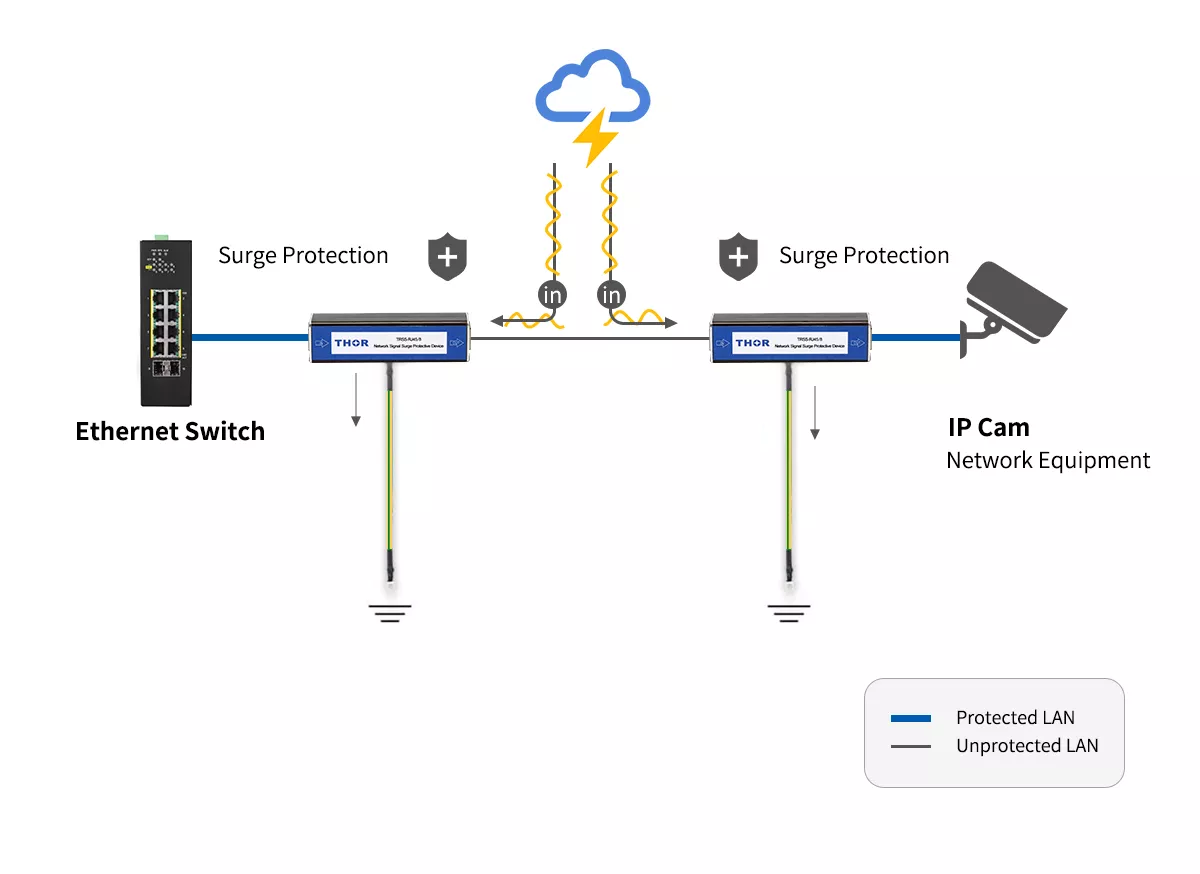

Figure 3 – Protected and unprotected LAN on Ethernet networks
However, even in this low-risk scenario, the cost of a single quality SPD is often less than the cost of a single IT service call to diagnose a failed network port. Ultimately, deciding if ethernet surge protection is necessary is a simple exercise in risk management. If the potential cost of failure is greater than the modest cost of a professional SPD, the investment is not just wise—it’s essential.
Types of Ethernet surge protection devices
A true SPD designed for Ethernet and Power over Ethernet protection is defined by its internal engineering and the sophistication of its ethernet surge protection circuit. Unlike single-stage protectors, high-reliability SPDs use a multi-stage, hybrid design to handle the full spectrum of electrical threats.
When a high-energy surge arrives at the device’s input, it first encounters the primary protection element, typically a Gas Discharge Tube (GDT). GDTs are the workhorses, capable of handling immense surge currents (thousands of amps) from events like lightning. When the voltage rises above its designed threshold, the inert gas inside the GDT ionizes, creating a virtual short circuit that diverts the vast majority of the surge’s energy safely to ground.
While powerful, GDTs can take several microseconds to activate. In that brief window, a portion of the surge, known as the “let-through voltage,” can pass. This is where the secondary stage, composed of fast-acting Transient Voltage Suppressing (TVS) Diodes, comes into play. The solid-state components react in nanoseconds, clamping this residual voltage down to a level that is safe for the sensitive electronics of the network device.
Furthermore, a professionally designed SPD protects against both Common Mode and Differential Mode surges. Common Mode surges occur when voltage on the signal wires rises simultaneously relative to the ground reference, while Differential Mode surges occur as a voltage difference between the wires of a twisted pair.

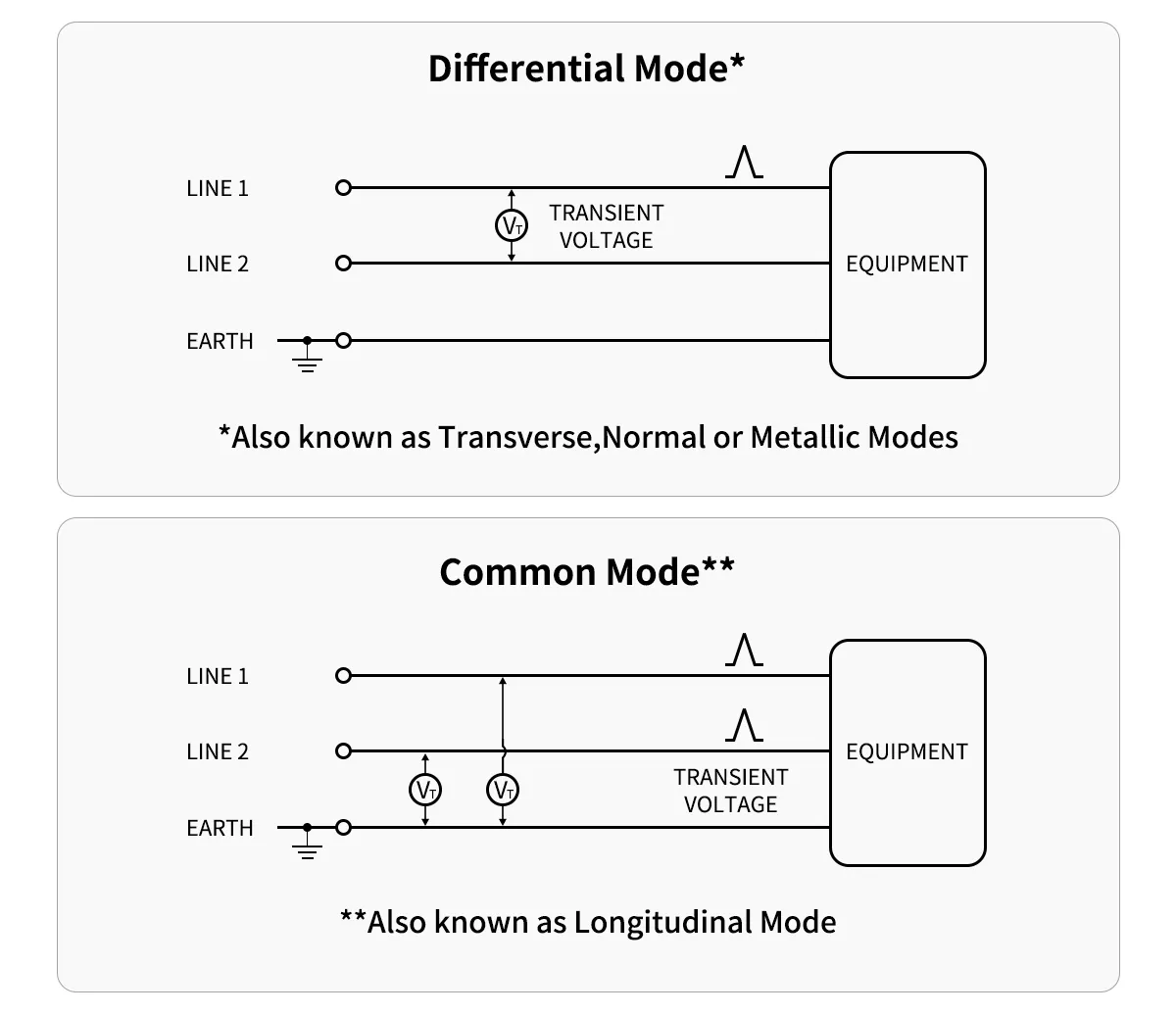

Figure 4 – Differential mode and common mode in surge protection
If you skip out on protecting against both surge types, you risk data corruption—even if your hardware makes it through the hit. In PoE setups, you really need to go for a dedicated Ethernet surge protector designed for PoE. No shortcuts there.
Choosing the right Ethernet and PoE surge protection devices
When it comes to surge protection for Ethernet and PoE, it’s not just about grabbing a single device off the shelf. You need to think bigger: build a layered, well-thought-out system tuned to your environment and the gear you’re safeguarding.
Start by getting a clear picture of your setup. Look at what matters: how fast your data needs to move, whether you’re running Power over Ethernet, and what kind of place you’re installing everything in. These details point you straight to the right choice.
We take pride in our product lineup. Every THOR RJ45 SPD we make supports 100/1000M adaptive network speeds. They cover all eight pins in a standard Ethernet cable (1,2,3,6,4,5,7,8), and they meet the tough EN61643-21/IEC61643-21 international standards.
Think data centers or those packed network closets with racks full of switches, routers, and servers. The real problem there is protecting lots of ports without eating up all your rack space. That’s exactly where our TRSS-RJ45 Rack-mounted Series comes in. These units slide right into standard 19-inch racks and protect up to 24 Ethernet ports in one tidy chassis. So, instead of wrestling with a pile of single SPDs, you drop in one rack-mounted unit and instantly shield a whole switch. It frees up space, keeps wiring neat, and makes maintenance a breeze.
TRSS-RJ45-24 Rack-mounted Network Signal Surge Protective Device
In contrast, consider the electrically noisy environment of an industrial control panel on a factory floor. Here, Ethernet is used to connect PLCs, HMIs, and other sensitive machinery, often housed within NEMA enclosures on standard DIN rails.
Our TRSS-RJ45/8 DIN Rail Surge Protective Device is engineered specifically for this demanding setting. The integrated DIN rail mounting allows for secure and seamless integration into existing control panels alongside breakers, power supplies, and other industrial components.
Ethernet surge protective device TRSS-RJ45/8 series
Perhaps the most common modern challenge is protecting distributed and outdoor PoE devices, such as a security system with IP cameras and wireless access points mounted on building exteriors. These devices are highly exposed and require a layered, two-point protection strategy for true security.
The first point of defense should be near the device itself. For clusters of cameras or in areas with poor lightning protection infrastructure, like towns or mountainous regions, our compact TRSS-RJ45/4 or TRSS-RJ45/8 Network Signal Surge Protective Devices are perfect. They can be installed within a weatherproof junction box, providing robust, localized protection right at the most vulnerable point.
TRSS-RJ45/4 /8 Network Signal SPD series
The second point of defense is crucial: where that same Ethernet cable enters the building, a second SPD must be installed to stop the surge from propagating through your internal network. Here, you could use a TRSS-RJ45/8 DIN Rail model inside a utility panel or route the cable back to a switch protected by our TRSS-RJ45 Rack-mounted unit.
A truly comprehensive protection strategy recognizes that modern systems rarely rely on Ethernet alone. A complete security or control system may also use other communication methods that are equally vulnerable. Our portfolio extends to these critical signal lines as well. Our TRSS-485 Control Signal Surge Protective Device is designed to protect RS-485, RS-232, and other control loops common in building automation and industrial SCADA systems. For systems with analog CCTV, satellite feeds, or radio antenna connections, our family of Coaxial SPDs provides robust protection with models available for all major connector types, including BNC, F-Type, N-Type, TNC, SMA, UHF, and FL10.
TRSS-485 Control Signal SPD TNC type Coaxial SPDs
Finally, it is critical to understand that even the best Ethernet or signal line SPD is designed to be the final, precision line of defense for your sensitive electronics. For a truly robust system, these “point-of-use” devices must work in concert with upstream power SPDs in a strategy known as cascaded or coordinated surge protection. A Type 1 SPD at your building’s main service entrance diverts the immense energy of a major lightning event. Downstream Type 2 SPDs at distribution panels handle any remaining energy and suppress surges generated within the facility. By the time a transient reaches your network cabling, these upstream devices have already absorbed the vast majority of its destructive power.

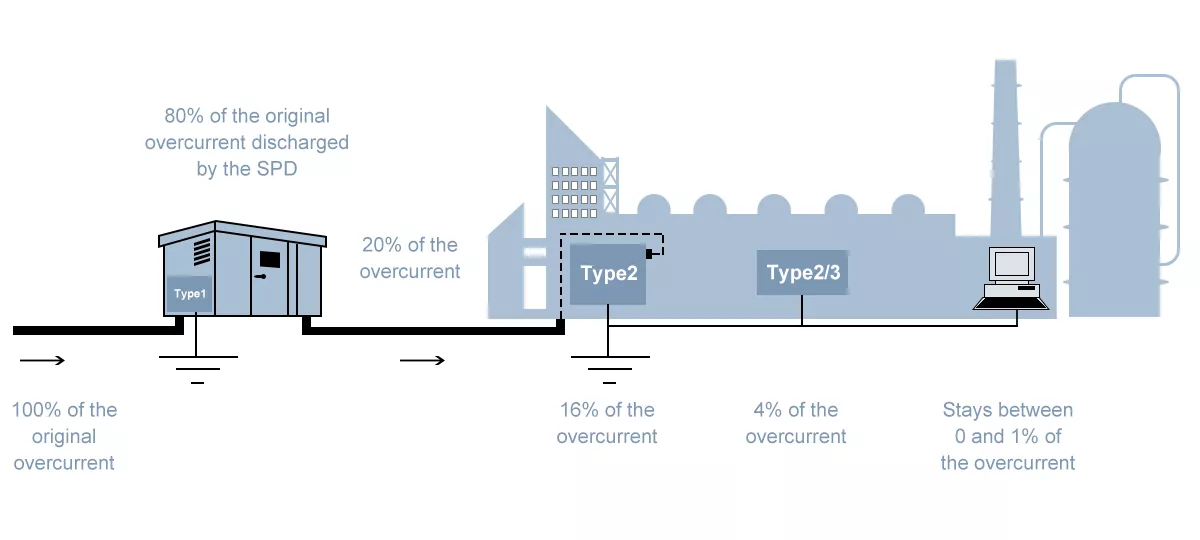

Figure 5 – Attenuated surge energy in cascaded surge protection
Our Ethernet SPDs are then perfectly positioned to clamp the small amount of residual “let-through” voltage to a safe level. By combining facility-wide power protection with our specialized signal and data line SPDs, you create a meshed, defense-in-depth system that provides true peace of mind.
