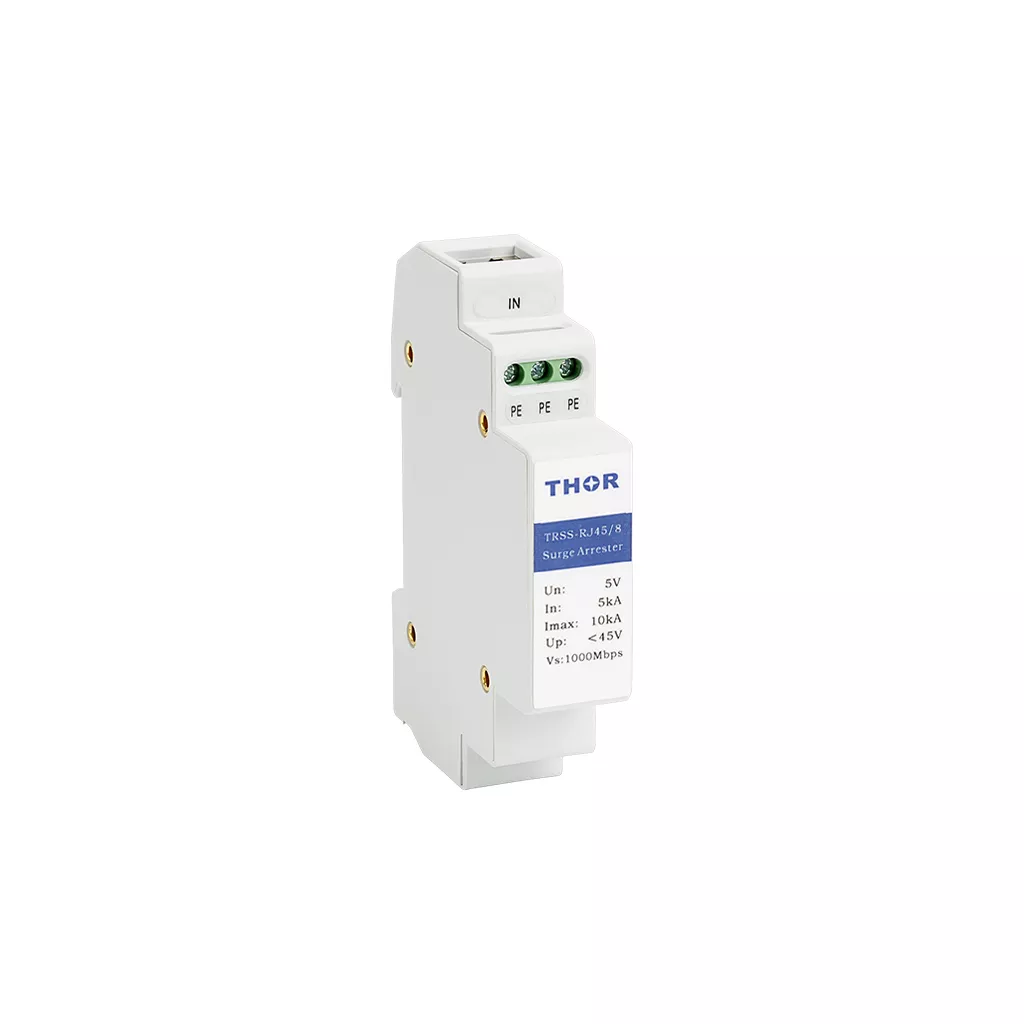

Din Rail TRSS-RJ45/8

TRSS-RJ45-8 Compact Din Rail PoE Surge Protector for Industrial Control

Main Features

Application: Data Networks and Gigabit Ethernet
Form Factor: Single Port, DIN Rail Mount
Data Rate Support: 1000Mbps (Gigabit Ethernet)
Mode of Protection: Line-Line, Line-PE
Max. Operating Voltage (PoE): 57Vdc
Surge Discharge Ratings: In (L-L): 5kA, In (L-PE): 10kA
Voltage Protection Level (L-L): 60V
Voltage Protection Level (L-PE): 500V
Series Load Current: 1A
Connection: RJ45 Socket
Pinning Protection: All 8 lines protected (Data: 1/2/3/6, PoE: 4/5/7/8)
Compliance: EN 61643-21:2012, IEC 61643-21:2011

The TRSS-RJ45/8 is a high-performance, compact PoE surge protector optimized for modern Industrial Control environments and Power over Ethernet systems. It provides comprehensive 8-line protection across all pins, covering both Gigabit Data (1/2/3/6) and PoE (4/5/7/8) power paths. Its space-saving 35mm Din Rail design allows for rapid integration into dense server racks and high-speed routers, safeguarding them against severe transient overvoltages. As a Cat6-compliant surge protection device, it supports data rates up to 1000Mbps with a minimal insertion loss of ≤ 0.1dB.

Applications:

Industrial control systems requiring compact, high-density PoE protection.
Gigabit Ethernet (LAN) and Cat6 network system protection.
Integrated wiring systems for both power and high-speed network signal protection.
High-speed server equipment and mission-critical workstation intranet security.

Model	TRSS-RJ45/8
In accordance with	IEC 61643-21, EN61643-21
Pin 1/2/3/6 data input Voltage Un :	5Vdc
Pin 1/2/3/6 PoE Voltage :	48Vdc
Normal discharge current (8/20μS). : In	5kA
Max discharge current (8/20μS). : Imax	10kA
Voltage protection Level (V)	45V
Insertion loss	≤0.5dB
Response time	Instantaneous
Transmission Speed	10/100/1000Mbps
Type of connection In/Out	RJ45
Connection Type	Series
Protective line	Data:1/2/3/6; PoE:4/5/7/8
Material	PA66
Weight (kg.)	0.09
Operating temperature range	-40℃ to +70℃
Environmental protection	IP20
