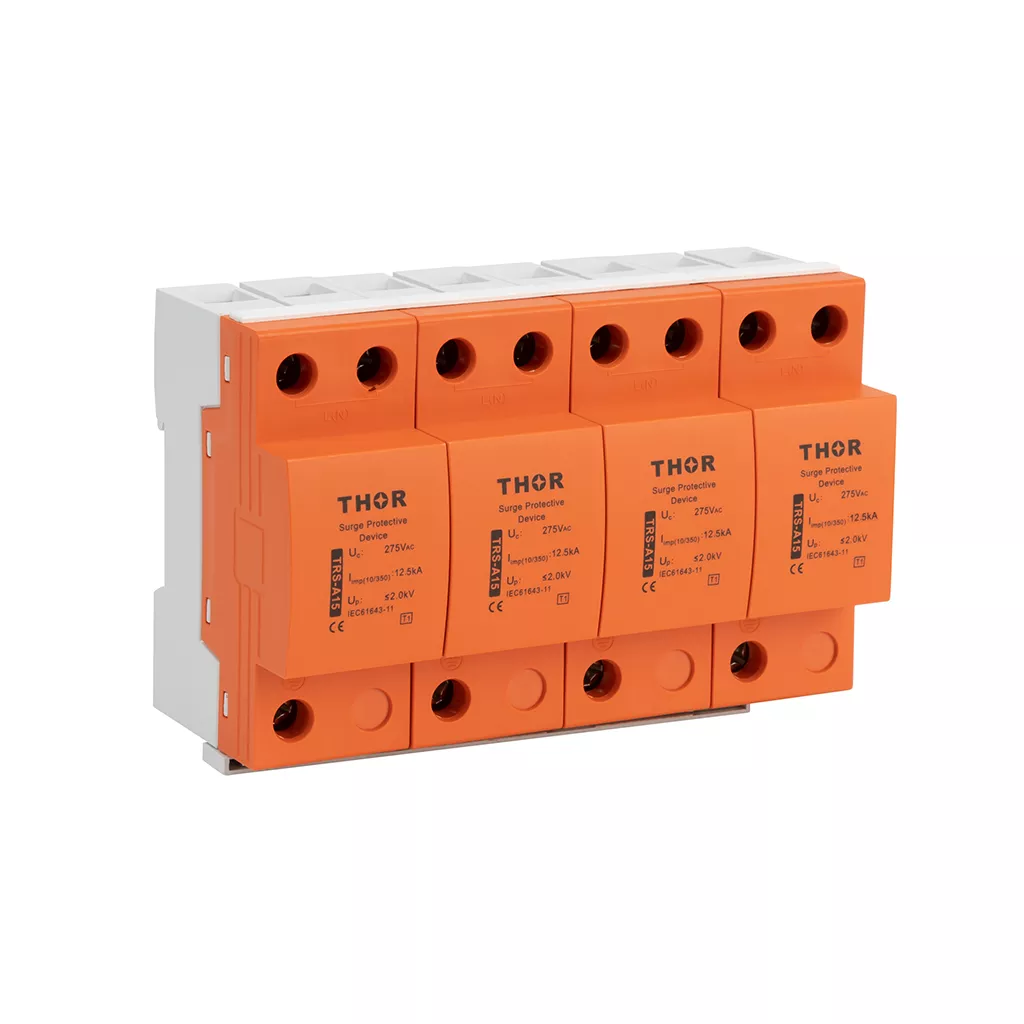

THOR TRS-A12 4p 12.5kA Type 1 AC surge protection device

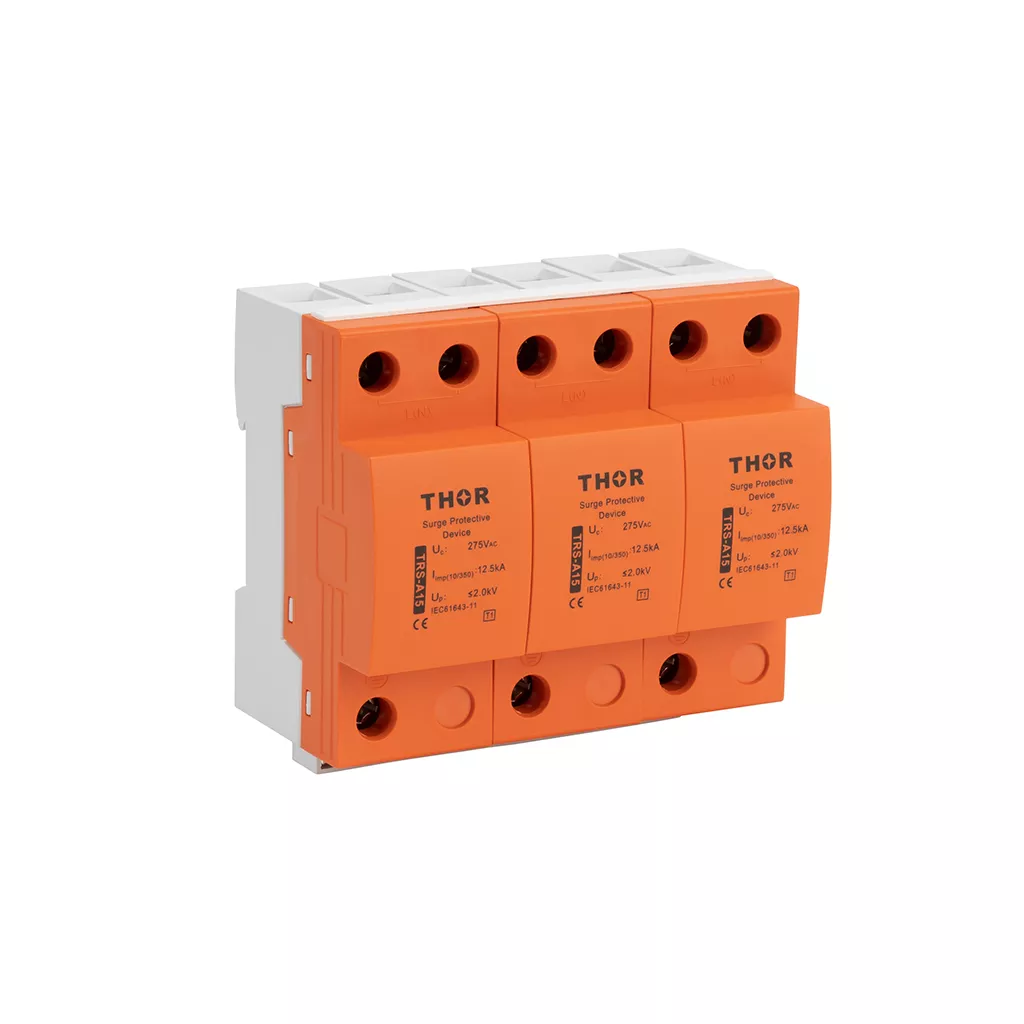

THOR TRS-A12 3p 12.5kA Type 1 AC surge protection device

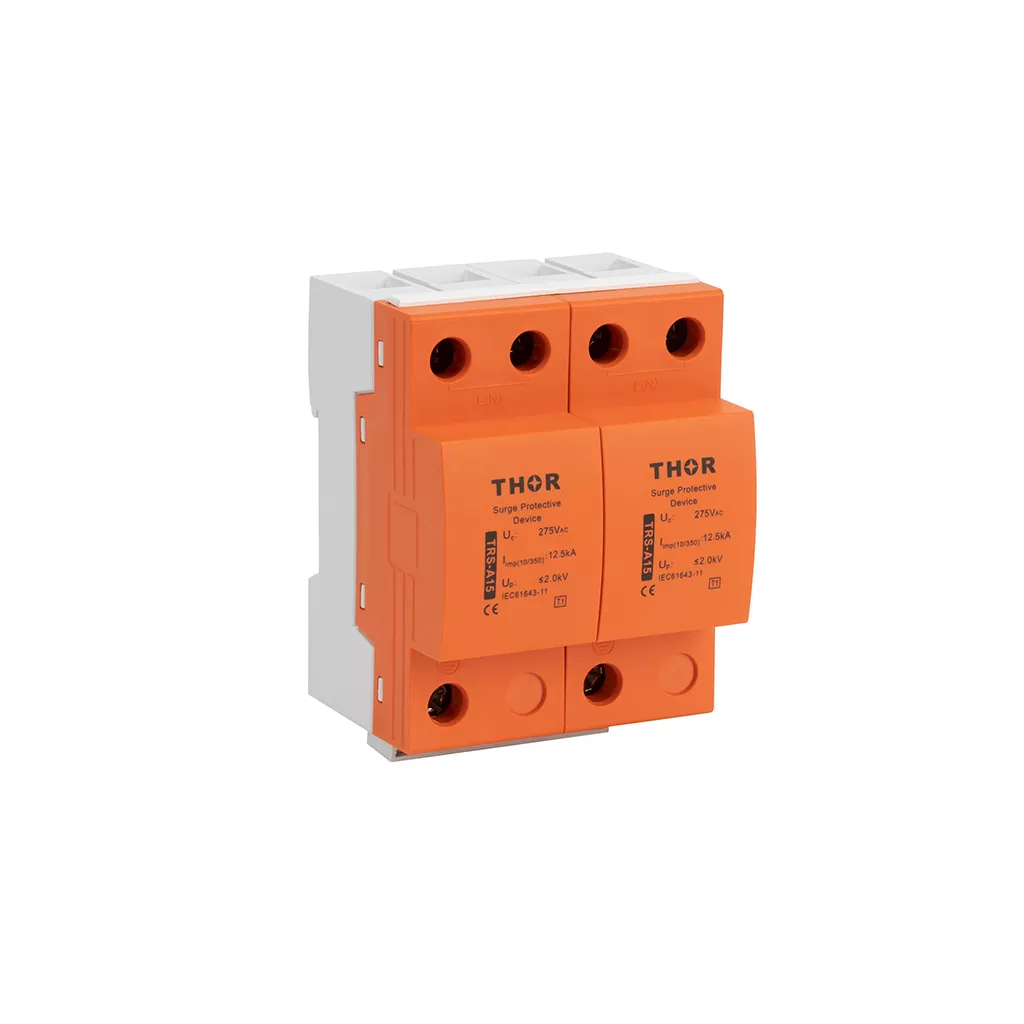

THOR TRS-A12 2p 12.5kA Type 1 AC surge protection device

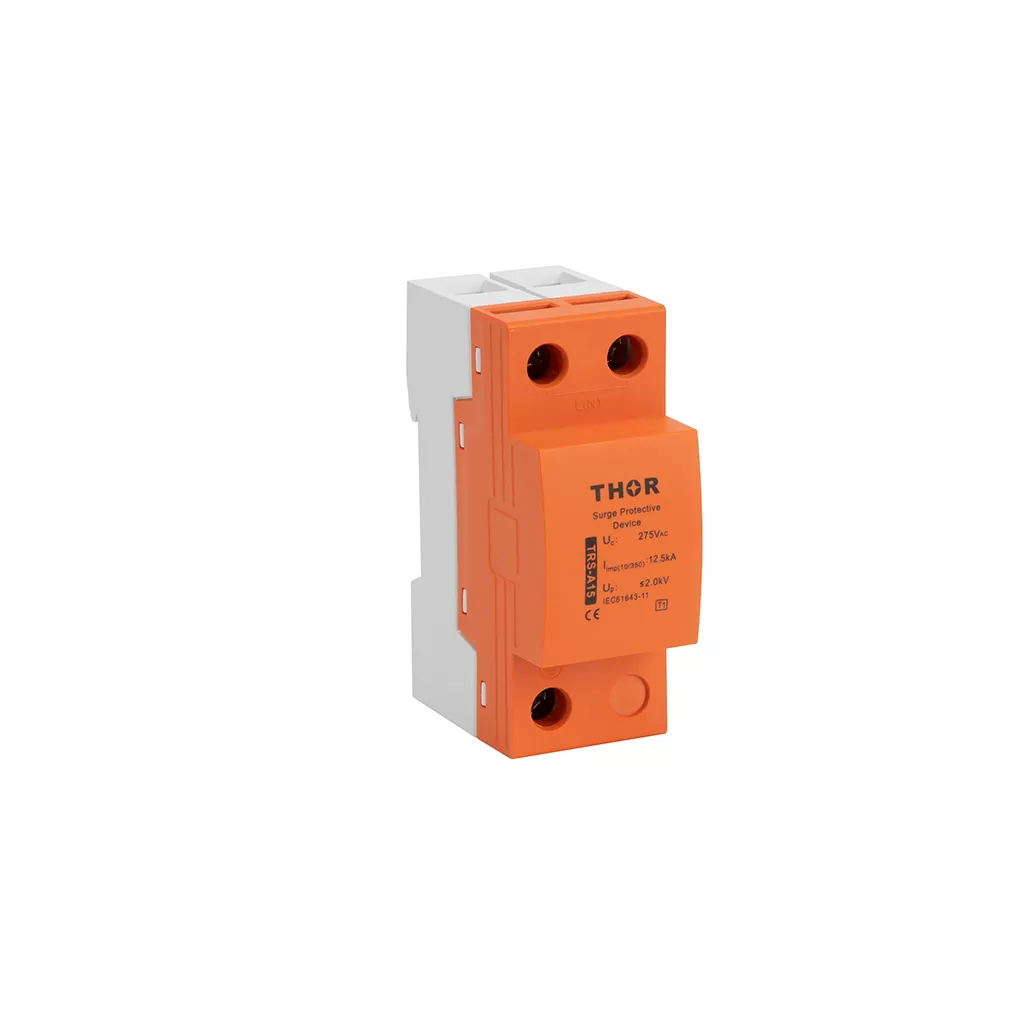

THOR TRS-A12 1p 12.5kA Type 1 AC surge protection device

TRS-A15-1

TRS-A12 12.5kA Type 1 AC Surge Protective Device

Main Features

Lightning impulse current (10/350 μs) Iimp: 12.5kA
Network Systems: TN-S, TT, TN-C-S
Mode of Protection: L-PE, N-PE
IEC/EN Category: Class I / Type 1
Protective Elements: Graphite gap
Housing: Monobloc design
Application: Main Distribution Board
Compliance: EN 61643-11:2012, IEC 61643-11:2011/T1

The TRS-A Series is a Type 1 AC Surge Protective Device designed for service-entrance and main distribution boards. Using graphite-gap discharge technology, it provides high-energy lightning current handling capability and reliable protection against direct lightning strikes and severe transient overvoltages.

With a robust discharge structure, fast response, and stable performance, the TRS-A Series is suitable for residential, commercial, and industrial low-voltage power systems located in lightning-prone or surge-intensive environments.

The TRS-A12 is the entry-level model of the TRS-A Type 1 SPD series, offering 12.5 kA (10/350 μs) impulse current capability. It is designed for lightning protection systems with moderate exposure levels and provides reliable discharge performance for basic service-entrance protection.

With its graphite-gap discharge structure, the device efficiently handles direct lightning current while maintaining a low voltage protection level. It is well-suited for smaller buildings, residential distribution boards, and facilities where lightning density is relatively low to medium.

Applications

Residential buildings without external LPS
Basic incoming power protection
Low-to-medium lightning risk areas
Small commercial distribution boards

Model	TRS-A12	TRS-A15	TRS-A25	TRS-A50
Nominal volatge(U_n)	230 V AC
Maximum operating voltage(U_c)	275 V AC
Lightning impulse current (10/350 μs)(I_imp)	12.5 kA	15 kA	25 kA	50 kA
Voltage protection level(U_p)	≤ 2,0 kV	≤ 2,0 kV	≤ 2,2 kV	≤ 2,5 kV
Insulation resistance group	> 100 mΩ
Response time	<100ns
Cross-section of connected conductors solid (min/max)	16 mm² / 35 mm²
Cross-section of connected conductors stranded (min/max)	16 mm² / 35 mm²
Fault indication	—
Degree of protection	IP20
Range of operating temperatures (min/max)	-40℃~+85℃
Humidity range	5%~95%
Mounting	DIN rail 35 mm
According to standard	EN 61643-11:2012, IEC 61643-11:2011 / T1
Remarks	Other Uc can be customized.(420V AC, 385V AC, 320V AC, etc.)
