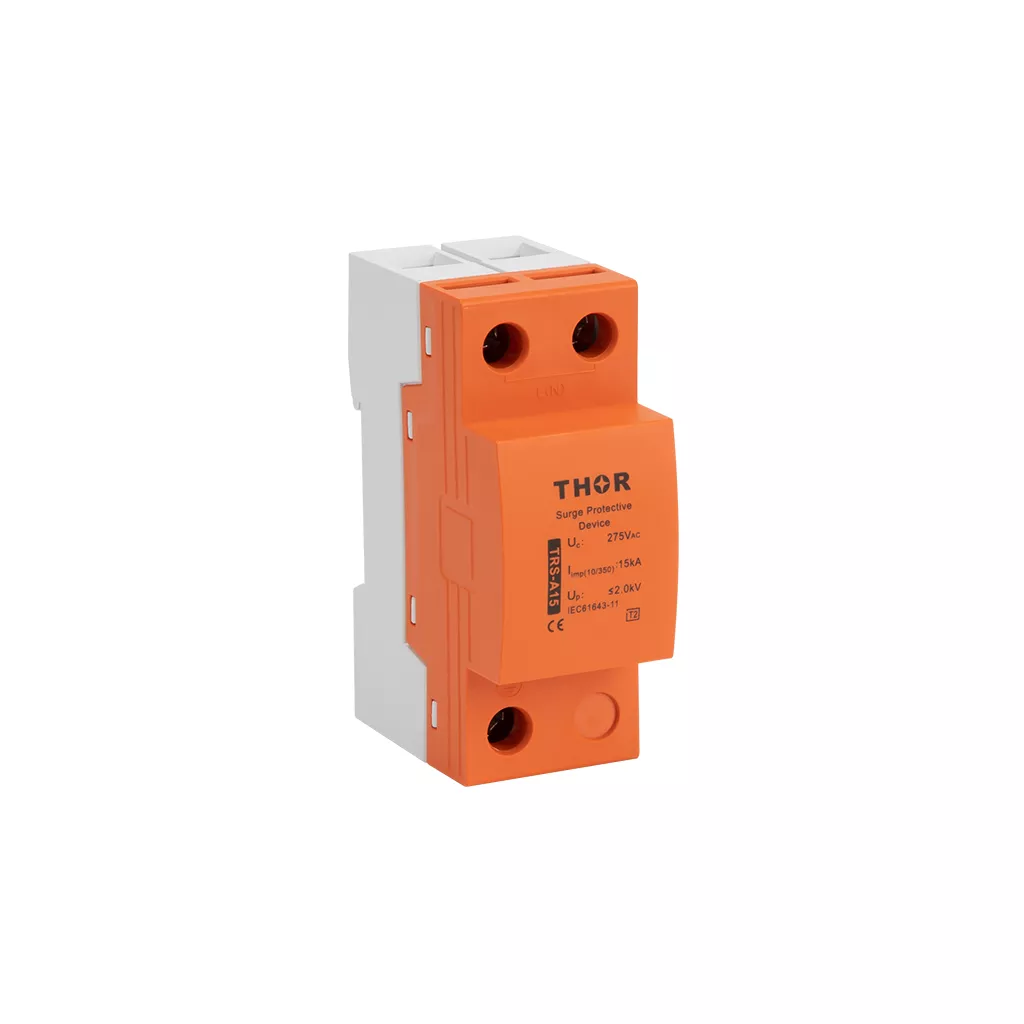

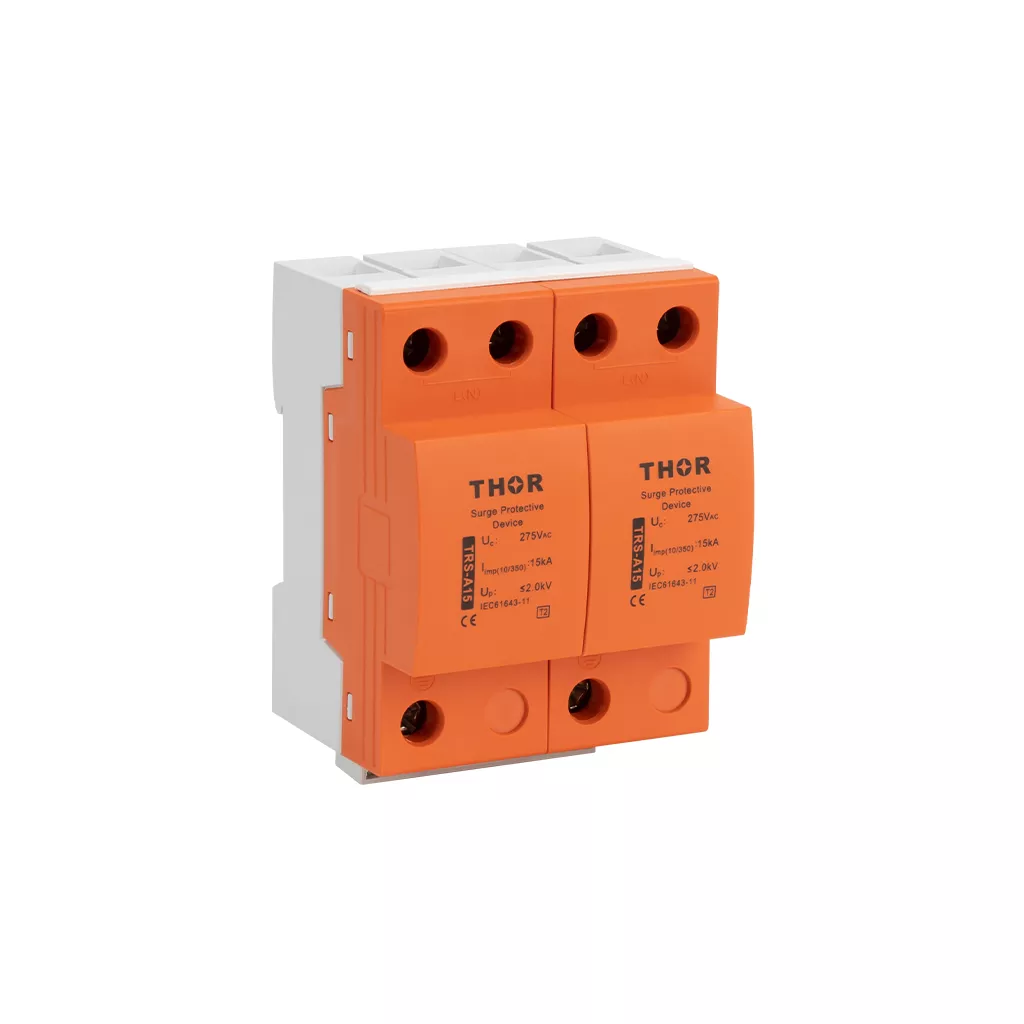

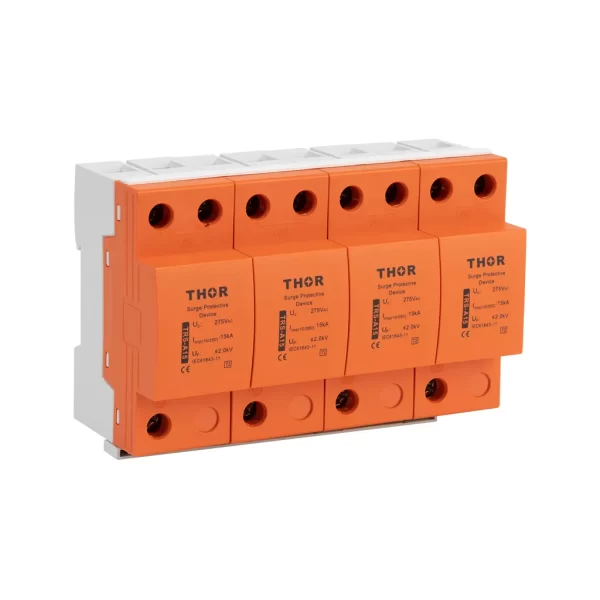

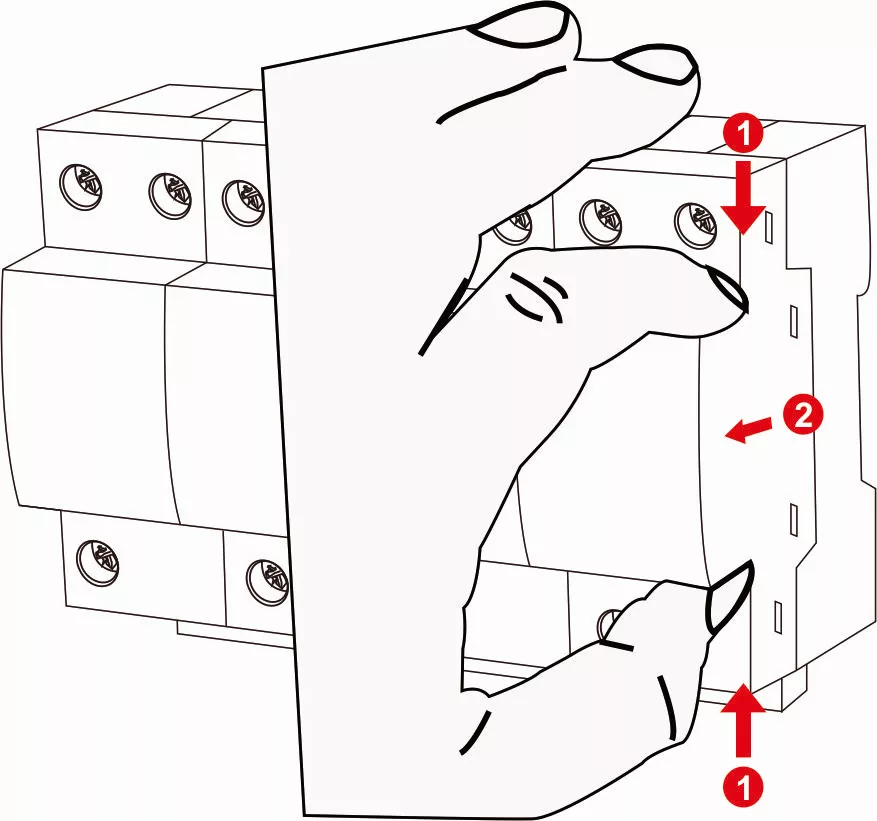

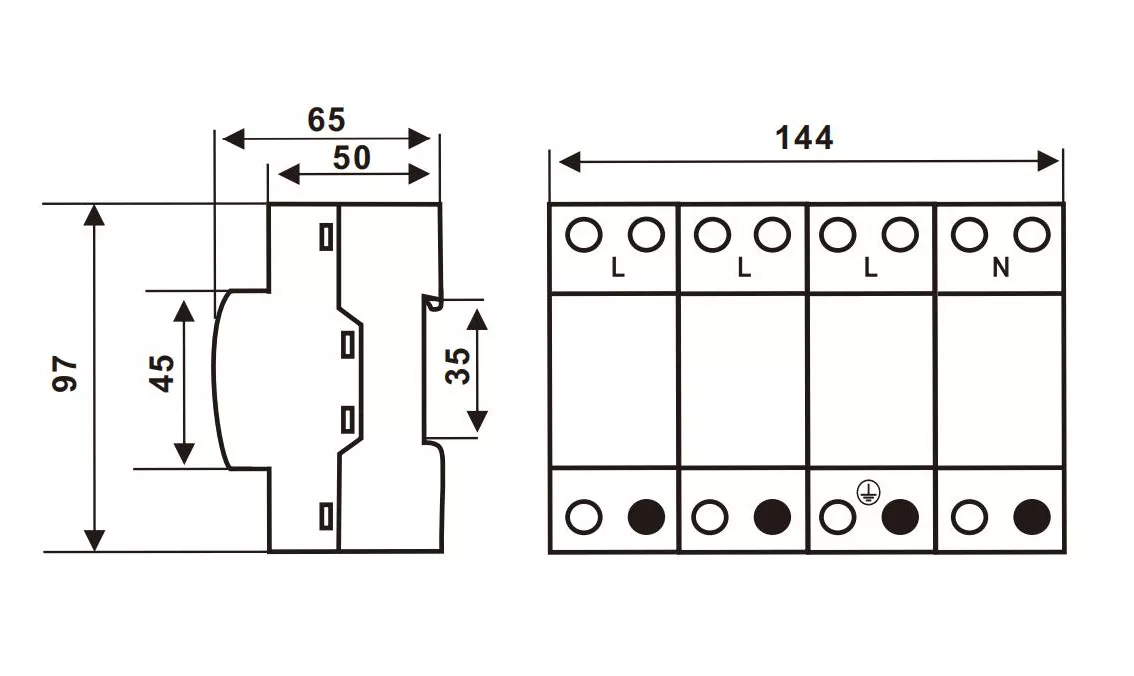

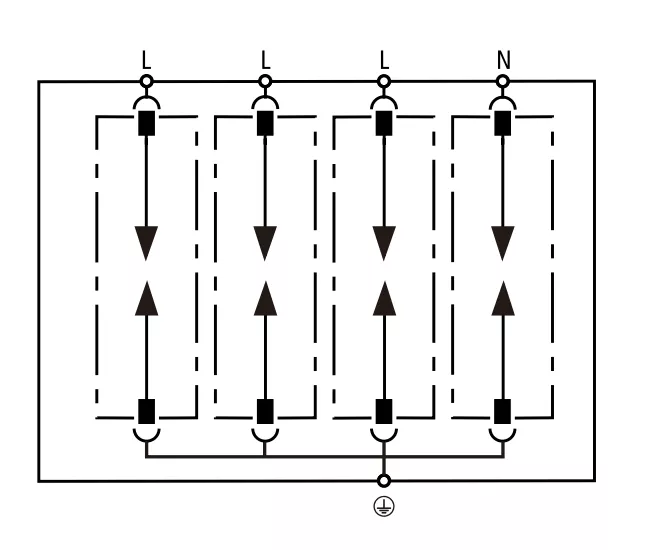

Type 1 AC Surge Protective Device TRS-A15
Main Features
- Maximum discharge current (8/20μs) Iimp: 15kA
- Network Systems: TN-S, TT, TN-C-S
- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Class I / Type 1
- Protective Elements: High Energy MOV
- Housing: Monobloc design
- Application: Main Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011/T1
The TRS-A Series is a Type 1 AC Surge Protective Device designed for service-entrance and main distribution boards. Using graphite-gap discharge technology, it provides high-energy lightning current handling capability and reliable protection against direct lightning strikes and severe transient overvoltages.
With a robust discharge structure, fast response, and stable performance, the TRS-A Series is suitable for residential, commercial, and industrial low-voltage power systems located in lightning-prone or surge-intensive environments.
The TRS-A15 is the entry-level model of the TRS-A Type 1 SPD series, offering 15 kA (10/350 μs) impulse current capability. It is designed for lightning protection systems with moderate exposure levels and provides reliable discharge performance for basic service-entrance protection.
With its graphite-gap discharge structure, the device efficiently handles direct lightning current while maintaining a low voltage protection level. It is well-suited for smaller buildings, residential distribution boards, and facilities where lightning density is relatively low to medium.
Applications
Residential buildings without external LPS
Basic incoming power protection
Low-to-medium lightning risk areas
Small commercial distribution boards
| Model | TRS-A15 | TRS-A25 | TRS-A50 |
| Nominal volatge(Un) | 230 V AC | ||
| Maximum operating voltage(Uc) | 275 V AC | ||
| Lightning impulse current (10/350 μs)(Iimp) | 15 kA | 25 kA | 50 kA |
| Voltage protection level(Up) | ≤ 2,0 kV | ≤ 2,2 kV | ≤ 2,5 kV |
| Insulation resistance group | > 100 mΩ | ||
| Response time | <100ns | ||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | ||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | ||
| Fault indication | — | ||
| Degree of protection | IP20 | ||
| Range of operating temperatures (min/max) | -40℃~+70℃ | ||
| Humidity range | 5%~95% | ||
| Mounting | DIN rail 35 mm | ||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T1 | ||
| Remarks | Other Uc can be customized.(420V AC, 385V AC, 320V AC, etc.) | ||
