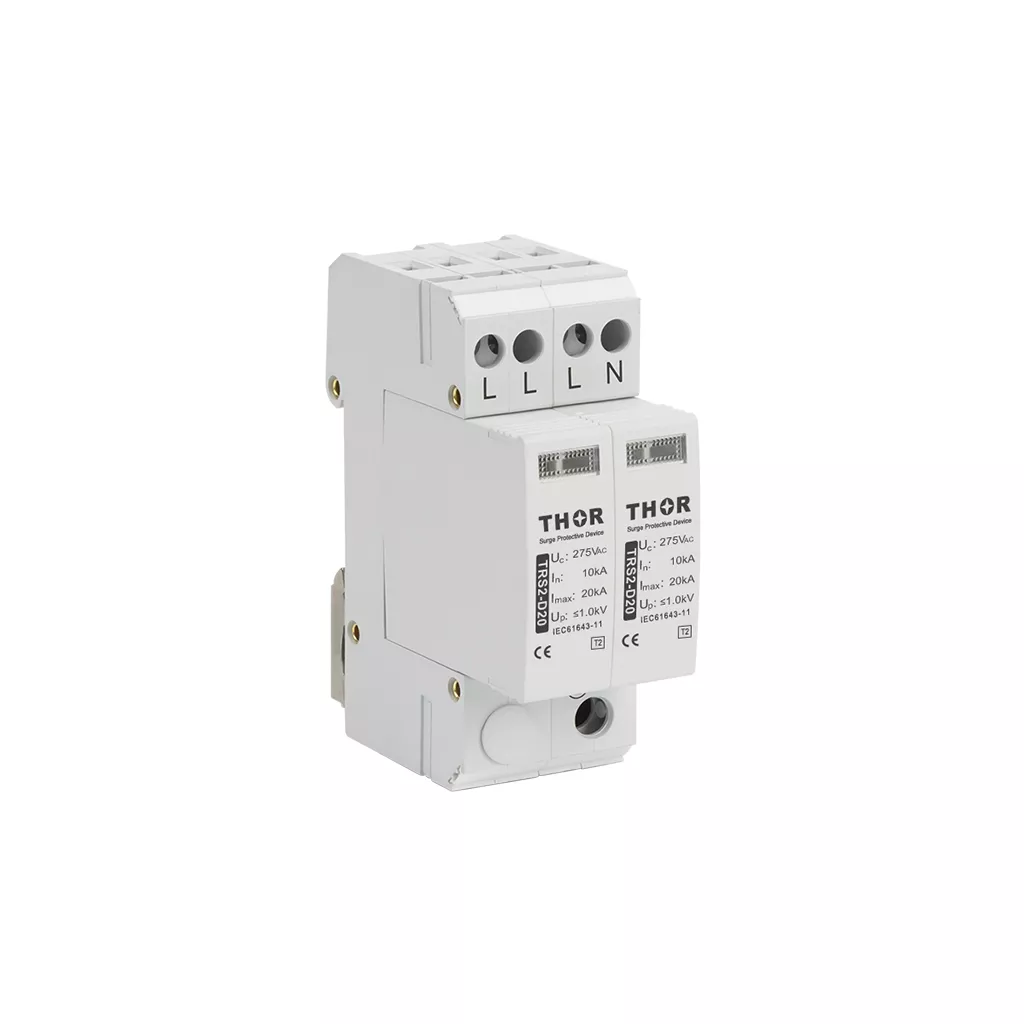

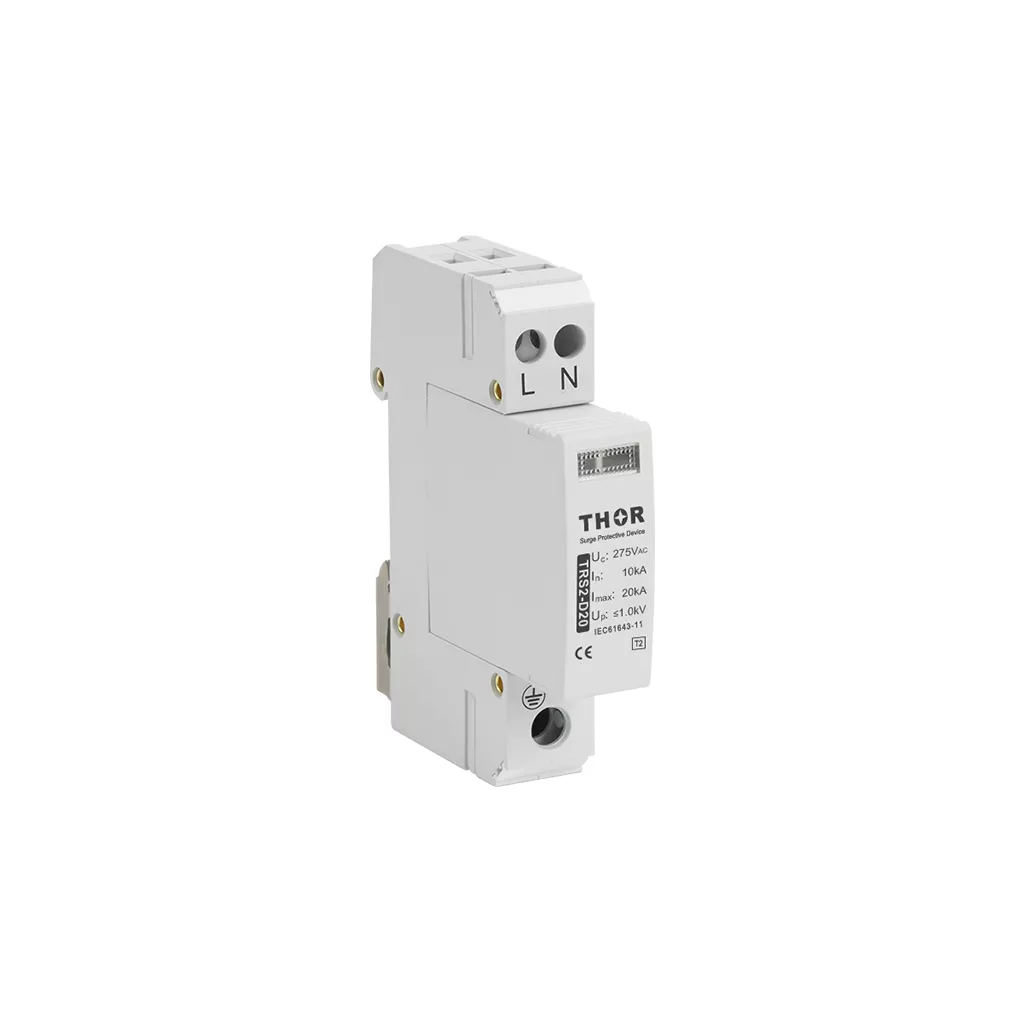

Type 2 AC Surge Protective Device TRS2-D20
Main Features
- Nominal discharge current (8/20μs) In: 10kA
- Maximum discharge current (8/20μs) Imax: 20kA
- Network Systems: TN-S, TT

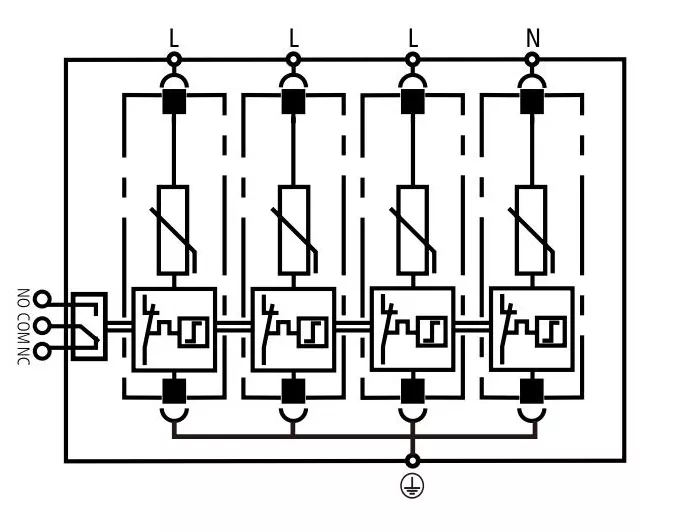

- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Class II / Type 2
- Protective Elements: High Energy MOV
- Housing: Pluggable design
- Application: Sub-Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011/T2
The TRS2-D20 is a compact Type 2 surge protective device engineered for AC sub-distribution systems requiring dependable mid-level surge suppression.
Using high-quality MOV technology, it provides 10 kA nominal and 20 kA maximum discharge capability, ensuring stable protection against switching surges and induced lightning overvoltages within 230 V AC networks.

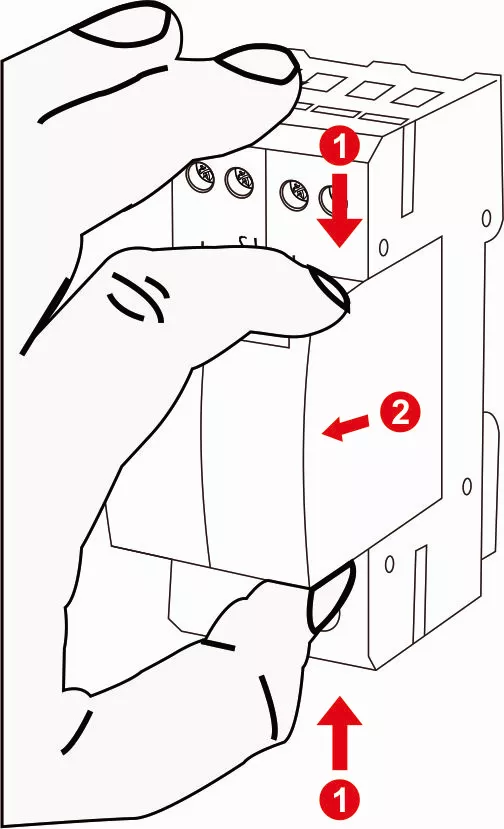

Its pluggable module design allows fast and convenient replacement without service interruption, while the built-in visual red fault indicator offers immediate status recognition.

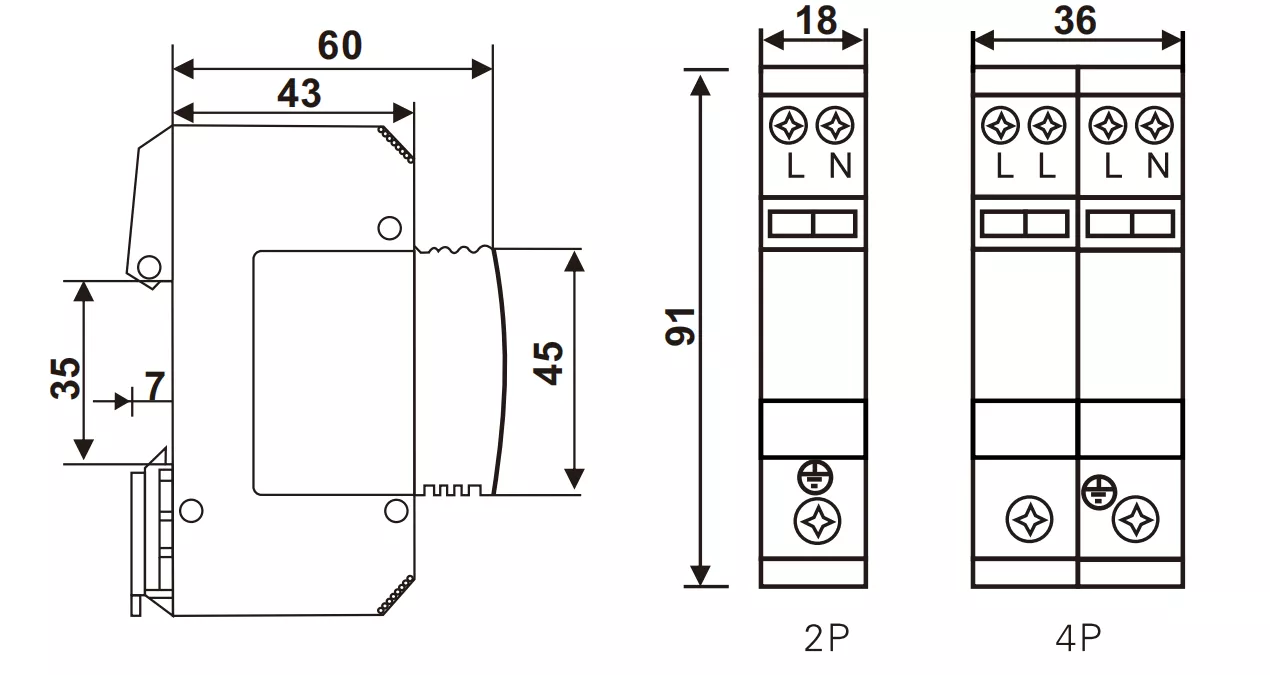

Designed for standard indoor electrical panels, the TRS2-D20 features a slim 2P/4P configuration to fit compact distribution spaces and supports optional remote signalling for integration into monitoring systems.
With fast response time and a robust operating temperature range, it is a reliable choice for residential, commercial, and light industrial power installations that require consistent Type 2 surge protection.
Applications
Residential and commercial AC distribution panels
Secondary protection for terminal equipment and control devices
Sub-distribution boards where compact Type 2 SPD is required
Installations using automation loads or switching circuits
Systems requiring optional remote signalling for fault monitoring

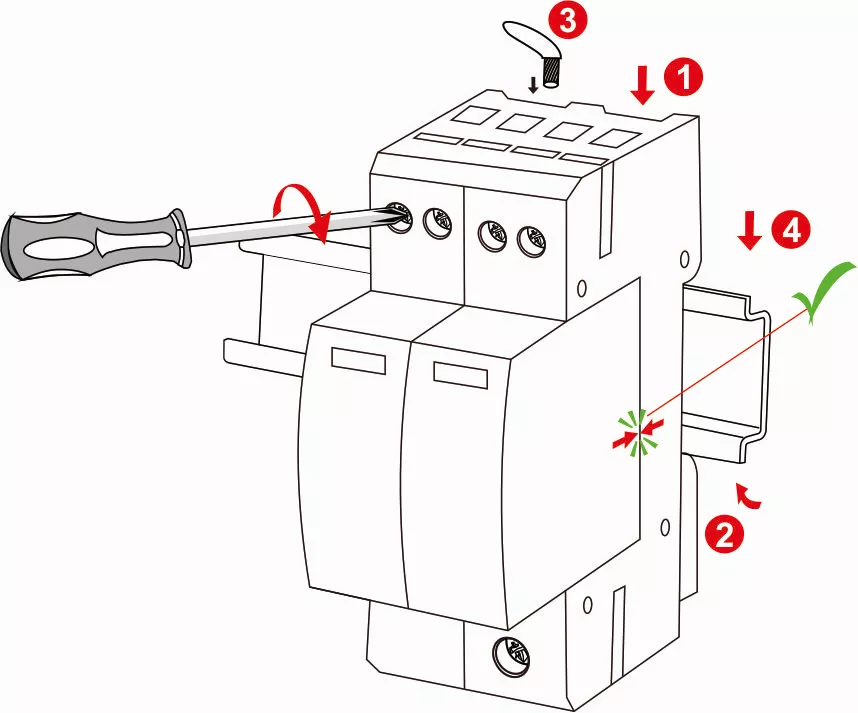

| Model | TRS2-D20 | TRS2-C40 | ||
| Nominal volatge (Un) | 230 V AC | |||
| Maximum operating voltage (Uc) | 275 V AC | |||
| Nominal discharge current (8/20μs)( In) | 10 kA | 20 kA | ||
| Maximum discharge current (8/20μs) (Imax) | 20 kA | 40 kA | ||
| Voltage protection level (Up) | ≤ 1,0 kV | ≤ 1,3 kV | ||
| Response time (ta) | < 25ns | |||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | |||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | |||
| Fault indication | red indication field | |||
| Remote indication | potential-free change-over contact | |||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | |||
| Cross-section of remote indication conductors | 1,5 mm2 | |||
| Degree of protection | IP20 | |||
| Range of operating temperatures (min/max) | -40℃~+70℃ | |||
| Humidity range | 5%~95% | |||
| Mounting | DIN rail 35 mm | |||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T2 | |||
| Remarks | Other Uc can be customized.(420V AC, 385V AC, 320V AC, etc. | |||
