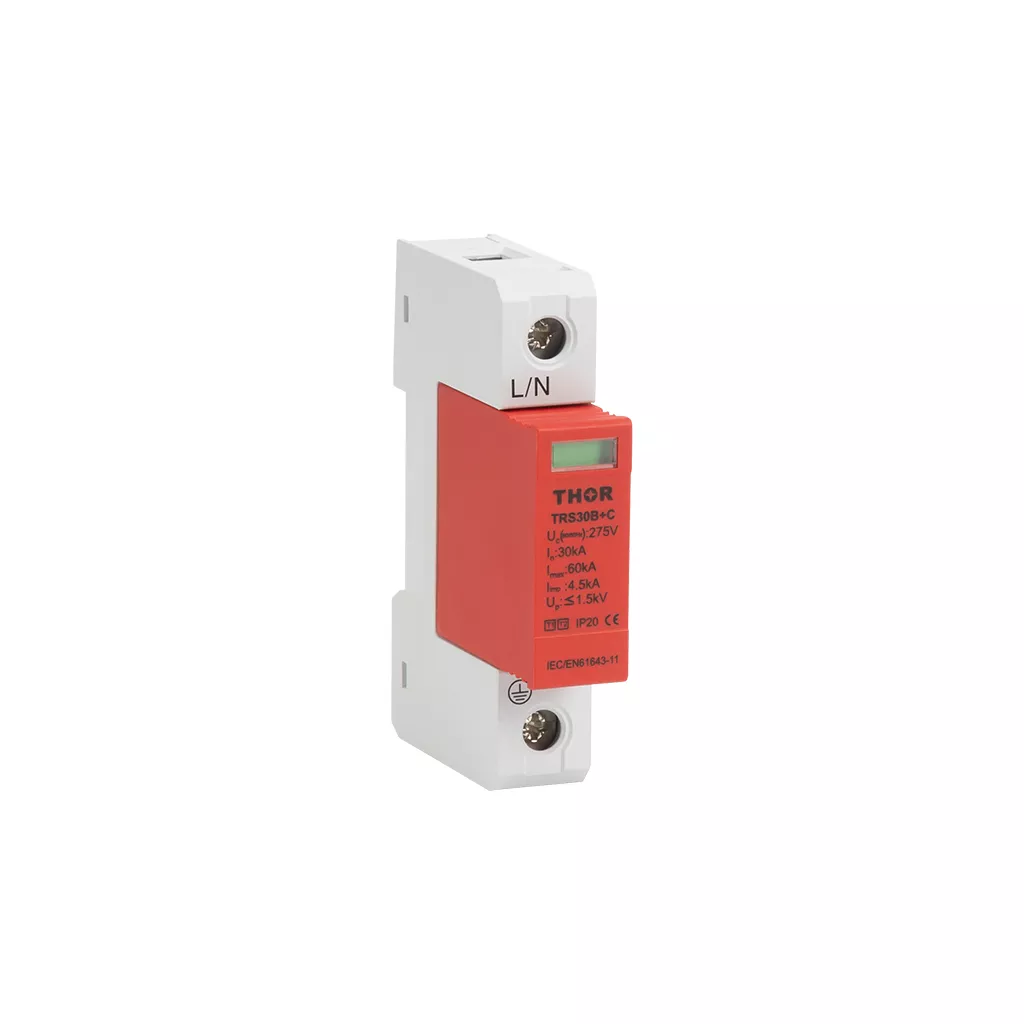

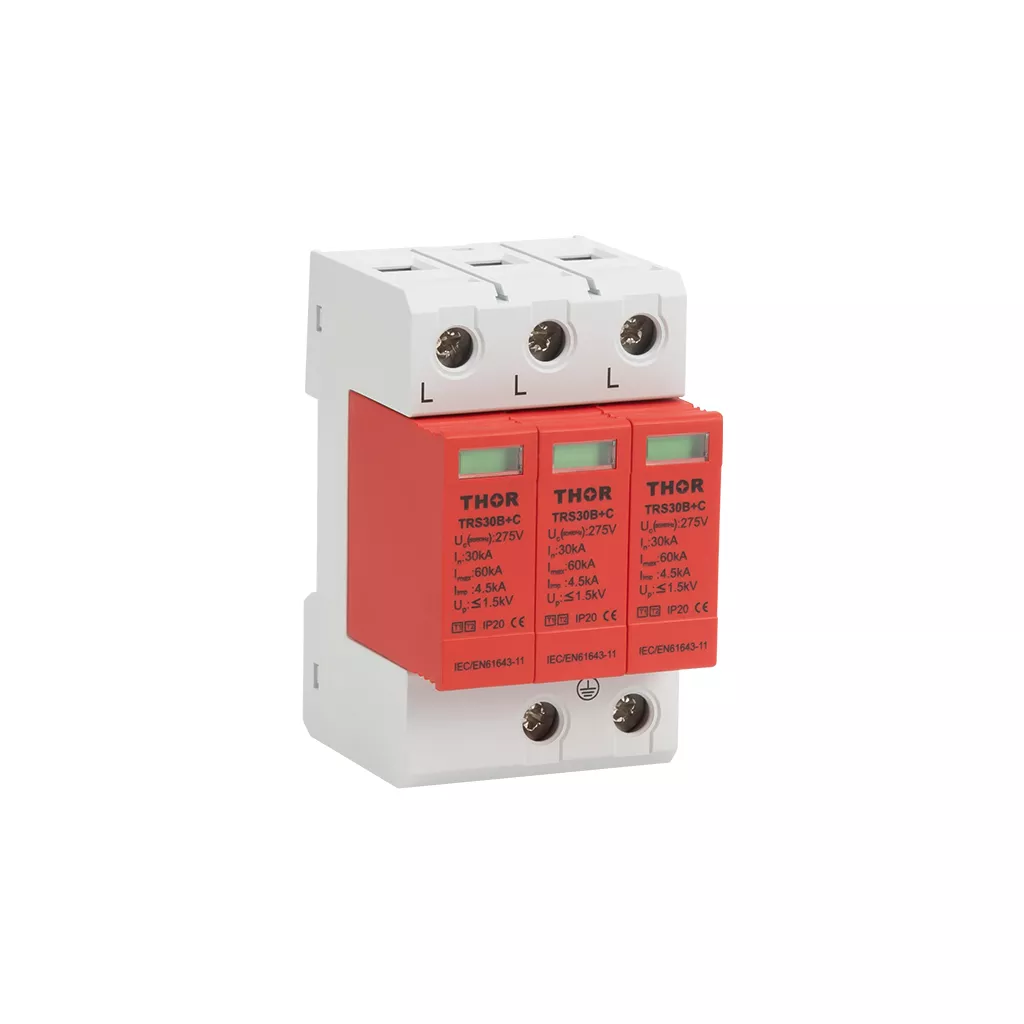

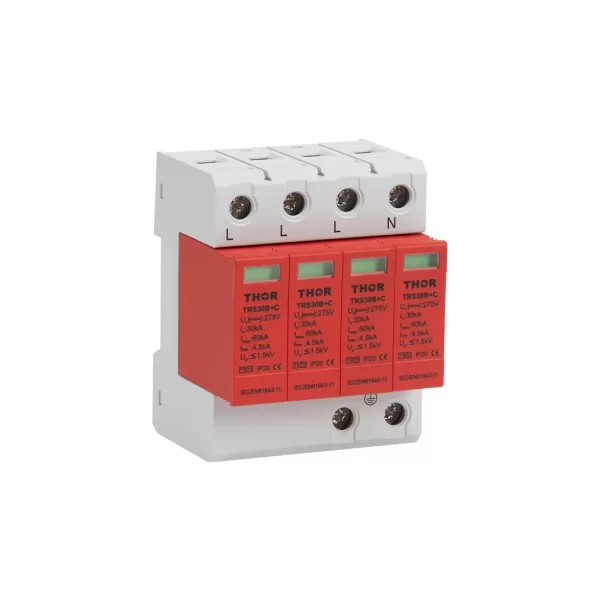

Type 1+2 AC Surge Protective Device TRS30 B+C
Main Features
- Lightning impulse current(10/350μs) In: 4.5kA
- Nominal discharge current (8/20μs) In: 30kA
- Maximum discharge current (8/20μs) Imax: 60kA
- Network Systems: TN-S, TT, TN-C-S

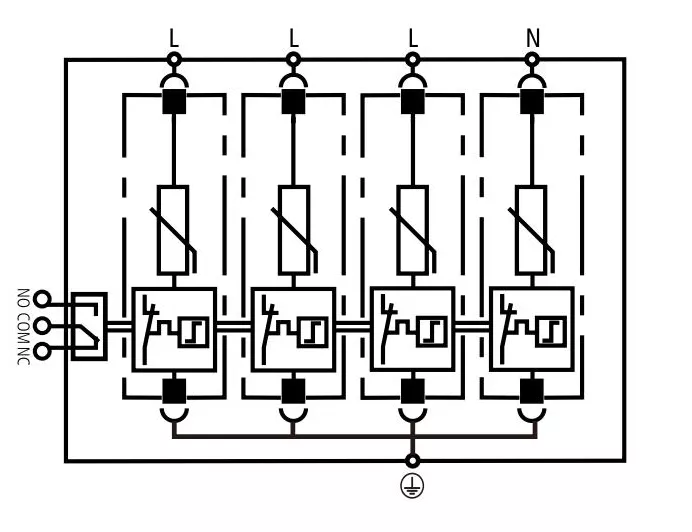

- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Type 1+2 / Class I+II / Class B+C
- Protective Elements: High Energy MOV
- Housing: Pluggable design
- Application: Sub-Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011
The TR30B+C is a robust Type 1+2 surge protective device designed to deliver reliable protection against both direct lightning currents and transient surges in low-voltage AC distribution networks.
With its compact footprint and 2-pole/4-pole availability, it integrates smoothly into main distribution boards and sub-distribution panels across residential, commercial, and industrial facilities.
Featuring a hybrid MOV architecture optimized for durability, the TR30B+C provides 4.5 kA (10/350 μs) lightning impulse capability and a high 60 kA (8/20 μs) maximum discharge capacity. Its ≤1.5 kV protection level offers consistent limitation of overvoltages, ensuring that connected equipment continues to operate safely even during severe electrical disturbances.
A red fault indication window provides instant visual status feedback, while optional potential-free remote signaling contacts enable integration with monitoring, alarm, or automation systems to support real-time supervision.

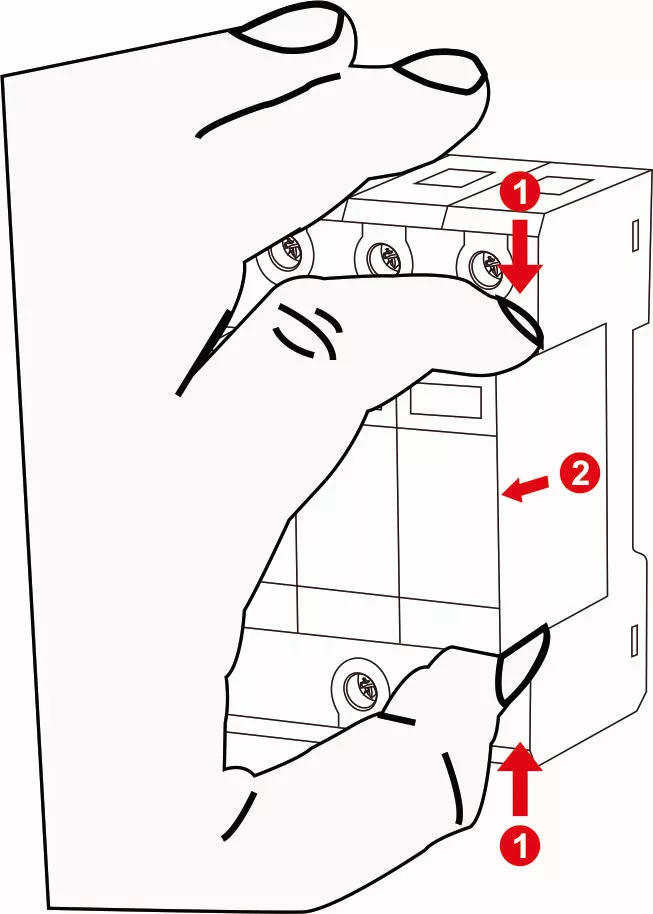

The pluggable module design helps reduce maintenance time, allowing quick replacement without disturbing existing wiring.

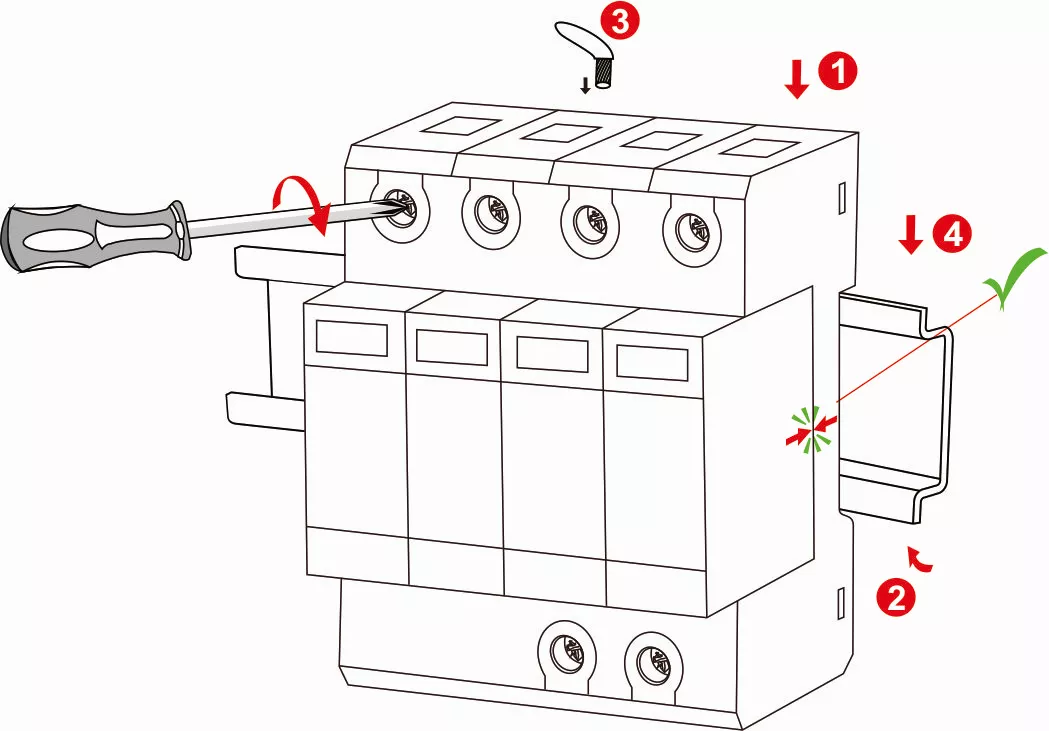

Engineered for 35 mm DIN-rail mounting, the TR30B+C is well suited for installations requiring higher discharge capacity, dependable surge suppression performance, and efficient device servicing.
Applications
Main or sub-distribution boards requiring higher energy handling in Type 1+2 protection
Residential, commercial, and industrial AC power systems operating at 230V AC
Facilities with or without external lightning protection systems
Power networks exposed to frequent switching operations or moderate lightning conditions
Installations requiring remote status signaling for centralized monitoring
Panels prioritizing tool-free module replacement and easy maintenance

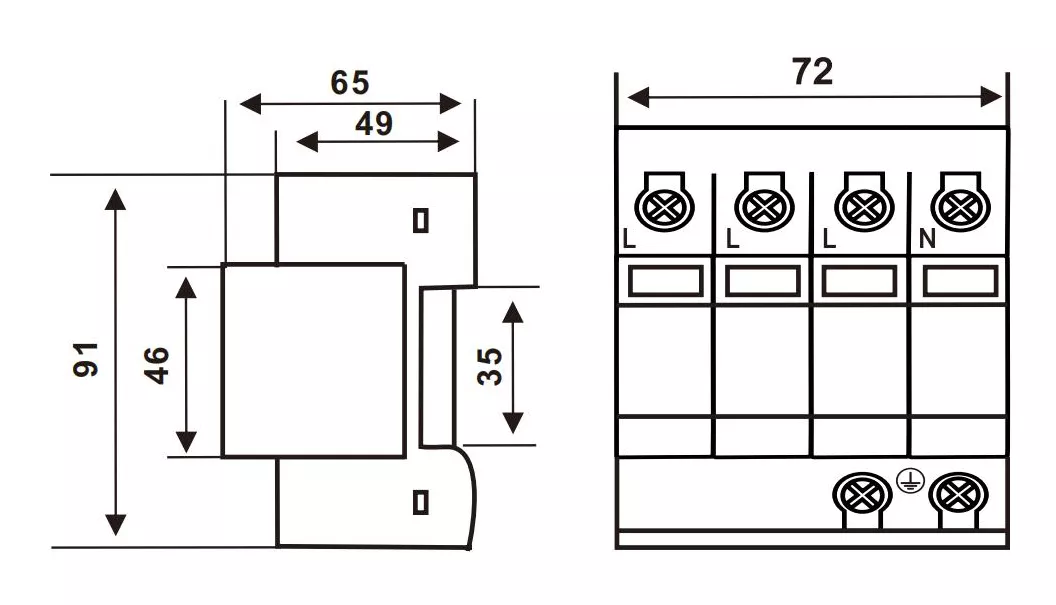

| Model | TRS30B+C | |||
| Nominal volatge (Un) | 230 V AC | |||
| Maximum operating voltage (Uc) | 275 V AC | |||
| Lightning impulse current (10/350 μs) (Iimp)) | 7 kA | |||
| Nominal discharge current (8/20μs) (In) | 30 kA | |||
| Maximum discharge current (8/20μs) (Imax) | 60 kA | |||
| Voltage protection level (Up) | ≤ 1,5 kV | |||
| Response time (ta) | < 25ns | |||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | |||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | |||
| Fault indication | red indication field | |||
| Remote indication | potential-free change-over contact | |||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | |||
| Cross-section of remote indication conductors | 1,5 mm2 | |||
| Degree of protection | IP20 | |||
| Range of operating temperatures (min/max) | -40℃~+70℃ | |||
| Humidity range | 5%~95% | |||
| Mounting | DIN rail 35 mm | |||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T1+ T2 | |||
| Remarks | Other Uc can be customized.(420V AC, 385V AC, 320V AC, etc.) | |||
