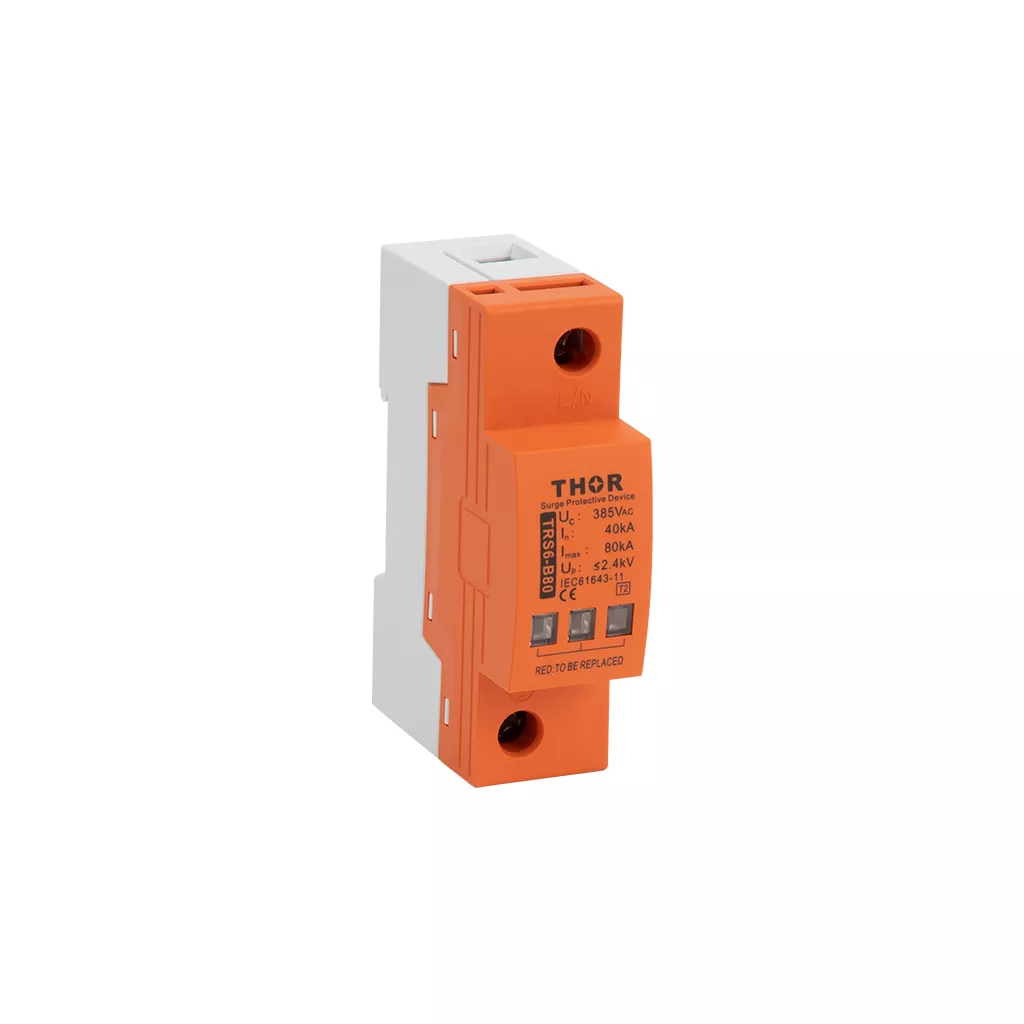

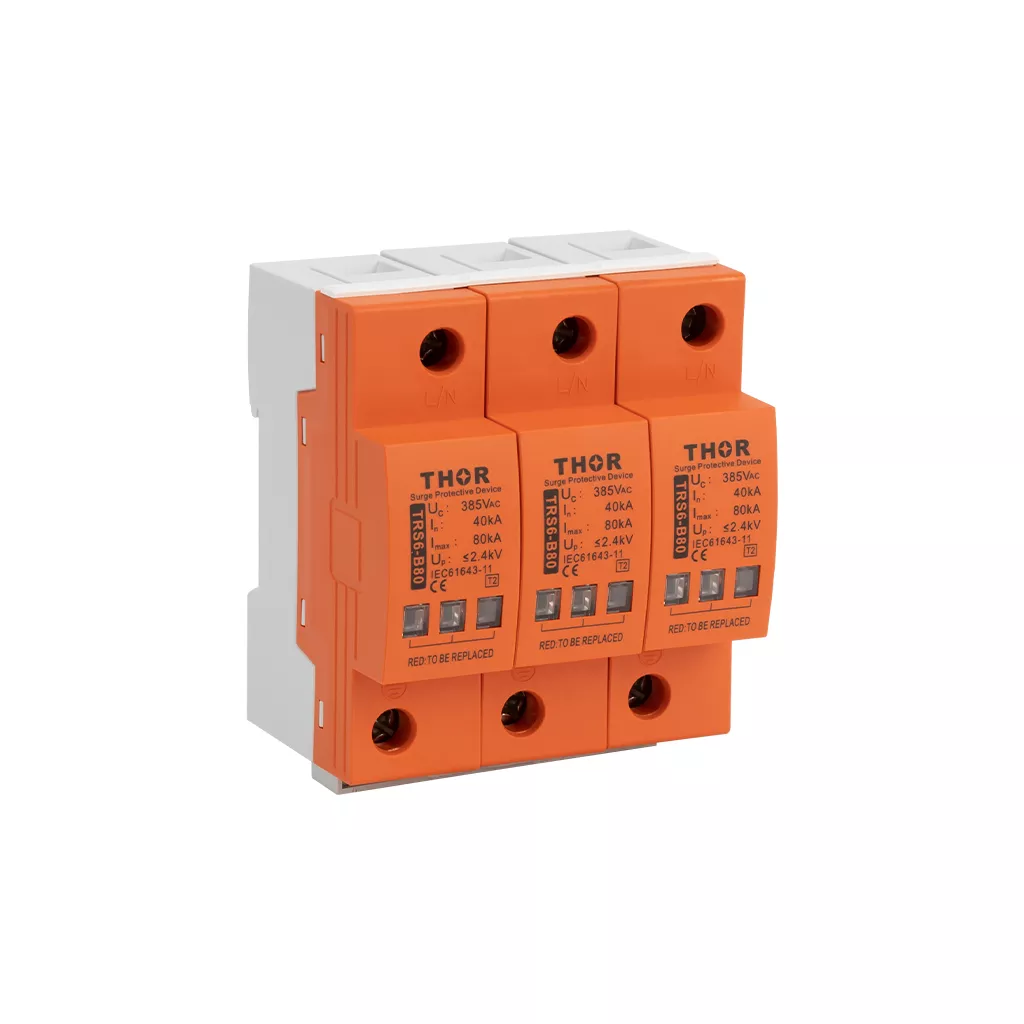

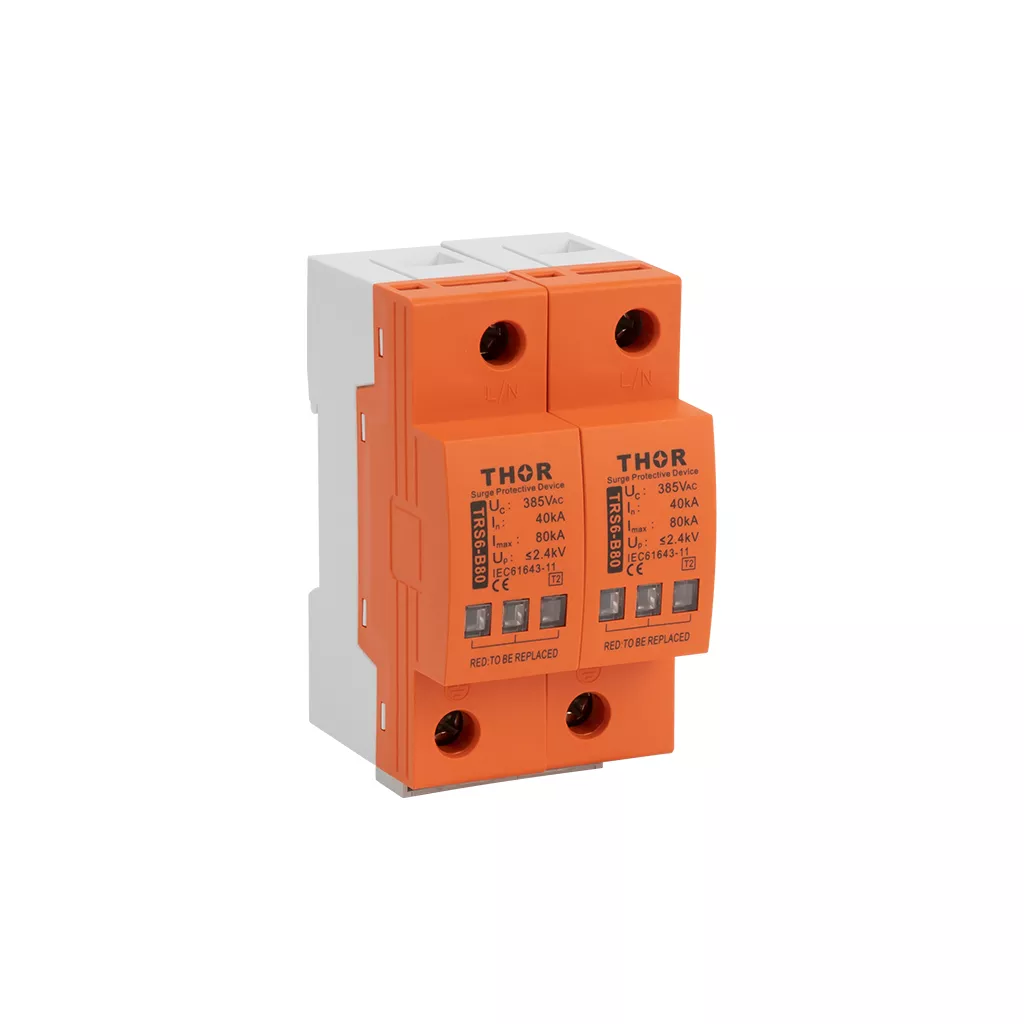

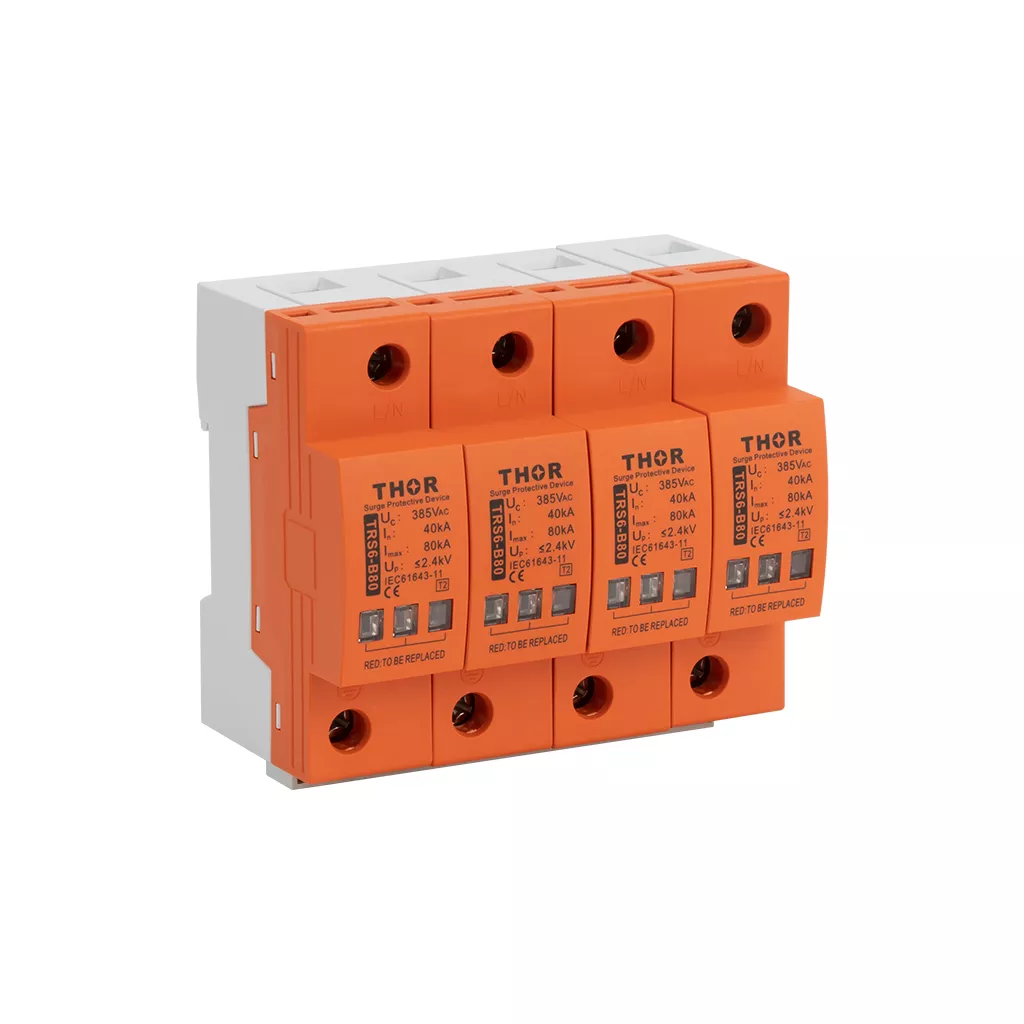

Type 2 AC Surge Protective Device TRS6-B80
Main Features
- Nominal discharge current (8/20μs) In: 40kA
- Maximum discharge current (8/20μs) Imax: 80kA
- Network Systems: TN-S, TT
- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Class II / Type 2
- Protective Elements: High Energy MOV
- Housing: Pluggable design
- Application: Sub-Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011/T2
The TRS6-B80 is a compact and robust Type 2 surge protective device specifically engineered for low-voltage AC distribution systems.
Using high-performance MOV technology, it provides stable suppression of switching surges and lightning-induced overvoltages, making it ideal for residential and commercial sub-distribution boards.
The TRS6-B80 adopts a fully integrated, non-pluggable design, ensuring excellent mechanical strength and long-term electrical reliability.
Its built-in red fault indicator offers clear status visibility, helping technicians quickly identify protection failures without requiring additional diagnostics.
Optional remote signaling contacts allow integration into building management or alarm systems for real-time monitoring.
Durable, maintenance-friendly, and optimized for everyday electrical infrastructure, the TRS6-B80 delivers dependable Type 2 surge protection with minimal installation complexity.
Applications
Residential and commercial sub-distribution boards
Systems exposed to switching operations or indirect lightning surges
Panels requiring straightforward Type 2 protection with on-site visual status indication
Installations needing remote fault signaling for centralized monitoring
General-purpose AC power distribution networks

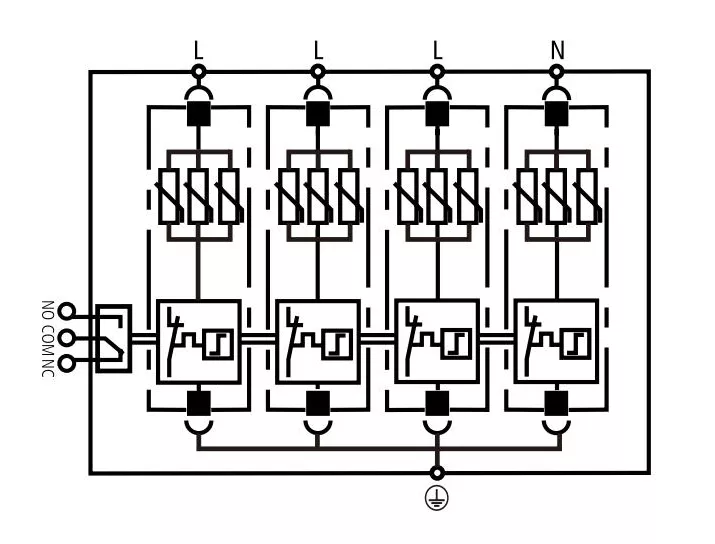

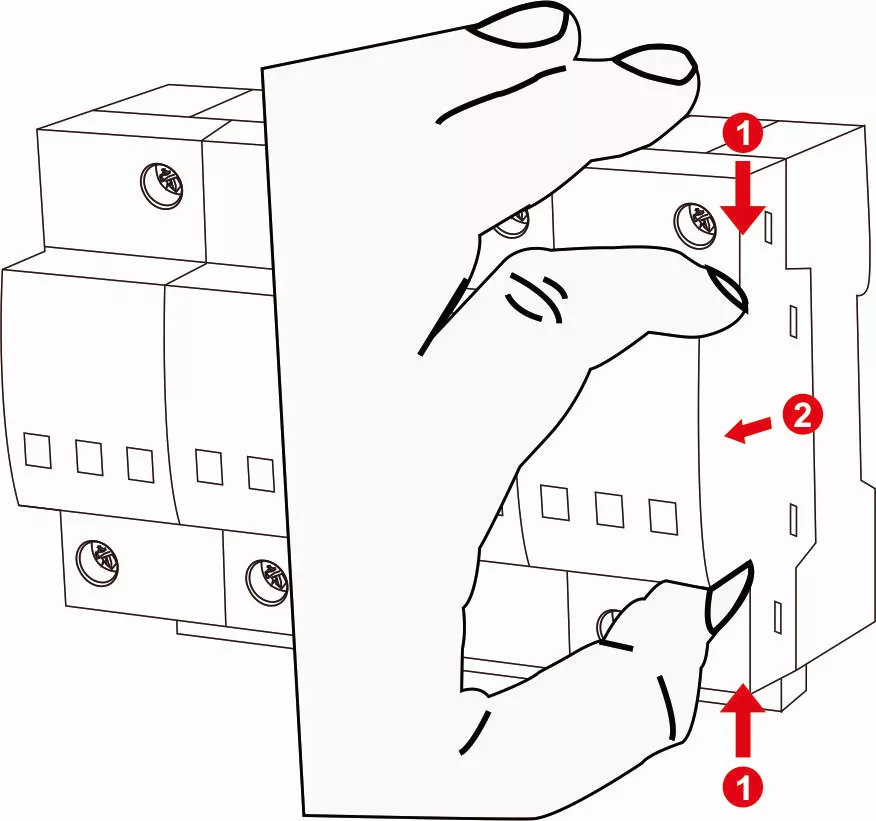

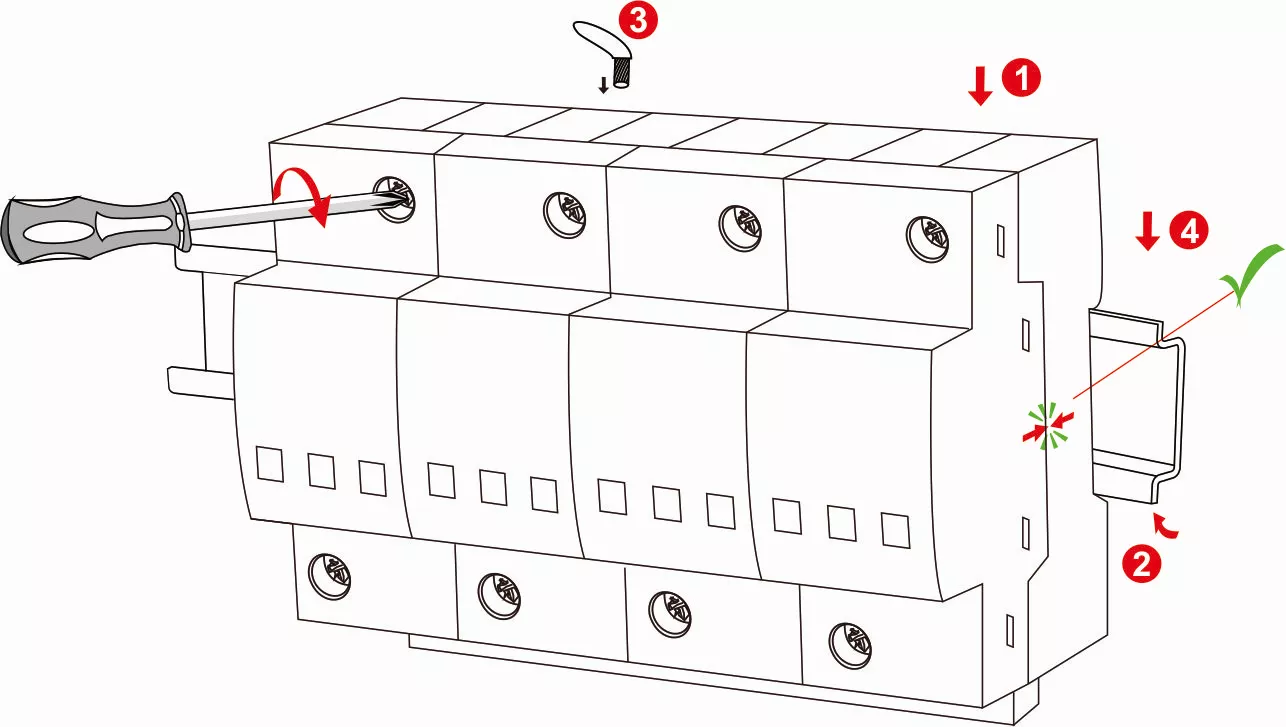

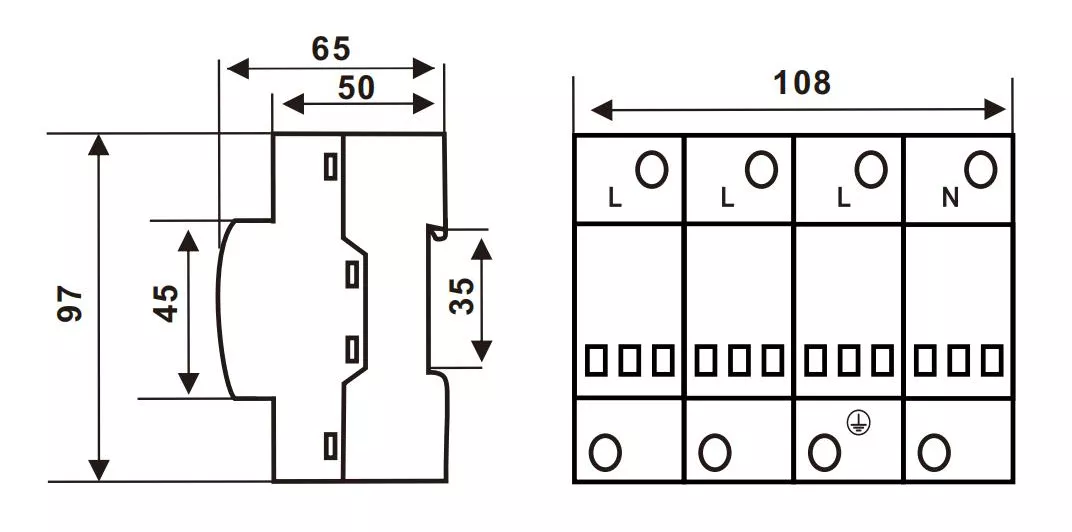

| Model | TRS6-B80 | TRS6-B100 | ||
| Nominal volatge (Un) | 380 V AC | |||
| Maximum operating voltage (Uc) | 385 V AC | |||
| Nominal discharge current (8/20μs) (In) | 40 kA | 60 kA | ||
| Maximum discharge current (8/20μs)(Imax) | 80 kA | 100 kA | ||
| Voltage protection level (Up) | ≤ 2,4 kV | ≤ 2,5 kV | ||
| Response time (ta) | < 25ns | |||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | |||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | |||
| Fault indication | red indication field | |||
| Remote indication | potential-free change-over contact | |||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | |||
| Cross-section of remote indication conductors | 1,5 mm2 | |||
| Degree of protection | IP20 | |||
| Range of operating temperatures (min/max) | -40℃~+70℃ | |||
| Humidity range | 5%~95% | |||
| Mounting | DIN rail 35 mm | |||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T2 | |||
| Remarks | Other Uc can be customized.(420V AC, 275V AC, 320V AC, etc.) | |||
