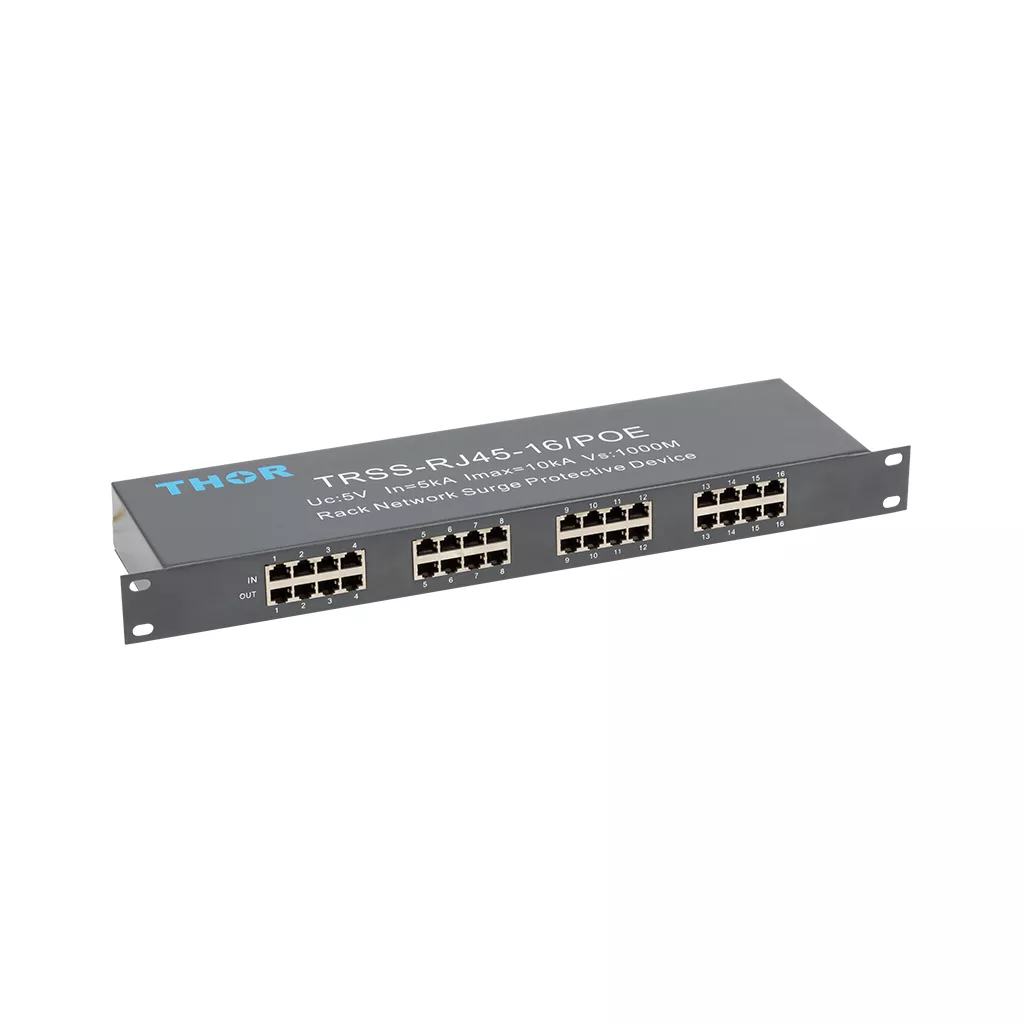

16 Rack-Mount Gigabit PoE+ Surge Protector for Network Cabinet
Main Features
- Application: Centralized Protection for Data Networks and Ethernet
- Data Rate Support: 1000Mbps (Gigabit Ethernet)
- Mode of Protection: Line-Line, Line-PE
- Max. Operating Voltage (PoE): 57Vdc
- Surge Discharge Ratings: In (L-L): 5kA, In (L-PE): 10kA
- Voltage Protection Level (L-L): 60V
- Voltage Protection Level (L-PE): 500V
- Series Load Current: 1A per port
- Connection: 16 x RJ45 Sockets (In/Out)

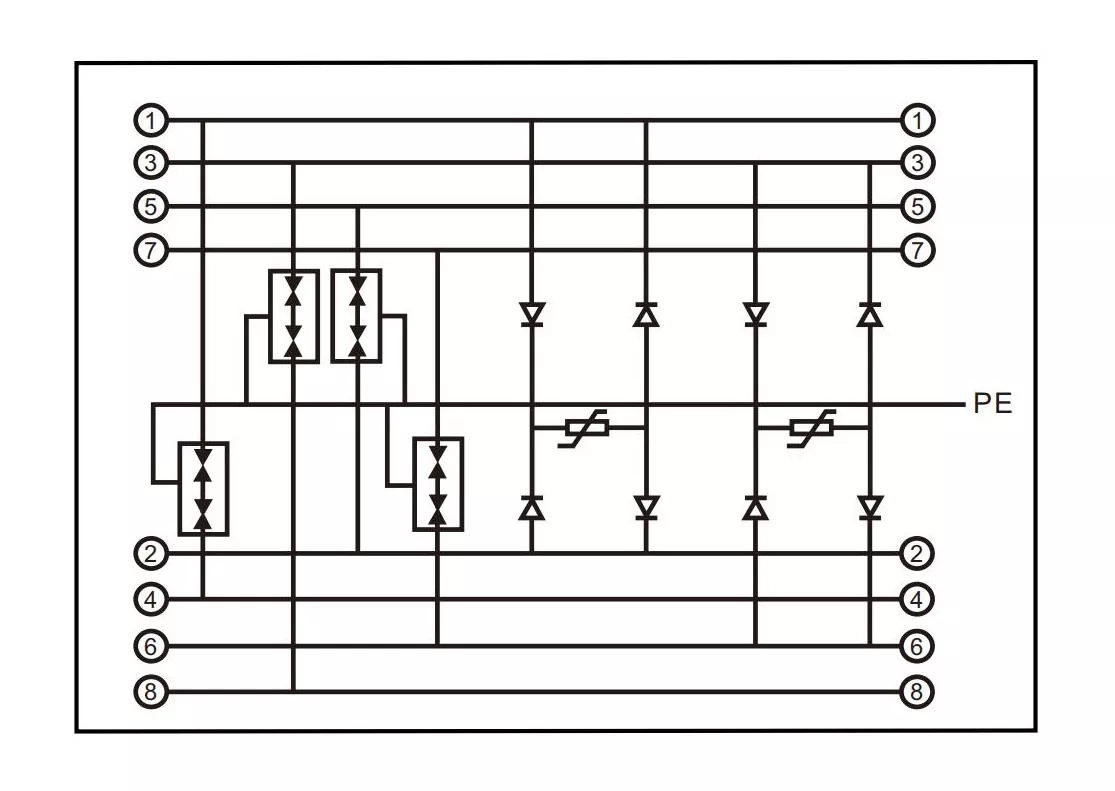

- Pinning Protection: All 8 lines protected (Data: 1/2/3/6, PoE: 4/5/7/8)
- Compliance: EN 61643-21:2012, IEC 61643-21:2011

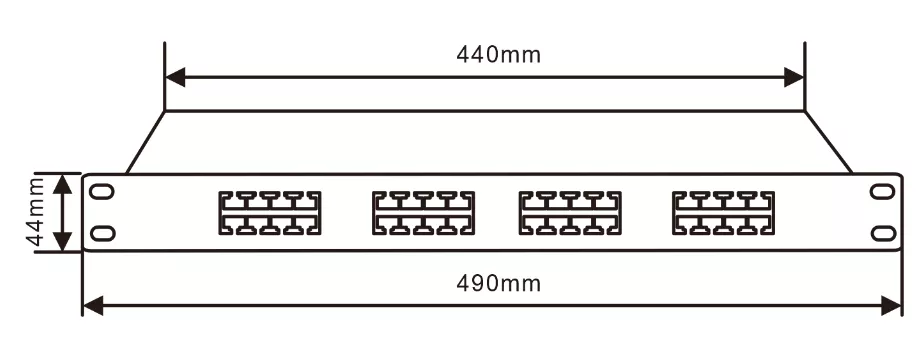

The TRSS-RJ45-16 is a professional-grade Surge Protection Device specifically engineered for high-density 10/100/1000M Ethernet networks requiring centralized protection in standard server racks. Featuring a robust 1U rack-mount design, this 16-port device provides uncompromising protection for network infrastructure—such as server clusters, multi-channel routers, and core switches—against transient overvoltages caused by earth potential rises or line inductance. By utilizing a sophisticated circuit design with RJ45 female-to-female connectors, the TRSS-RJ45-16 ensures high-speed data transmission up to 1000Mbps with minimal signal attenuation, maintaining an insertion loss of <= 0.5dB.
Advanced Multi-Channel Protection for Industrial Reliability Designed to meet stringent industrial requirements, the TRSS-RJ45-16 offers complete 8-line protection for each port, covering both Data (Pins 1/2/3/6) and PoE (Pins 4/5/7/8) power paths. This Surge Protection Device is capable of handling a maximum discharge current (Imax) of 10kA per port and provides a stable voltage protection level of 60V. Fully compliant with international standards IEC 61643-21 and EN 61643-21, this rack-type SPD is an essential component for safeguarding sensitive IT infrastructure in data centers and large-scale enterprise intranets.
Applications
Centralized Gigabit Ethernet networks requiring high-density port protection within 19-inch server racks.
Protection for large-scale IP surveillance systems where multiple PoE-powered cameras converge at a single point.
Enterprise data centers and server rooms housing high-performance networking hardware and workstations.
Telecommunication base stations and smart city infrastructure requiring reliable multi-channel signal shielding.
Industrial automation environments where centralized network protection is required to minimize system
| Model | TRSS-RJ45 | TRSS-RJ45/16 For 19” Cabinet Rack |
TRSS-RJ45/24 For 19” Cabinet Rack |
| Material/Ports numbers | PA66/Aluminum/single port | Aluminum/16 ports | Aluminum/24 ports |
| Nominal volatge (Un) | 48 V | ||
| Maximum operating voltage (d.c.) (Uc) | 50 V | ||
| Maximum operating voltage (a.c.) ( Uc) | 34 V | ||
| Maximum operating voltage (d.c.) pair-pai(PoE) (Uc) | 57 V | ||
| Nominal current ( IL) | 1 A | ||
| Current flow (8/20μs)(L-L) | 5 kA | ||
| Current flow (8/20μs)(L-PE) | 10 kA | ||
| Voltage protection level (L-L) ( Up) | 60 V | ||
| Voltage protection level (L-PE) ( Up) | 500 V | ||
| Cut-off frequency | 250 MHz | ||
| Insertion loss at 250 MHz (1000Mpbs) | ≤ 0,5 dB | ||
| Connection (input/ output) | RJ45 socket/ RJ45 socket | ||
| Pinning | Data:1/2/3/6; PoE:4/5/7/8 | ||
| Response time ( ta) | 25ns | ||
| Degree of protection | IP20 | ||
| Range of operating temperatures (min/max) | -40℃/70℃ | ||
| Humidity range | 5%-95% | ||
| According to standard | EN 61643-21:2012, IEC 61643-21:2011 | ||
Rotate the 3D model to inspect the surge protective device from different angles. For detailed technical specifications, electrical ratings and installation information, please refer to the other tabs.
