24-Port Gigabit PoE+Ethernet Surge Protection Patch Panel IEC 61643-21 Compliant
Main Features
- Application: High-Density Protection for Data Networks and Ethernet
- Data Rate Support: 1000Mbps (Gigabit Ethernet)
- Mode of Protection: Line-Line, Line-PE
- Max. Operating Voltage (PoE): 57Vdc
- Surge Discharge Ratings: In (L-L): 5kA, In (L-PE): 10kA
- Voltage Protection Level (L-L): 60V
- Voltage Protection Level (L-PE): 500V
- Series Load Current: 1A per port
- Connection: 24 x RJ45 Sockets (In/Out)
- Pinning Protection: All 8 lines protected (Data: 1/2/3/6, PoE: 4/5/7/8)
- Compliance: EN 61643-21:2012, IEC 61643-21:2011

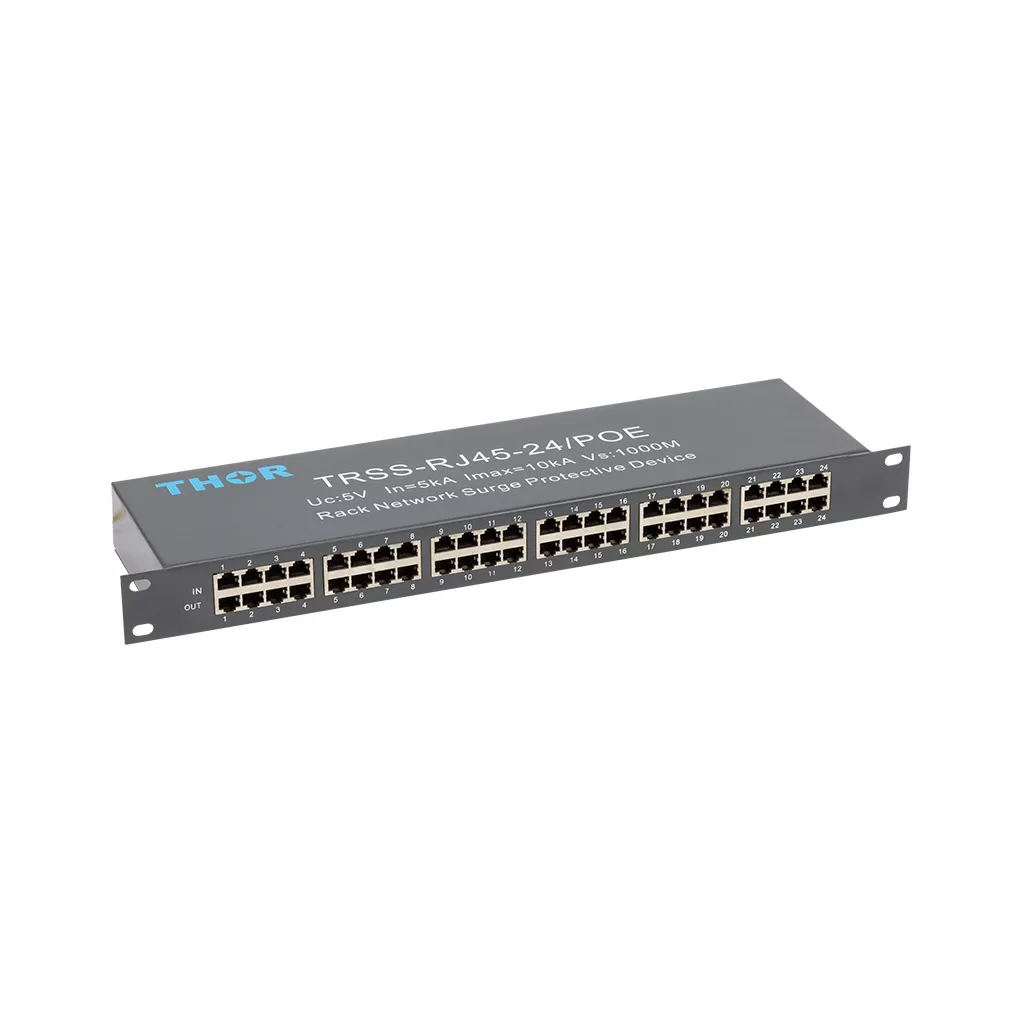

The TRSS-RJ45-24 is a professional-grade Surge Protection Device specifically engineered for high-capacity networking environments requiring maximum port density in a 1U rack space. Featuring 24 independent ports, this device provides uncompromising protection for enterprise-level Ethernet systems—including high-speed switches, network servers, and integrated communication hubs—against lightning-induced surges. By utilizing a sophisticated circuit design, the TRSS-RJ45-24 ensures seamless Gigabit data transmission up to 1000Mbps across all channels, maintaining an exceptionally low insertion loss of <= 0.5dB for optimal network performance.
Advanced High-Density Protection for Industrial Reliability Designed to meet stringent industrial requirements, the TRSS-RJ45-24 provides full 8-line protection per port, ensuring both data and PoE power paths are shielded from transient events. This Surge Protection Device is capable of handling a nominal discharge current (In) of 5kA and a maximum discharge current (Imax) of 10kA, effectively diverting harmful energy away from sensitive equipment interfaces. Fully compliant with international standards IEC 61643-21 and EN 61643-21, this high-port-density SPD is the ideal choice for mission-critical network protection in surge-prone or lightning-active regions.
Applications
High-capacity enterprise intranets and data centers requiring consolidated 24-port surge shielding.
Centralized management of PoE-powered devices including VoIP phones, wireless access points, and IP cameras.
Large-scale infrastructure projects requiring standardized rack-mount protection for communication networks.
IT environments where space-saving 1U modular designs are essential for organized cabinet wiring.
Mission-critical networking systems in commercial facilities needing professional-grade Surge Protection Device technology.
| Model | TRSS-RJ45 | TRSS-RJ45/16 For 19” Cabinet Rack |
TRSS-RJ45/24 For 19” Cabinet Rack |
| Material/Ports numbers | PA66/Aluminum/single port | Aluminum/16 ports | Aluminum/24 ports |
| Nominal volatge (Un) | 48 V | ||
| Maximum operating voltage (d.c.) (Uc) | 50 V | ||
| Maximum operating voltage (a.c.) ( Uc) | 34 V | ||
| Maximum operating voltage (d.c.) pair-pai(PoE) (Uc) | 57 V | ||
| Nominal current ( IL) | 1 A | ||
| Current flow (8/20μs)(L-L) | 5 kA | ||
| Current flow (8/20μs)(L-PE) | 10 kA | ||
| Voltage protection level (L-L) ( Up) | 60 V | ||
| Voltage protection level (L-PE) ( Up) | 500 V | ||
| Cut-off frequency | 250 MHz | ||
| Insertion loss at 250 MHz (1000Mpbs) | ≤ 0,5 dB | ||
| Connection (input/ output) | RJ45 socket/ RJ45 socket | ||
| Pinning | Data:1/2/3/6; PoE:4/5/7/8 | ||
| Response time ( ta) | 25ns | ||
| Degree of protection | IP20 | ||
| Range of operating temperatures (min/max) | -40℃/70℃ | ||
| Humidity range | 5%-95% | ||
| According to standard | EN 61643-21:2012, IEC 61643-21:2011 | ||
