Why MOVs Are Critical to Modern Surge Protection
As modern electronic equipment continues to evolve toward higher integration and sensitivity, its tolerance for voltage fluctuations has significantly declined. Events such as lightning strikes, utility switching operations, or faults in the power grid can induce transient overvoltages that pose serious threats to electronic systems.
Surge protection devices (SPDs) are vital for mitigating these risks—and at the heart of most SPDs lies the metal oxide varistor (MOV). With its highly nonlinear voltage-current behavior and nanosecond-level response time, the MOV is capable of clamping dangerous surges and absorbing energy before it reaches sensitive downstream components.
In this comprehensive guide, we’ll examine the MOV’s structure, performance metrics, limitations, real-world applications, and the risks of using non-standard MOVs in surge protection systems.
Can Metal Oxide Varistors Prevent Lightning Damage?
The Nature of Lightning Surges
Lightning is a powerful natural phenomenon capable of generating transient overvoltages ranging from thousands to tens of thousands of volts. These surges can propagate into systems through:
Power lines
Communication lines
Ground loops
Inductive coupling
To protect against lightning, a layered defense is essential. While direct lightning strikes require external protection like lightning rods and grounding systems, indirect lightning surges (induced lightning) are a major target for MOV-based protection.
MOV’s Role in Lightning Protection
MOVs cannot block direct lightning currents—but they are highly effective in mitigating the effects of induced overvoltages generated by lightning electromagnetic pulses (LEMPs). These overvoltages are typically superimposed on power or signal lines and manifest as high-energy, fast-rising transients.
Key strengths of MOVs in lightning protection:
Nanosecond response times: Fast enough to clamp surges before they propagate
High surge energy tolerance: Capable of handling 8/20μs or even 10/350μs waveform pulses
Voltage clamping ability: Reduces overvoltage levels from several kilovolts down to a few hundred volts
However, their performance has limits:
Energy Capacity: MOVs have finite surge ratings. For extremely high-energy pulses, a single MOV may fail without proper coordination or backup protection.
Residual Voltage: The clamping voltage can still exceed the withstand voltage of some sensitive equipment, making multi-stage protection necessary.
The Layered Defense Approach (3-Stage Protection)
To ensure comprehensive lightning protection, SPDs based on MOVs are deployed as part of a multi-layered protection system, typically categorized into three levels:
| Level | Location | Components | Purpose |
| 1 | Outside the building | Lightning rod, down conductor, grounding | Redirects direct strikes to earth |
| 2 | Main power entry (distribution) | Type 1 or Type 2 SPD (MOV + GDT) | Clamps incoming surges |
| 3 | End-user devices or terminals | TVS diode, filter, compact SPD (MOV-based) | Protects sensitive electronic |
Table 1 – Multi-Layer Surge Protection Levels and Components
Surge protection works like flood control: the lightning rod acts as the dam to block direct strikes, the SPD serves as the spillway to divert surge energy, and terminal protection is the sandbag barrier shielding sensitive equipment. Only when all three layers work together can lightning-induced surges be effectively contained.

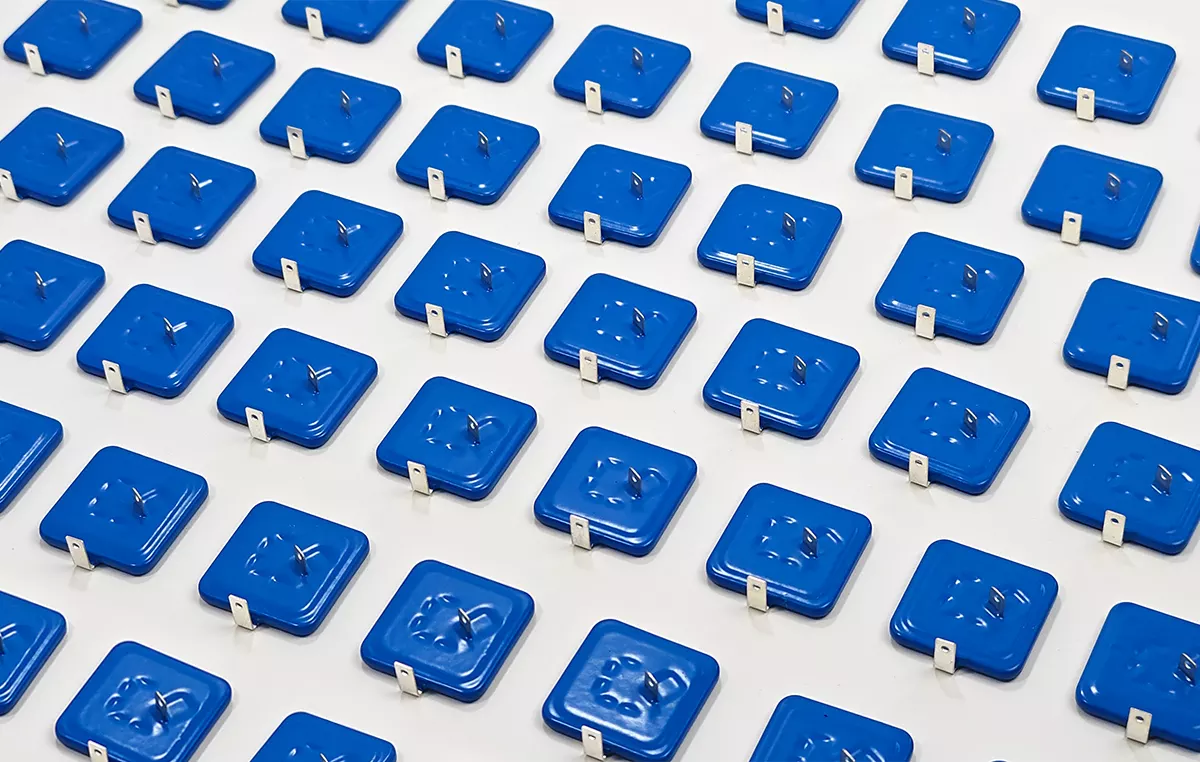

How Metal Oxide Varistors Work: Structure and Key Characteristics
Basic Structure and Operating Principle
A metal oxide varistor (MOV) is a voltage-dependent nonlinear resistor that exhibits a sharp change in resistance with voltage. Its core is composed of sintered zinc oxide (ZnO) grains, along with small quantities of other metal oxides like bismuth (Bi₂O₃) and cobalt (Co₂O₃). These grains form a structure of multiple semiconductor junctions, acting like a network of back-to-back diodes.
Under normal operating voltage, the MOV exhibits very high impedance, allowing only microamperes of leakage current. When the voltage exceeds its threshold value (varistor voltage or V₁mA), the junctions break down, causing the MOV to switch into a low-impedance state, effectively shorting the surge current and clamping the overvoltage.
The transition occurs within nanoseconds, making MOVs ideal for protecting against fast transients like those induced by switching operations or nearby lightning strikes.
Key Parameters of MOVs
Understanding MOV performance starts with knowing its essential electrical characteristics. Here are the most critical ones:
| Parameter | Description |
| Varistor Voltage (V₁mA) | The voltage measured when 1mA DC flows through the MOV. Defines its clamping threshold. |
| Maximum Surge Current (In) | The peak current (typically 8/20μs waveform) the MOV can withstand without damage. |
| Clamping Voltage (Vc) | The voltage the MOV limits a surge to under specific test conditions. |
| Energy Absorption (J) | Measured in joules, this is the amount of energy the MOV can dissipate in a single event. |
| Response Time | Usually <25ns—faster than many other protective components like GDTs. |
| Leakage Current | The small current that flows through the MOV under normal voltage; should remain stable over time. |
| Nonlinear Coefficient (α) | Indicates how sharply resistance decreases with increasing voltage. The higher the α, the better the MOV clamps. |
Table 2 – Key Electrical Parameters of Metal Oxide Varistors (MOVs)
These parameters determine how well an MOV will perform under various conditions—and are essential when selecting an MOV for a given application.
MOV in Surge Protection Devices (SPDs): Core Functions and System Integration
The metal oxide varistor isn’t just a component—it is the primary defense mechanism within most surge protection devices (SPDs). Its role is both fundamental and multifaceted.
Fast Response and Voltage Clamping
MOVs are renowned for their ultra-fast reaction times—typically less than 25 nanoseconds. As soon as a surge voltage appears (e.g. from a lightning-induced 1.2/50μs waveform), the MOV activates almost instantaneously, clamping the spike to a safe level—often reducing a multi-kilovolt surge to a few hundred volts.
Use Case Example:
In consumer or industrial applications, a surge of 4,000V can be clamped to 600V or lower by a correctly rated MOV, preventing damage to microcontrollers, ICs, or power supplies.
High Energy Absorption Capability
MOVs are capable of withstanding significant energy loads. In high-energy waveforms such as 10/350μs (used to simulate lightning currents), a single MOV can handle surge currents exceeding 20 kA. In critical applications, multiple MOVs are often connected in parallel to increase the system’s energy-handling capacity.
MOVs are frequently combined with:
Gas Discharge Tubes (GDTs) for initial energy diversion
TVS Diodes for final voltage trimming
Thermal disconnects for safety in case of failure
Self-Recovery Capability
Unlike some protective components that degrade after each event, an MOV typically recovers to its high-impedance state automatically after absorbing a minor surge. This allows the device to remain functional without manual reset.
However, repeated large surges can degrade the material, leading to increased leakage current or permanent failure—this is why MOV-based SPDs often include thermal fuses or disconnectors.
Cost Efficiency and Versatility
MOVs offer an excellent balance of performance and cost, which is why they’re widely adopted in:
AC and DC power systems
Ethernet and signal lines
Consumer electronics
Industrial automation panels
Compared to TVS diodes (ideal for low-energy, precision applications) or GDTs (used for high-energy but slower surges), MOVs offer broad-spectrum protection at a much lower cost per device.
| Component Type | Response Time | Energy Handling | Voltage Clamping Precision | Best Use Case |
| MOV | <25 ns | Moderate–High | Moderate | General-purpose surge suppression |
| TVS Diode | <1 ns | Low–Moderate | High | Sensitive electronics, data lines |
| GDT | ~100 ns–µs | Very High | Low | High-energy surges, lightning arrest |
Table 3. Comparison of Common SPD Components and Their Functions
Real-World Applications of MOV-Based Surge Protection
The versatility and affordability of MOVs make them ideal for a wide range of electrical and electronic protection scenarios. From consumer electronics to industrial power systems, MOVs play a critical role in mitigating the risks posed by transient overvoltages.
Low-Voltage Equipment Protection (e.g. Routers, Surveillance Devices)
In residential and commercial environments, sensitive devices such as routers, switches, IP cameras, and VoIP terminals are vulnerable to transient surges caused by nearby lightning or power fluctuations. To protect these:
A MOV is typically installed across the AC input line inside the device or power strip.
Alternatively, an RJ45 Ethernet surge protector integrates an MOV and gas discharge tube (GDT) to protect the network interface.
Result:
MOVs significantly reduce service disruptions and hardware failures caused by induced overvoltages.

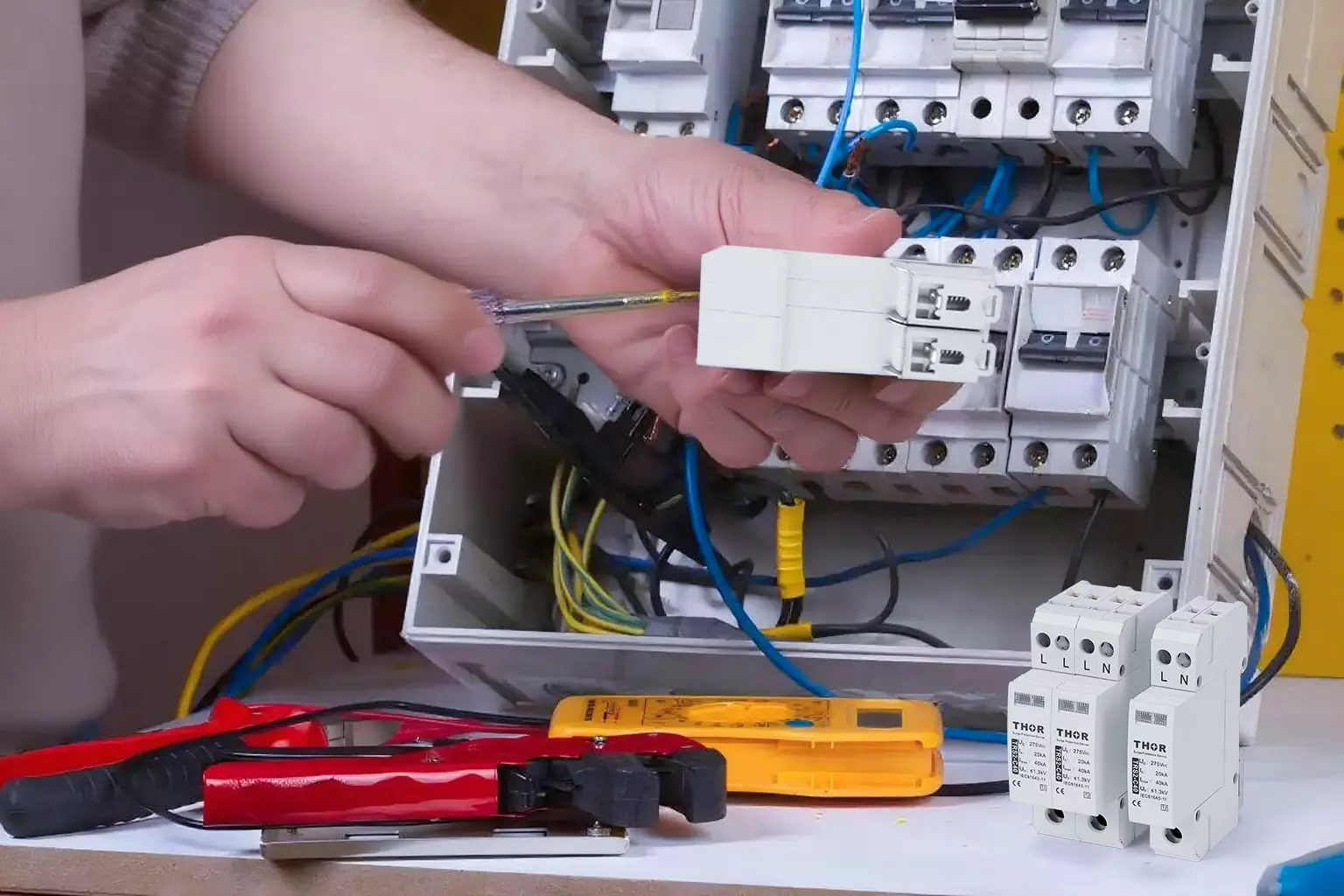

Surge Protection in Power Distribution Systems
MOVs are a staple in low-voltage distribution cabinets within substations and commercial buildings.

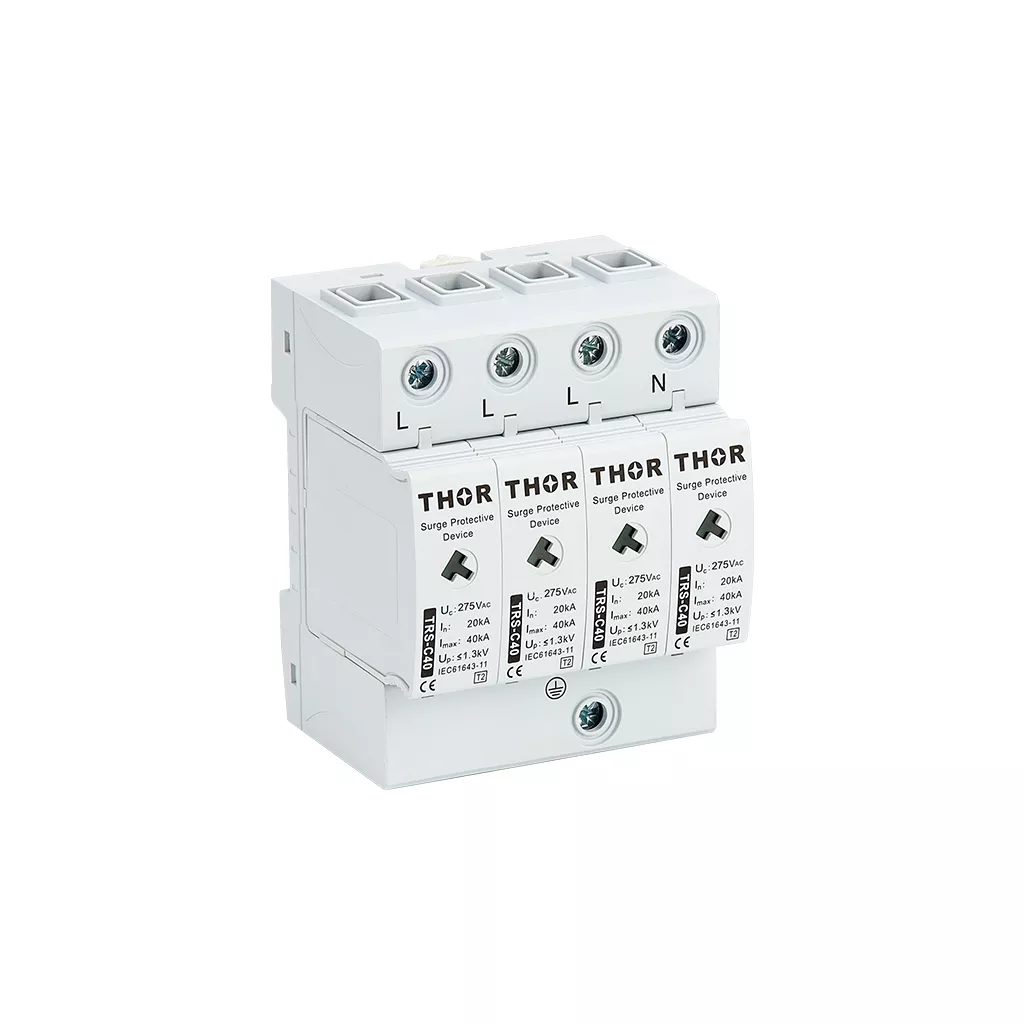

Here, they are configured as part of a Type 2 SPD, clamping lightning-induced surges and switching transients.
Often combined with GDTs or spark gaps in Type 1+2 hybrid configurations to handle both high-energy impulses and residual voltages.
Field data shows:
Deploying MOV-based SPDs at key nodes in power distribution networks can reduce lightning-related equipment failures by over 90%.
Surge Protection for Telecom & 5G Base Stations
5G antennas, baseband units, and tower-mounted amplifiers are especially vulnerable to surges from exposed antenna cables.
A typical protection architecture involves:
First stage: GDT or spark gap at the antenna feeder interface
Second stage: MOV to clamp residual voltage
Optional third stage: TVS diode for precision protection
This multi-stage MOV-centric strategy keeps residual surge voltages under 50V, preserving the stability of signal transmission and preventing RF component failures.
Home Appliance Surge Protection
Devices such as air conditioners, TVs, washing machines, and refrigerators often contain integrated MOV modules at their power inputs.
These MOVs guard against voltage fluctuations caused by grid instability or nearby equipment switching.
MOVs in home devices are typically rated for 8/20μs surges, handling several thousand amperes.
Tests show:
MOV modules compliant with IEC 61643-11 standards can divert over 99% of incoming surge current, protecting mainboards and control circuits from breakdown.
Renewable Energy Systems: Solar Inverters and Battery Storage
Photovoltaic (PV) and battery energy storage systems face increasing risks from lightning strikes and utility disturbances, especially on their DC sides.
MOVs are installed in parallel at:
PV array output terminals
Inverter DC input ports
Battery charge controllers
For added safety, these MOVs are coupled with:
DC fuses
Thermal disconnects
Fast-acting switches
This ensures that even if the MOV fails from overheat or prolonged stress, the circuit is safely broken before fire or damage occurs.
Limitations of MOVs and Strategies for Improvement
While metal oxide varistors (MOVs) offer fast response and broad surge suppression capabilities, they are not without flaws. Engineers must understand these limitations to design systems that are both safe and reliable under long-term and extreme conditions.
Aging and Lifetime Degradation
MOVs degrade over time, especially under repeated surge stress or continuous exposure to elevated voltage.
● Symptoms of aging include:
● Increased leakage current
● Elevated clamping voltage (residual voltage)
● Drift in varistor voltage (V₁mA)
Rule of thumb:
If the leakage current doubles from its initial value, the MOV should be replaced.
Solution:
● Use MOVs with higher energy ratings than the expected surge environment
● Incorporate scheduled maintenance and leakage testing in critical systems
● Apply rare-earth doping in MOV manufacturing to improve material stability
Thermal Runaway and Fire Hazards

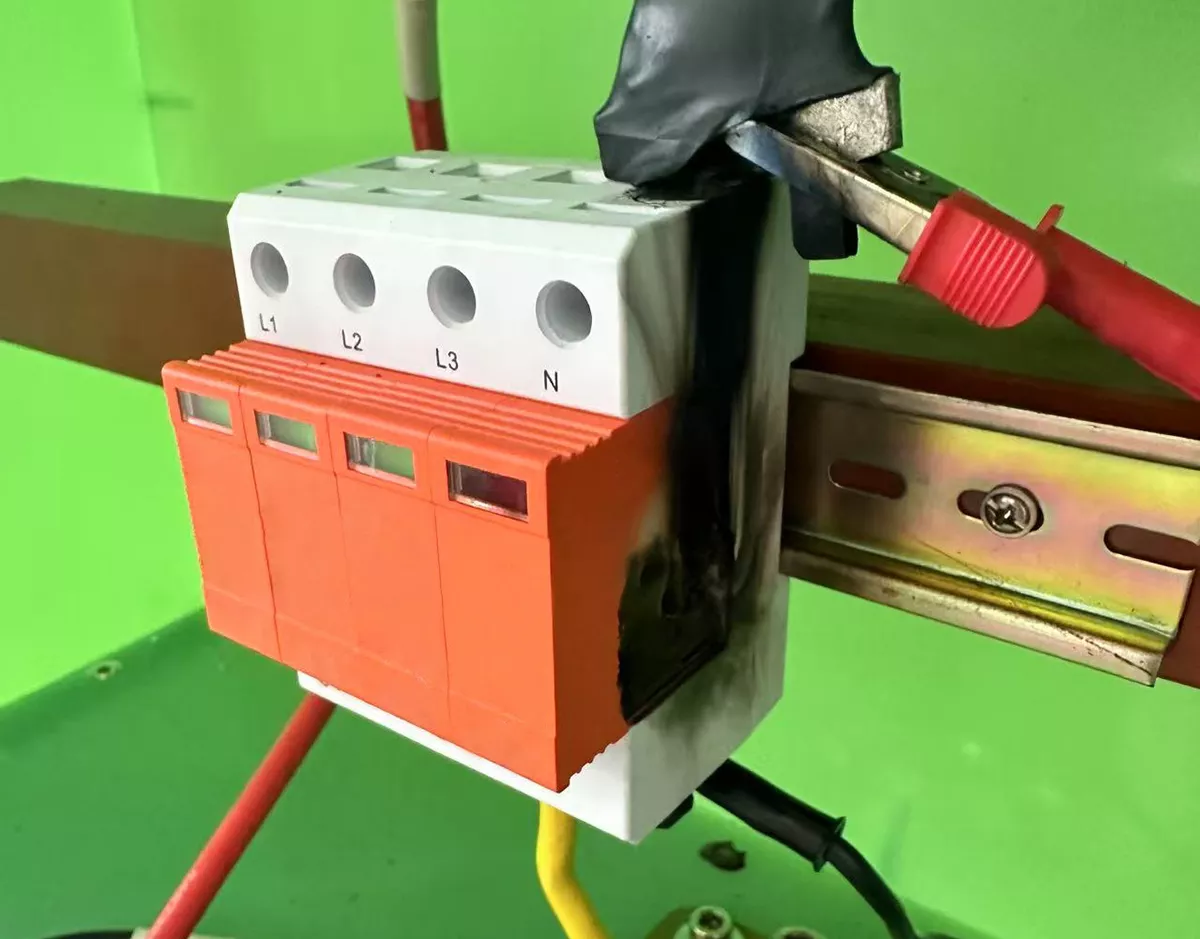

One of the most serious risks with MOVs is thermal runaway—a condition in which sustained overvoltage causes the MOV to overheat, potentially ignite, and damage surrounding equipment.
● MOVs fail in short-circuit mode, unlike fuses or GDTs
● If not disconnected in time, they may smoke, melt, or catch fire
Solution:
● Always pair MOVs with thermal disconnectors, fuses, or circuit breakers
● Use MOVs with integrated thermal protection in plug-in SPD modules
Limitations in High-Frequency Applications
MOVs inherently exhibit parasitic capacitance ranging from a few picofarads (pF) to several nanofarads (nF).
● This can distort or attenuate high-frequency or RF signals
● In circuits such as RF receivers or Ethernet ports, this distortion is unacceptable
Solution:
● Use low-capacitance MOVs (typically <10pF) or replace MOVs with TVS diodes in high-speed data lines
Limited Energy Absorption Compared to Primary Arresters
Typical MOVs can handle 5–40 kA surge current (8/20μs), but direct lightning strikes can deliver hundreds of kA.
● MOVs alone are not sufficient for primary lightning protection
● They are most effective as Type 2 or Type 3 SPD elements
Solution:
Incorporate a Type 1 SPD (e.g. spark gap or ZnO block lightning arrester) upstream to absorb bulk surge energy
Residual Voltage May Still Damage Sensitive Equipment
While MOVs clamp voltages to safe levels for general equipment, the residual voltage (Vc) may still be too high for:
● Microcontrollers
● Sensor IC
● Communication chipsets
Solution:
Adopt multi-stage surge protection:
● Stage 1: GDT or spark gap
● Stage 2: MOV (bulk energy absorption)
● Stage 3: TVS diode (precise voltage clamping)
Risk of Catastrophic Failure Without Isolation
When an MOV fails, it often shorts completely—this can:
● Trigger continuous current draw
● Overheat and damage the board
● Trip upstream power supplies
Solution:
● Add series fuses or thermal disconnectors
● Use MOVs only in systems with proper failure isolation mechanisms
| Limitation | Root Cause | Recommended Solution |
| Aging & voltage drift | Repeated surges, thermal stress | Use high-quality MOVs, schedule leakage tests |
| Thermal runaway | Prolonged overvoltage | Add thermal fuse or disconnector |
| Parasitic capacitance | Intrinsic device structure | Use low-capacitance MOVs or switch to TVS diodes |
| Surge capacity limits | Small MOV surface area | Pair with primary arresters (GDTs, spark gaps) |
| High residual voltage | Limited clamping accuracy | Add TVS diodes downstream for final-stage protection |
| Short-circuit failure mode | MOV aging or overload | Use fuses, breakers, or MOVs with built-in disconnects |
Table 5 – Common MOV Limitations and Engineering Solutions
Future Trends in MOV Technology and SPD Integration
As the demand for higher-performing and smarter surge protection grows—especially in fields like 5G, smart grids, electric vehicles, and renewable energy—traditional MOVs are evolving. Researchers and manufacturers are exploring new materials, smarter SPD architectures, and hybrid device solutions.
Advanced Materials: Toward Nano-Scale ZnO and Rare-Earth Doping

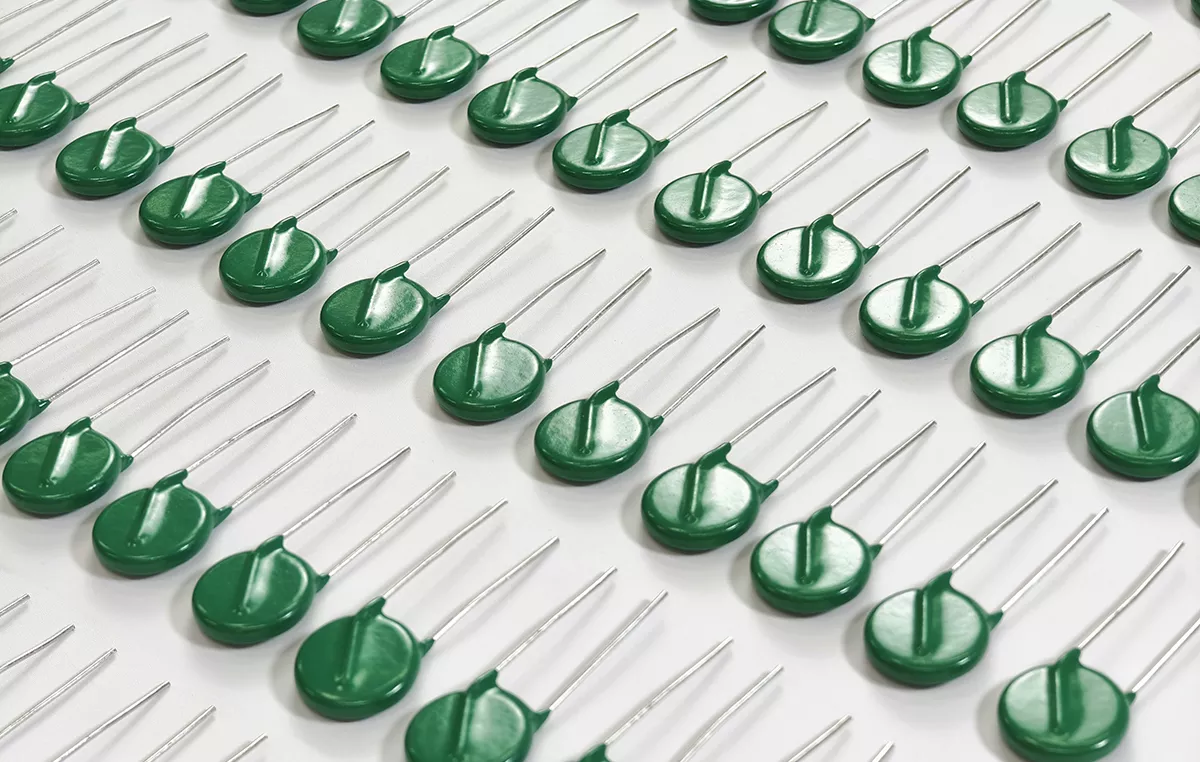

The core of MOV performance lies in its zinc oxide grain structure. Future improvements are driven by:
● Nano-ZnO composites: Increasing the density and uniformity of grain boundaries, improving clamping accuracy and lowering residual voltage
● Rare-earth element doping: Enhancing thermal stability and resistance to aging
● Low-leakage formulations: Reducing standby current and improving MOV longevity
Result:
MOVs will become more energy-efficient, longer-lasting, and suitable for harsher surge environments.
Intelligent SPDs: Real-Time Monitoring and Predictive Maintenance
Traditional MOVs are passive devices—but the next generation of smart SPDs will feature:
● Integrated thermal sensors to monitor internal temperature rise
● Leakage current sensors to detect early-stage degradation
● Surge event logging via microcontrollers or edge IoT modules
● Remote alert systems for replacement scheduling and predictive maintenance
Use Cases:
● Smart homes and buildings
● Data centers with uptime-sensitive loads
● Telecom base stations in remote or unmanned locations
Hybrid Protection Schemes with Wide Bandgap Semiconductors
MOVs work well in tandem with new-generation materials such as:
● Silicon Carbide (SiC): Used in high-power electronics, SiC-based suppressors offer high thermal resistance and fast switching
● Gallium Nitride (GaN): Found in fast-charging systems and EVs, GaN’s sensitivity to transients demands low-residual hybrid MOV+TVS+GaN-compatible protection
Trend:
Hybrid SPD modules may integrate MOVs for energy absorption, and SiC/GaN circuits for fast, precision-level clamping.
System-Level Optimization: Custom SPD Design per Application
Instead of one-size-fits-all protection, SPD manufacturers now aim for:
● Application-specific MOV tuning (e.g., different response curves for PV inverters vs EV chargers)
● Compact SPD modules for integration into tight enclosures (e.g. DIN rail or PCB-level)
● Modular designs allowing replacement of degraded MOV cartridges without dismantling the whole unit
Result:
Future SPDs will be smaller, smarter, and more maintainable, while offering tailored protection performance across industries.
| Trend Area | Description | Impact on Protection Systems |
| Nano-ZnO Material | Smaller grain size, better junction density | Higher energy absorption, faster response |
| Smart SPD Integration | Thermal, leakage, and surge event monitoring via IoT | Predictive maintenance and remote management |
| SiC/GaN Compatibility | Pairing MOVs with wide-bandgap semiconductors | Improved response in EVs, chargers, and power electronics |
| Modular SPD Design | Replaceable MOV cartridges, compact formats | Lower downtime, higher serviceability |
| Application-Specific Tuning | Custom MOVs per equipment class | Optimized clamping and longer device life |
Table 6 – Emerging Trends in MOV and SPD Technology
Conclusion: The Role of MOVs in Modern Surge Protection
The metal oxide varistor (MOV) stands as the foundation of most surge protection devices, thanks to its fast response time, strong energy absorption capacity, and cost-effectiveness. It plays a vital role in defending against transient overvoltages in everything from consumer electronics to industrial power systems, telecom infrastructure, and renewable energy applications.
However, MOVs are not flawless. They age under stress, are prone to thermal failure, and offer limited precision in clamping. These limitations make it critical to use MOVs within a multi-layered surge protection architecture, often in coordination with gas discharge tubes (GDTs), TVS diodes, and thermal disconnectors. Proper fuse protection and system-level design are also essential to ensure reliability and safety.
Looking ahead, the future of MOV-based protection is shifting toward smarter, more resilient, and application-specific solutions. With advancements in materials (like nano-ZnO), integration with wide-bandgap semiconductors (SiC/GaN), and IoT-enabled monitoring, MOVs will continue to evolve to meet the demands of smart grids, 5G, electric vehicles, and beyond.
For engineers, system designers, and decision-makers, it’s no longer just about whether to use an MOV—but how to select the right MOV, pair it with the right components, and design for long-term performance in complex electrical environments.
