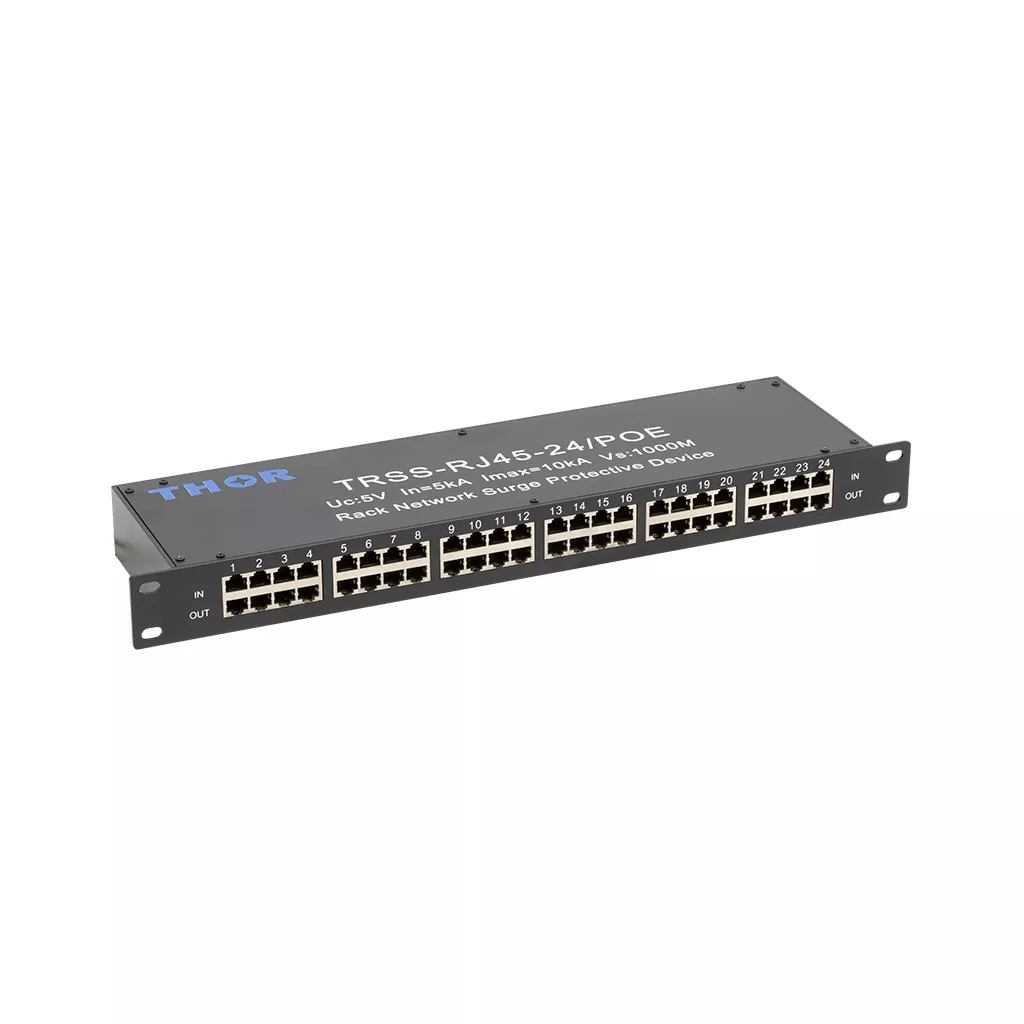

24 Port Rack-Mount Gigabit PoE+ Surge Protective Device with Aluminum
Main Features
- Application: High-Density Protection for Data Networks and Ethernet
- Data Rate Support: 1000Mbps (Gigabit Ethernet)
- Mode of Protection: Line-Line, Line-PE
- Max. Operating Voltage (PoE): 57Vdc
- Surge Discharge Ratings: In (L-L): 5kA, In (L-PE): 10kA
- Voltage Protection Level (L-L): 60V
- Voltage Protection Level (L-PE): 500V
- Series Load Current: 1A per port
- Connection: 24 x RJ45 Sockets (In/Out)
- Pinning Protection: All 8 lines protected (Data: 1/2/3/6, PoE: 4/5/7/8)
- Compliance: EN 61643-21:2012, IEC 61643-21:2011
The TRSS-RJ45-24 (Aluminum) is a professional-grade Surge Protection Device specifically engineered for maximum port capacity within a rugged, heat-dissipating aluminum enclosure. Designed for 24-port Gigabit Ethernet applications, this 1U rack-mount device provides uncompromising protection for sensitive networking infrastructure—including high-density switches and PoE-powered server systems—against lightning surges and line noise. By utilizing a sophisticated aluminum chassis design, the TRSS-RJ45-24 (Aluminum) ensures high-speed data transmission up to 1000Mbps across all 24 channels while maintaining an insertion loss of <= 0.5dB.
Advanced Centralized Shielding for Industrial Reliability Designed to meet stringent industrial requirements, the TRSS-RJ45-24 (Aluminum) provides individual 8-line protection for every port, covering pins 1-8 for full Data and PoE compatibility. This Surge Protection Device is capable of handling a nominal discharge current (In) of 5kA and a maximum discharge current (Imax) of 10kA per channel, ensuring robust protection for large-scale network deployments. Fully compliant with international standards IEC 61643-21 and EN 61643-21, this high-capacity aluminum SPD is a critical safeguard for enterprise-level network uptime in high-risk environments.
Applications
Enterprise-level server rooms requiring high-density 24-port protection in durable aluminum housing.
Centralized PoE+ distribution systems for wireless networks and comprehensive CCTV surveillance arrays.
Industrial automation networks where 24-channel centralized shielding is essential for system stability.
Large-scale telecommunication hubs requiring standardized 19-inch rack-mount Surge Protection Device solutions.
Commercial IT infrastructure requiring professional-grade aluminum-housed protectors for maximum endurance.
| Model | TRSS-RJ45 | TRSS-RJ45/16 For 19” Cabinet Rack |
TRSS-RJ45/24 For 19” Cabinet Rack |
| Material/Ports numbers | PA66/Aluminum/single port | Aluminum/16 ports | Aluminum/24 ports |
| Nominal volatge (Un) | 48 V | ||
| Maximum operating voltage (d.c.) (Uc) | 50 V | ||
| Maximum operating voltage (a.c.) ( Uc) | 34 V | ||
| Maximum operating voltage (d.c.) pair-pai(PoE) (Uc) | 57 V | ||
| Nominal current ( IL) | 1 A | ||
| Current flow (8/20μs)(L-L) | 5 kA | ||
| Current flow (8/20μs)(L-PE) | 10 kA | ||
| Voltage protection level (L-L) ( Up) | 60 V | ||
| Voltage protection level (L-PE) ( Up) | 500 V | ||
| Cut-off frequency | 250 MHz | ||
| Insertion loss at 250 MHz (1000Mpbs) | ≤ 0,5 dB | ||
| Connection (input/ output) | RJ45 socket/ RJ45 socket | ||
| Pinning | Data:1/2/3/6; PoE:4/5/7/8 | ||
| Response time ( ta) | 25ns | ||
| Degree of protection | IP20 | ||
| Range of operating temperatures (min/max) | -40℃/70℃ | ||
| Humidity range | 5%-95% | ||
| According to standard | EN 61643-21:2012, IEC 61643-21:2011 | ||
Rotate the 3D model to inspect the surge protective device from different angles. For detailed technical specifications, electrical ratings and installation information, please refer to the other tabs.
