TRS3-C40

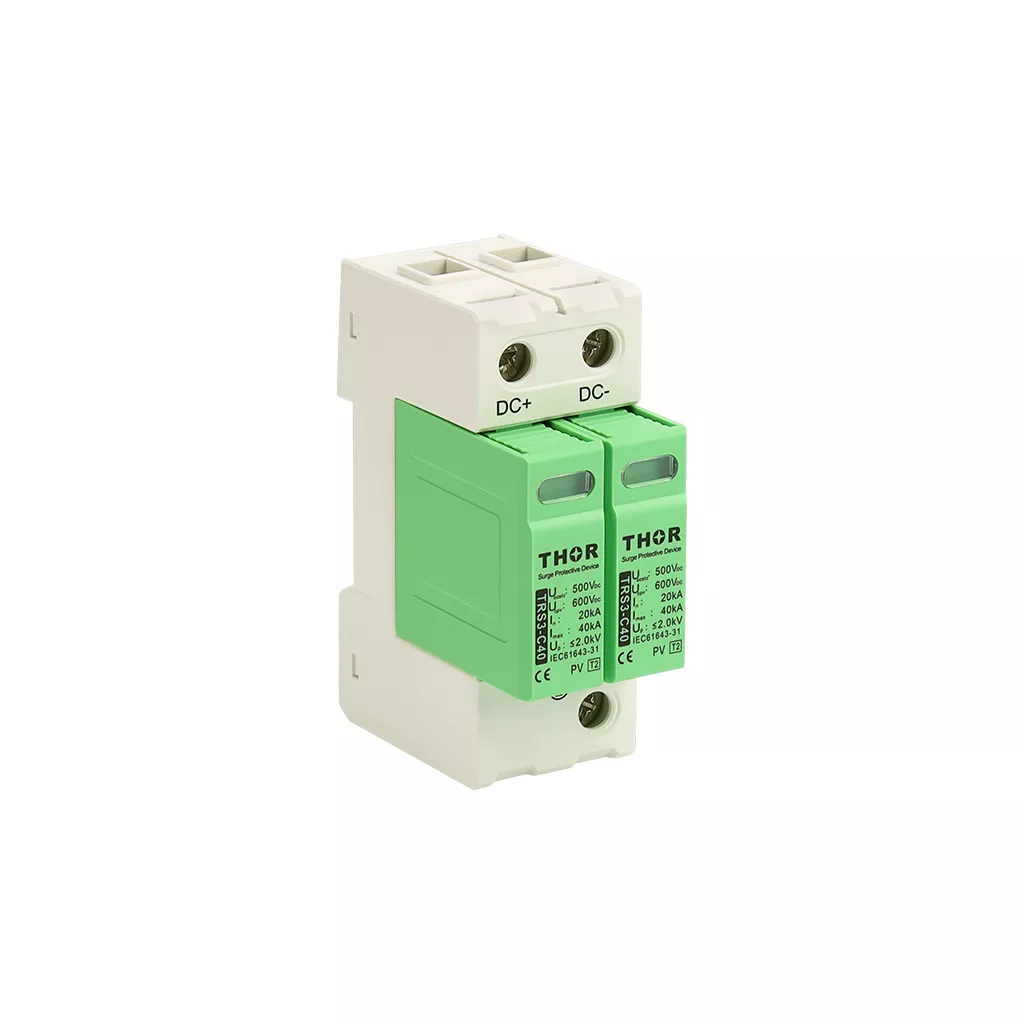

Type 2 PV Surge Protective Device TRS3-C40

Main Features

Nominal discharge current (8/20μs) In: 20kA
Maximum discharge current (8/20μs) Imax: 40kA
Network Systems: (+)-PE, (-)-PE, (+)-(-)
IEC/EN Category: Type 2 / Class II
Protective Elements: High Energy MOV
Housing: Pluggable design
Application: String box, Inverter
Compliance: EN 61643-31:2012, IEC 61643-31:2011

The TRS3-C40 is a dedicated Type 2 DC surge protective device engineered specifically for photovoltaic (PV) power systems.
Designed to protect DC strings and inverters from switching surges and indirect lightning effects, it delivers stable performance across a wide voltage range from 500 VDC up to 1500 VDC.

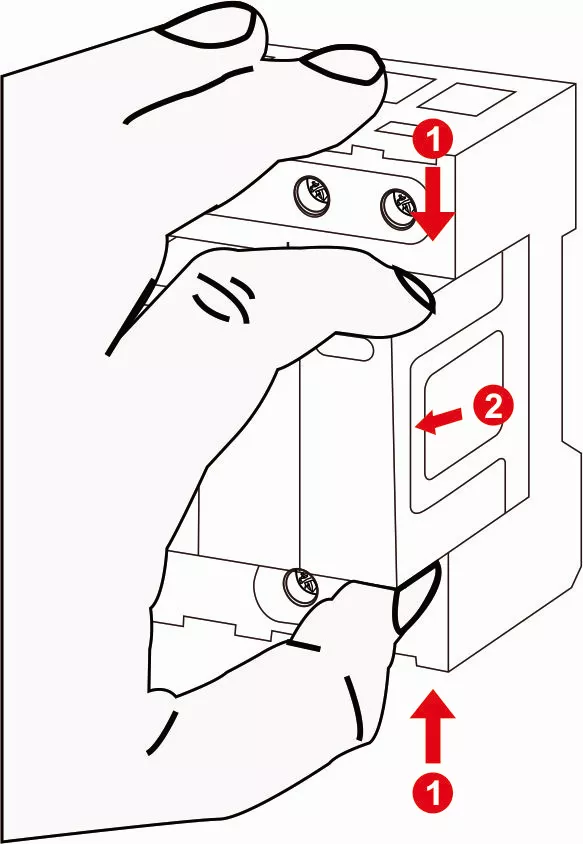

Its compact pluggable-module structure ensures easy replacement and reliable operation within modern solar installations.

Equipped with high-quality MOV-based protection components, the TRS3-C40 offers 20 kA nominal discharge current (8/20 μs) and 40 kA maximum discharge capability, providing strong defense against transient surges commonly seen in PV arrays.
With a low protection level—starting from ≤2.0 kV depending on voltage class—it helps maintain system integrity and extends inverter lifetime by keeping overvoltages well under control.

A red visual fault indicator provides instant status feedback, while optional potential-free remote signaling contacts allow integration with monitoring systems for real-time fault reporting.
Its IP20 enclosure and DIN-rail mounting design enable fast, secure installation inside combiner boxes, inverter cabinets, and DC distribution enclosures.

Engineered for demanding outdoor renewable-energy environments, the TRS3-C40 performs reliably across a wide temperature and humidity range, ensuring long-term stability in both small residential setups and utility-scale solar farms.

Applications

DC string protection for residential, commercial, and utility-scale PV systems
Solar combiner boxes, DC distribution panels, and inverter-side surge protection
PV installations with or without external lightning protection systems (LPS)
High-voltage PV arrays up to 1500 VDC, including modern large-scale deployments
Systems requiring visual fault indication and optional remote alarm integration
Environments where quick, tool-free module replacement improves maintenance efficiency

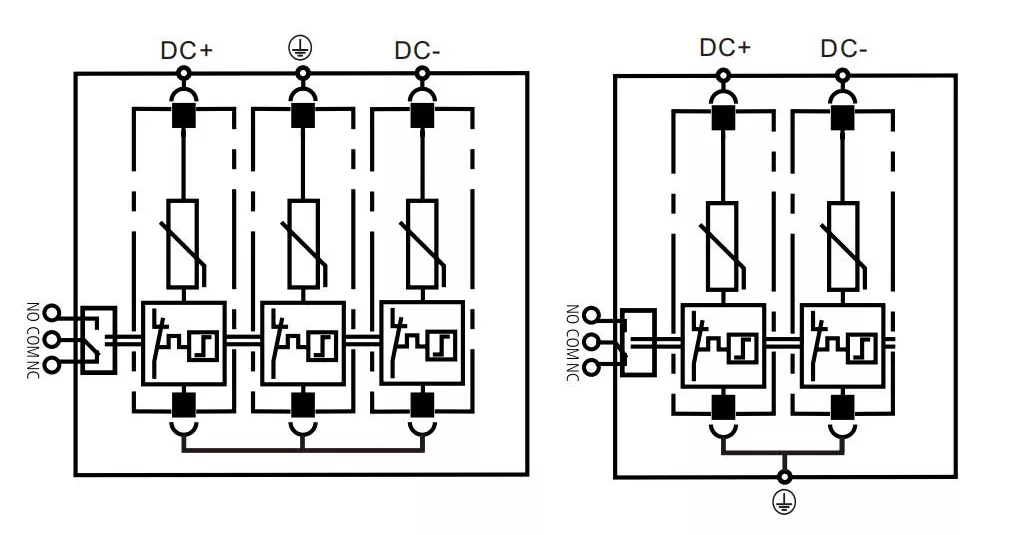

Parameter/Type	TRS3-C40
Parameter/Type	PV connection type	U
Nominal PV Voltage Uocstc	500V DC	600V DC
Max. PV Operating Voltage Ucpv	600V DC	720V DC
Nominal discharge current (8/20μs) In	20kA
Maximum discharge current (8/20μs) Imax	40kA
Voltage protection level mode +/PE, -/PE Up	≤2,0kV	≤2,3kV
Short-circuit current rating Iscpv	100A
Response time ta	<25ns
Cross-section of connected conductors solid(min/max)	16mm²/35mm²
Cross-section of connected conductors stranded(min/max)	16mm²/35mm²
Fault indication	red indication field
Remote indication	potential-free change-over contact
Remote indication contacts	250V/0,5A AC, 250V/0,1A DC
Cross-section of remote indication conductors	1,5mm²
Degree of protection	IP20
Range of operating temperatures (min/max)	-40°C~+70°C
Humidity range	5%~95%
Mounting	DIN rail 35 mm
According to standard	EN 61643-31:2012, IEC 61643-31:2011/T2
Remarks	Other UCPV can be customized.
