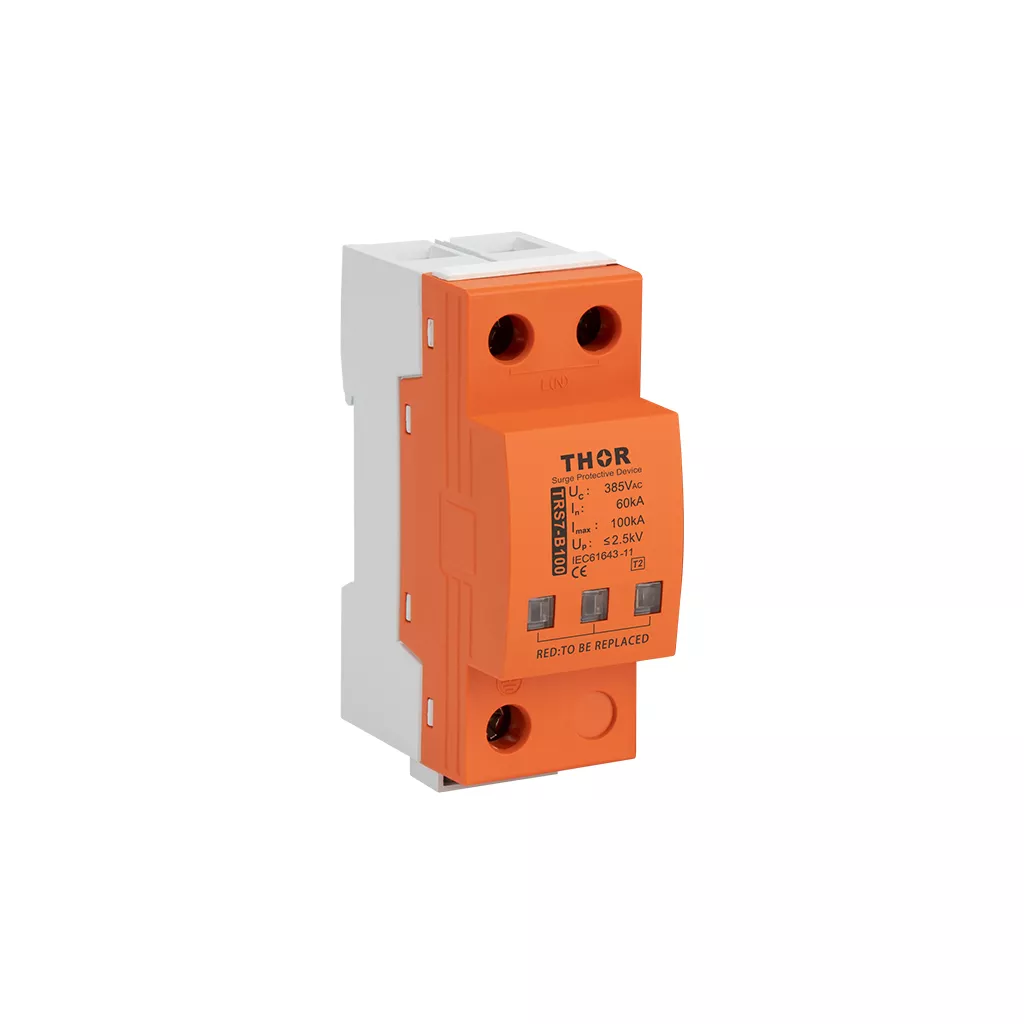

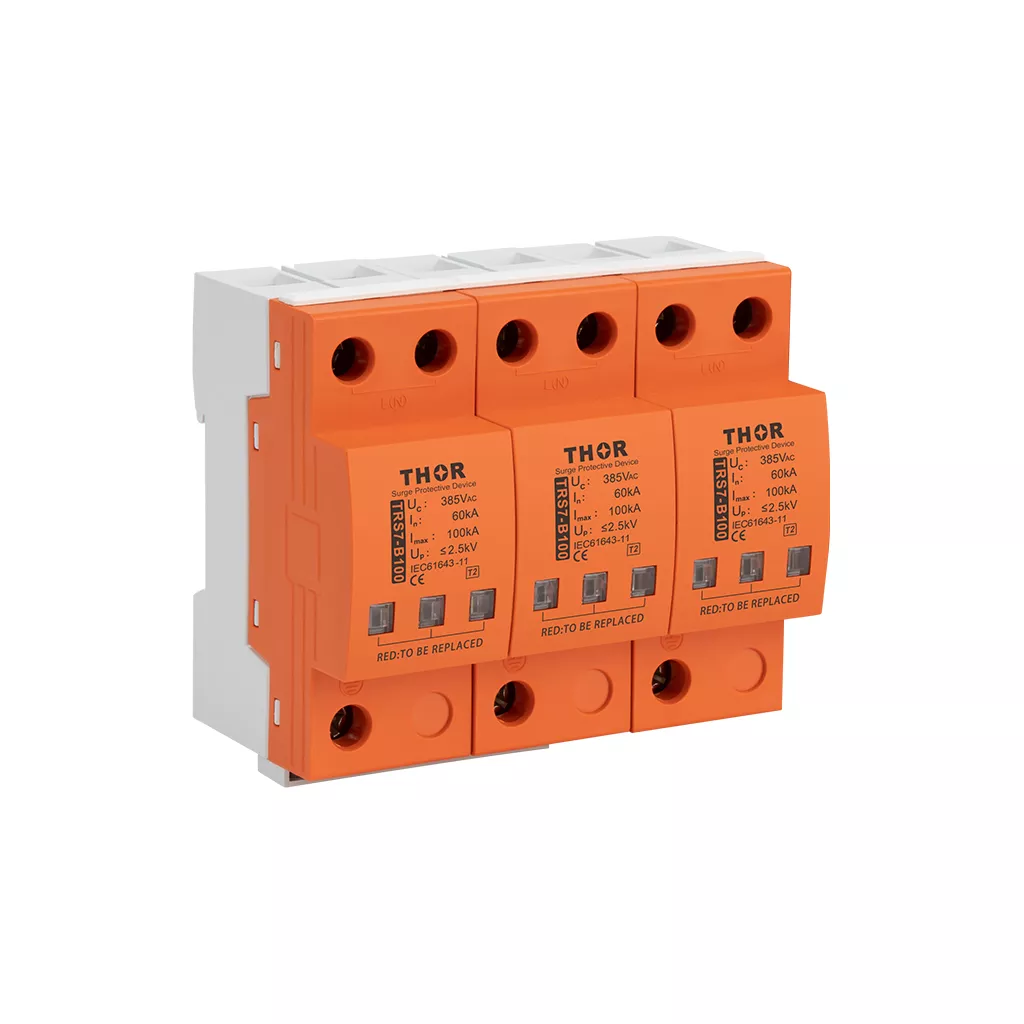

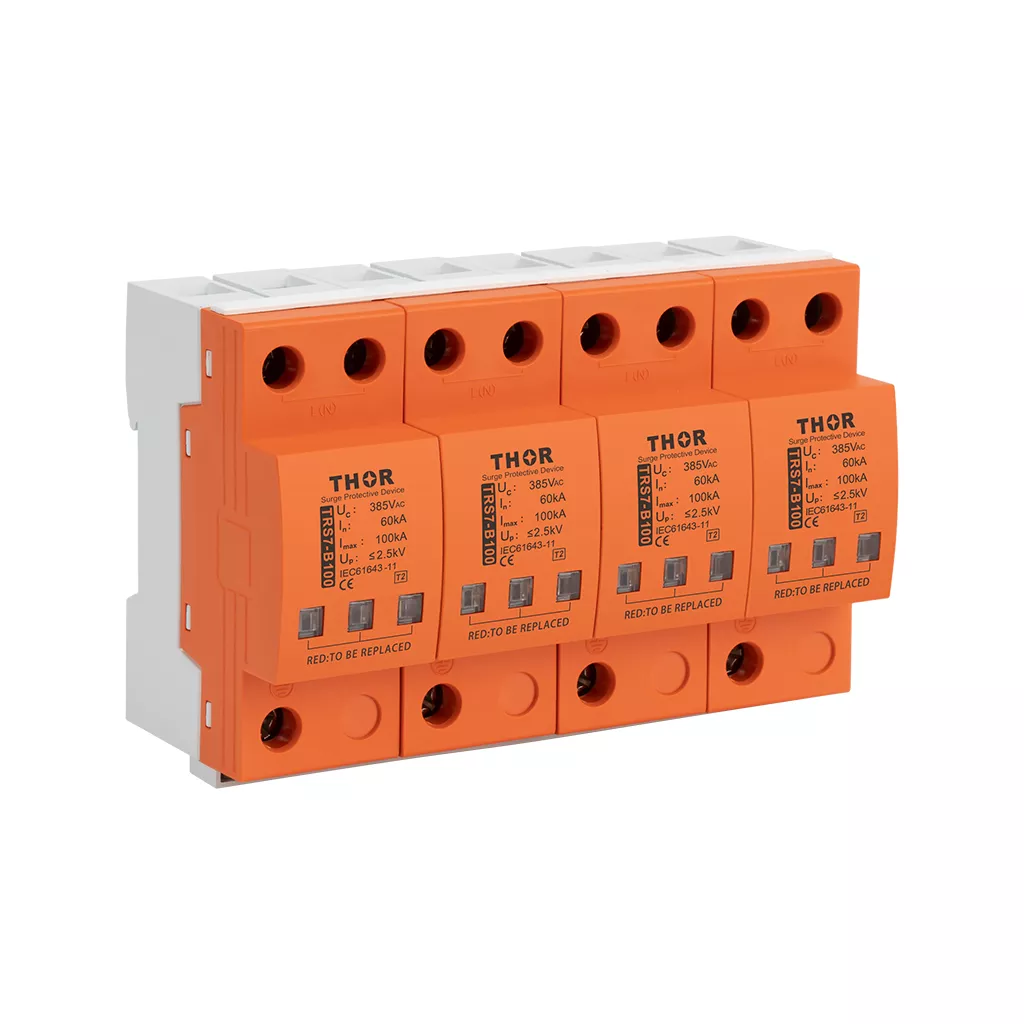

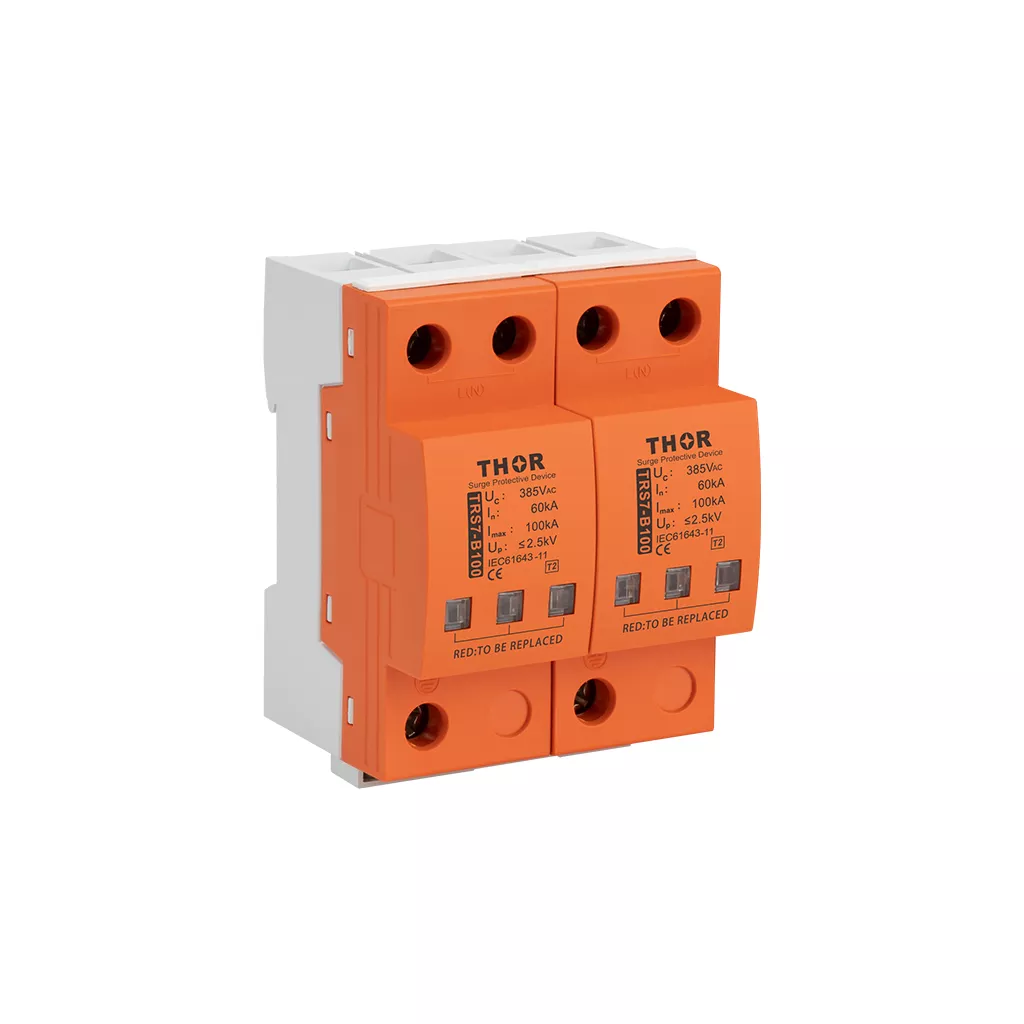

Type 2 AC Surge Protective Device TRS7-B100
Main Features
- Nominal discharge current (8/20μs) In: 60kA
- Maximum discharge current (8/20μs) Imax: 100kA
- Network Systems: TN-S, TT, TN-C-S
- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Class II / Type 2
- Protective Elements: High Energy MOV
- Housing: Pluggable design
- Application: Sub-Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011/T2
The TRS7-B100 is a robust Type 1 surge protective device designed to shield electrical installations from direct lightning currents and high-energy impulsive events.
Engineered for buildings equipped with external lightning protection systems (LPS), it forms the first line of defense for main distribution panels, safeguarding downstream equipment from severe transient threats.
Its specially optimized spark-gap structure ensures extremely high discharge capability with minimal follow current, delivering stable protection even in demanding industrial or outdoor environments.
With a fast response and low residual voltage, the TRS7-B100 helps maintain operational continuity for sensitive electrical networks exposed to frequent lightning activity.
A clear visual status indicator supports quick on-site inspection, while optional remote alarm outputs allow integration into building monitoring platforms.
Compact, maintenance-friendly, and built for long service life, the TRS7-B100 is a dependable choice for critical infrastructure and commercial facilities requiring primary lightning protection.
Applications
Main distribution boards in buildings with external LPS
Industrial facilities and large commercial installations
Outdoor electrical systems exposed to high lightning density
Sites requiring strong Type 1 surge protection at service entrances
Systems benefiting from visual and remote fault monitoring
| Model | TRS7-B80 | TRS7-B100 | TRS7-B120 | TRS7-B150 |
| Nominal volatge (Un) | 380 V AC | |||
| Maximum operating voltage (Uc) | 385 V AC | |||
| Nominal discharge current (8/20μs) (In) | 40 kA | 60 kA | 80 kA | 100 kA |
| Maximum discharge current (8/20μs)( Imax) | 80 kA | 100 kA | 120 kA | 150 kA |
| Voltage protection level (Up) | ≤ 2,4 kV | ≤ 2,5 kV | ≤ 3,0 kV | ≤ 3,5 kV |
| Response time( ta) | < 25ns | |||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | |||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | |||
| Fault indication | red indication field | |||
| Remote indication | potential-free change-over contact | |||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | |||
| Cross-section of remote indication conductors | 1,5 mm2 | |||
| Degree of protection | IP20 | |||
| Range of operating temperatures (min/max) | -40℃~+70℃ | |||
| Humidity range | 5%~95% | |||
| Mounting | DIN rail 35 mm | |||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T2 | |||
| Remarks | Other Uc can be customized.(420V AC, 275V AC, 320V AC, etc.) | |||
