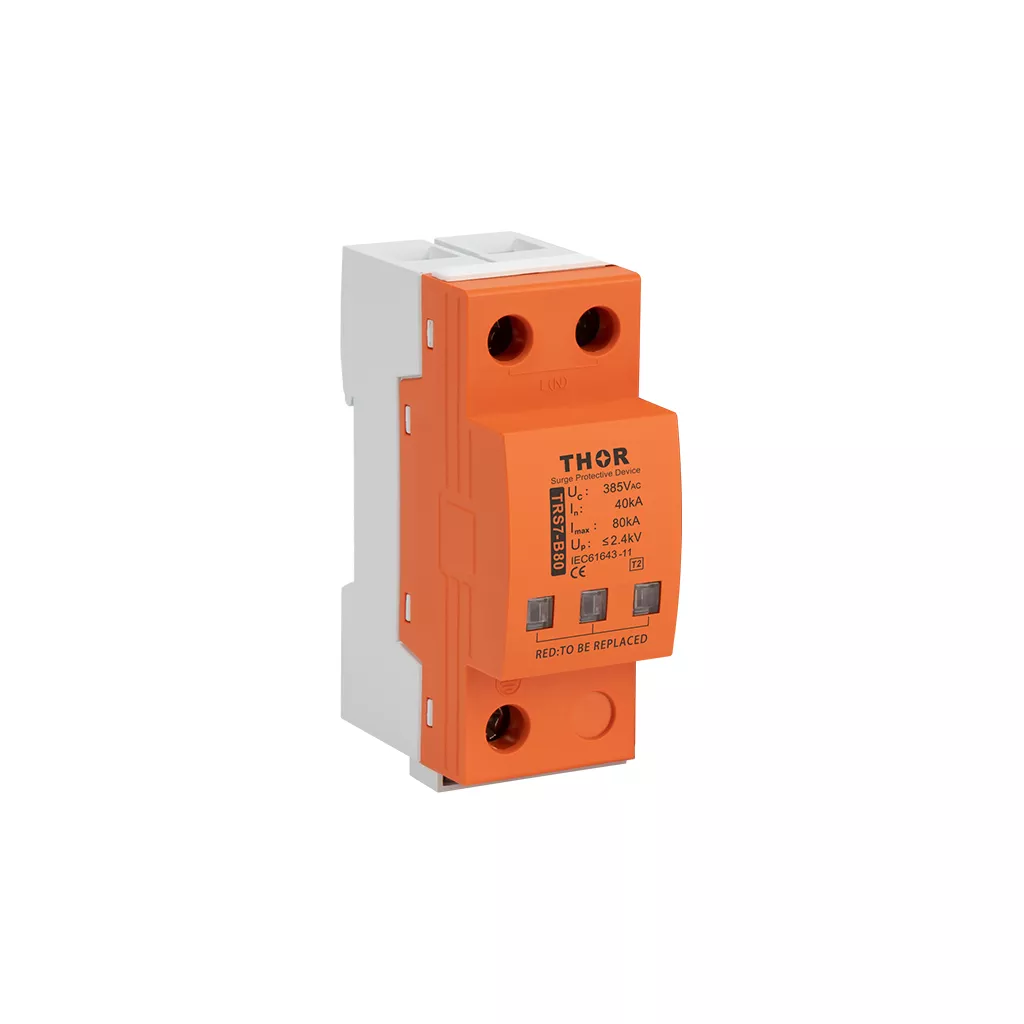

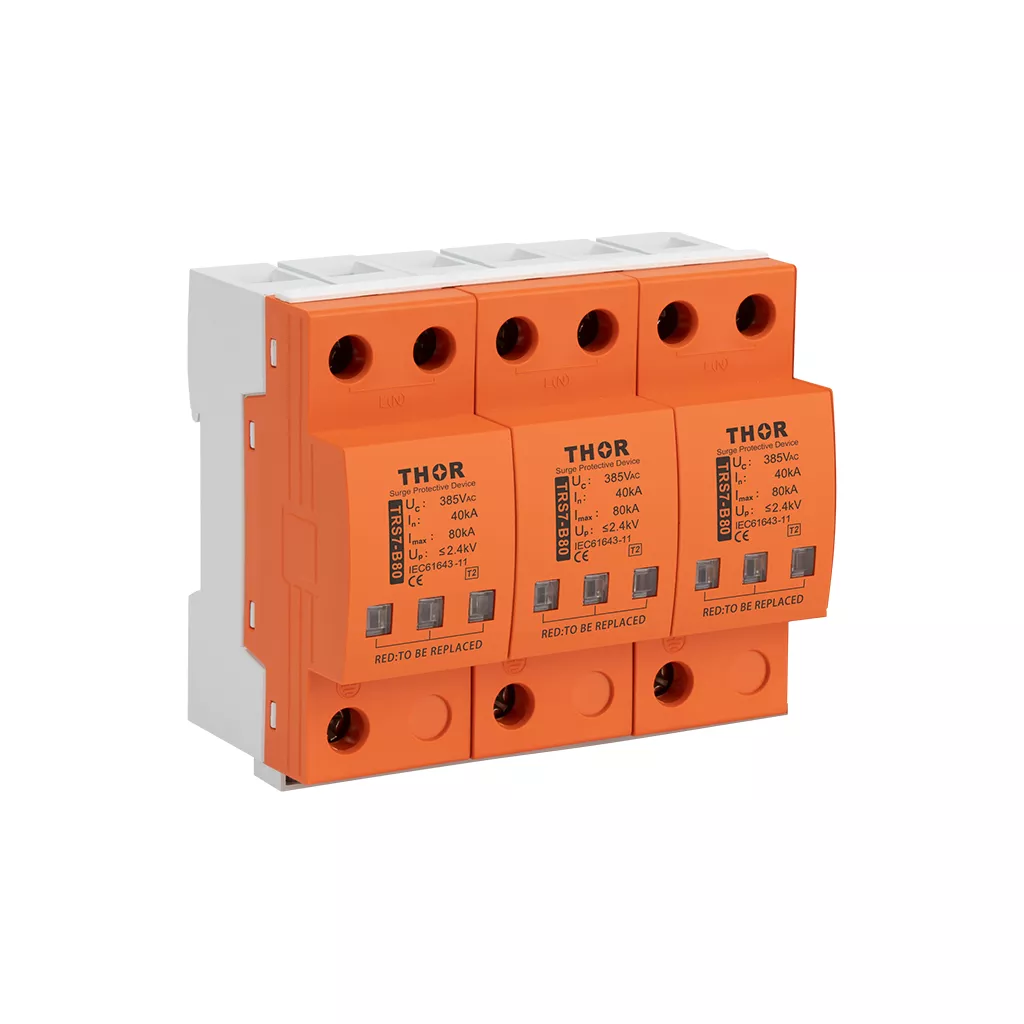

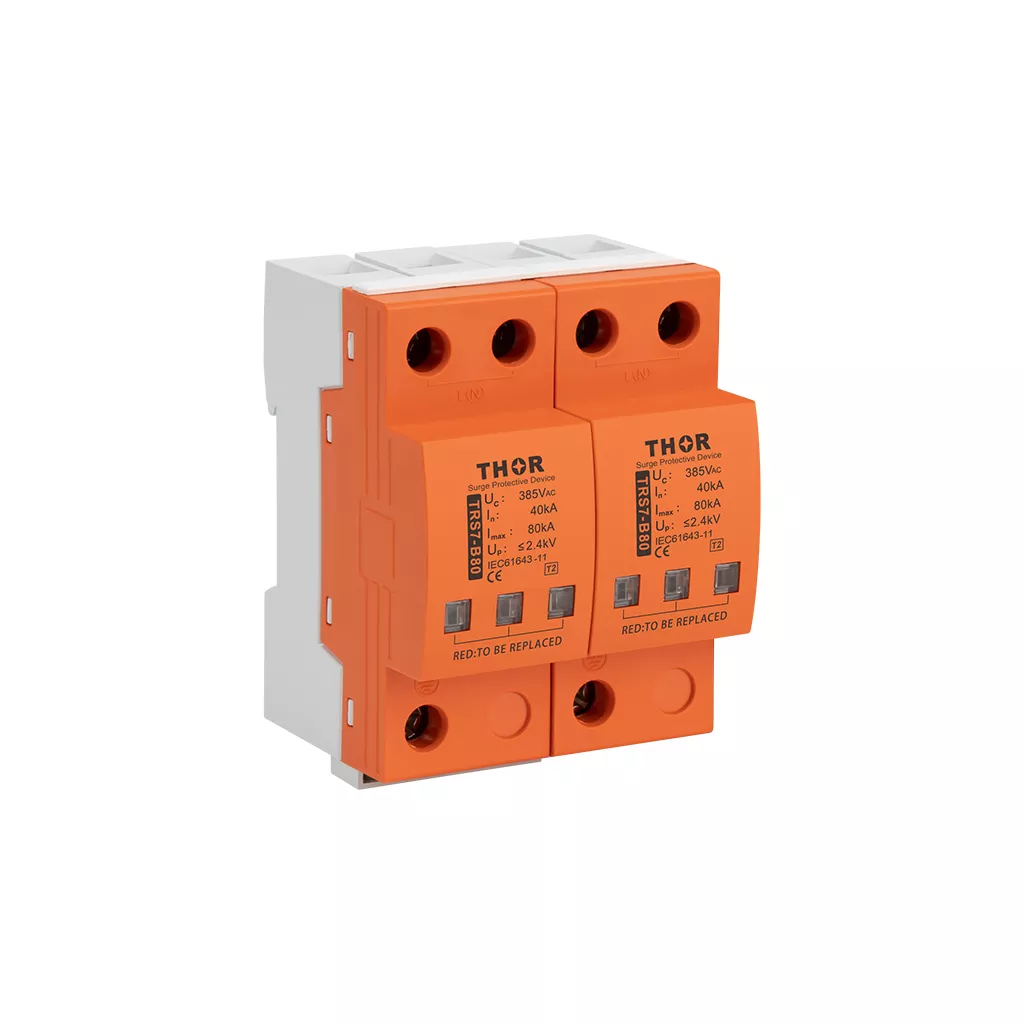

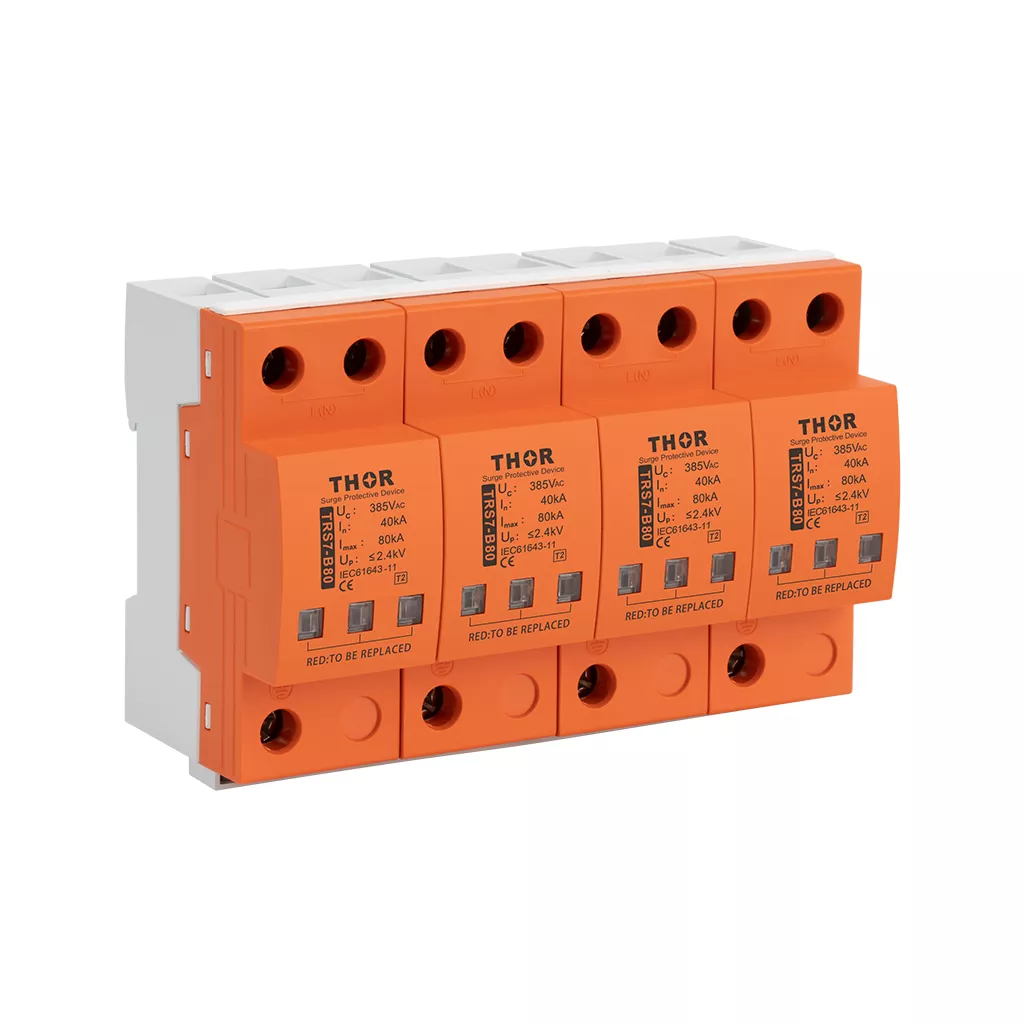

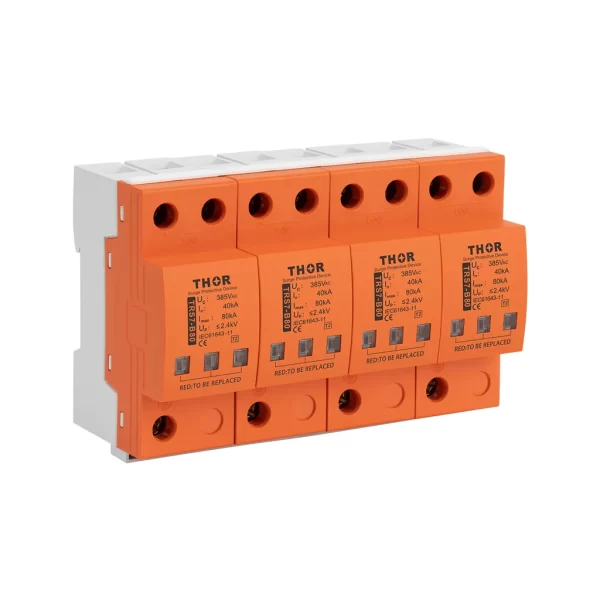

Type 2 AC Surge Protective Device TRS7-B80
Main Features
- Nominal discharge current (8/20μs) In: 40kA
- Maximum discharge current (8/20μs) Imax: 80kA
- Network Systems: TN-S, TT, TN-C-S
- Mode of Protection: L-PE, N-PE
- IEC/EN Category: Class II / Type 2
- Protective Elements: High Energy MOV
- Housing: Pluggable design
- Application: Sub-Distribution Board
- Compliance: EN 61643-11:2012, IEC 61643-11:2011/T2
The TRS7-B80 is a robust Type 2 AC surge protective device designed for 380V low-voltage distribution networks. Built for use in sub-distribution panels, it provides a strong defensive layer against switching surges and indirect lightning effects, ensuring stable protection for downstream electrical equipment.
Using a high-performance MOV protection module, the TRS7-B80 delivers consistent surge suppression suitable for environments with frequent electrical disturbances.
Its pluggable-module design allows fast replacement during maintenance, minimizing downtime and simplifying service work in both new installations and retrofit projects.
The device incorporates a clear red visual status indicator for immediate fault identification, while optional potential-free remote signaling enables integration with monitoring or building-management systems.
Its compact form factor, IP20 enclosure, and DIN-rail mounting make it easy to deploy inside standard distribution cabinets.
Engineered for long-term stability, the TRS7-B80 maintains reliable operation across wide temperature and humidity ranges, making it suitable for residential buildings, commercial facilities, and light-industrial power networks.
Applications
Sub-distribution boards in residential, commercial, and industrial buildings
Secondary surge protection in multi-stage SPD systems
Electrical networks with motors, pumps, HVAC units, or switching-heavy loads
Lighting and general-purpose branch circuits
Installations requiring visual fault indication and optional remote monitoring
Systems where quick module replacement improves maintenance efficiency
| Model | TRS7-B80 | TRS7-B100 | TRS7-B120 | TRS7-B150 |
| Nominal volatge (Un) | 380 V AC | |||
| Maximum operating voltage (Uc) | 385 V AC | |||
| Nominal discharge current (8/20μs) (In) | 40 kA | 60 kA | 80 kA | 100 kA |
| Maximum discharge current (8/20μs)( Imax) | 80 kA | 100 kA | 120 kA | 150 kA |
| Voltage protection level (Up) | ≤ 2,4 kV | ≤ 2,5 kV | ≤ 3,0 kV | ≤ 3,5 kV |
| Response time( ta) | < 25ns | |||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | |||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | |||
| Fault indication | red indication field | |||
| Remote indication | potential-free change-over contact | |||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | |||
| Cross-section of remote indication conductors | 1,5 mm2 | |||
| Degree of protection | IP20 | |||
| Range of operating temperatures (min/max) | -40℃~+70℃ | |||
| Humidity range | 5%~95% | |||
| Mounting | DIN rail 35 mm | |||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T2 | |||
| Remarks | Other Uc can be customized.(420V AC, 275V AC, 320V AC, etc.) | |||
Rotate the 3D model to inspect the surge protective device from different angles. For detailed technical specifications, electrical ratings and installation information, please refer to the other tabs.
